Wiring

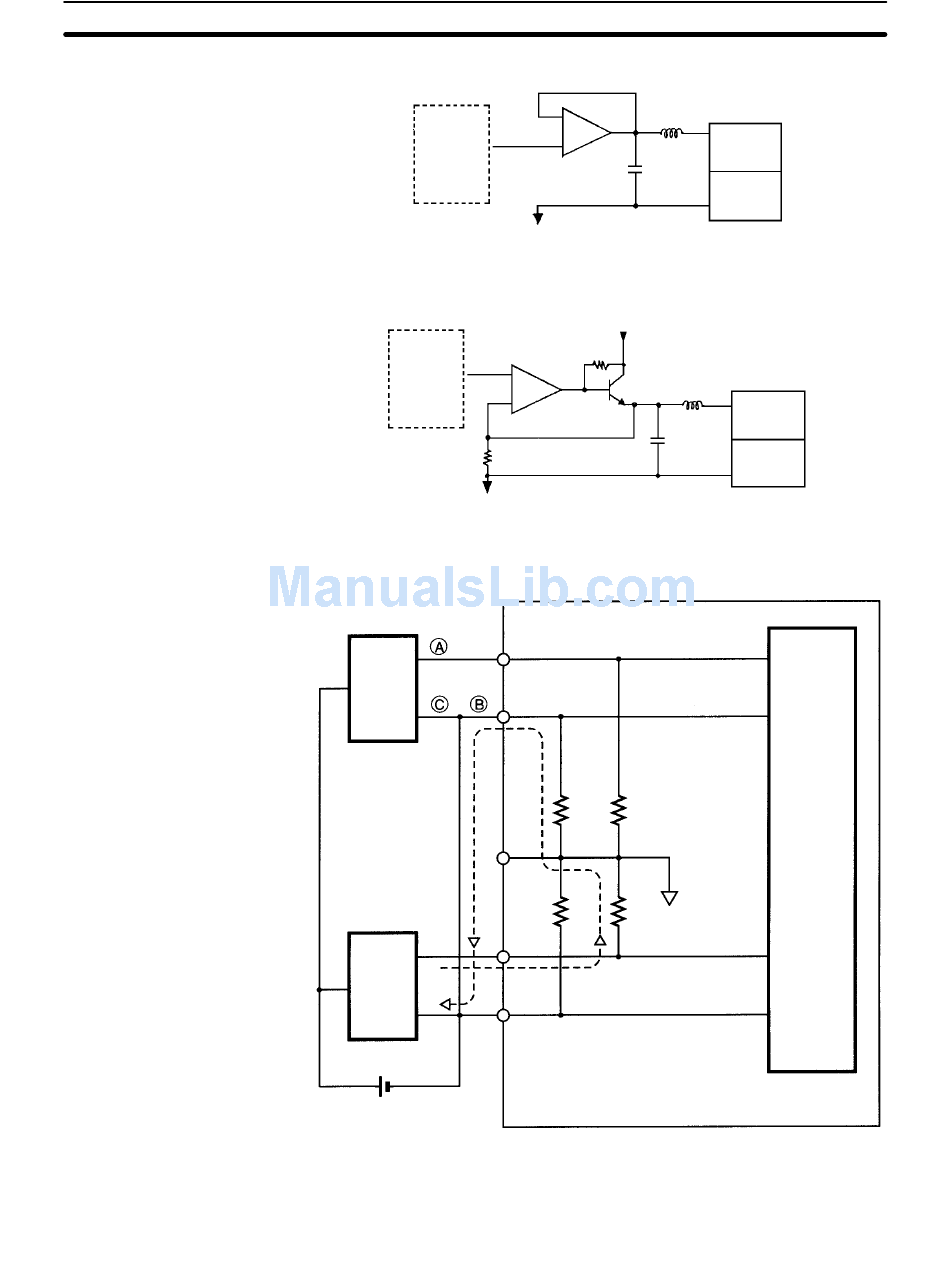

Output Circuitry (Voltage Output)
Output Circuitry (Current Output)

4-3-3 Line Breakage while Using Voltage Input

Output
switch and
conversion
circuit
Output
switch and
conversion
circuit
Con-
nected
device
1
Con-
nected
device
2
24 VDC
Note If the power supply is shared by two channels as shown above, while the con-
nected device 2 outputs 5 V, approximately 1.6 V (one-third of the output volt-
age) is generated in input 1.
AMP
AG (common to all outputs)
Internal power supply
AMP
AG (common to all outputs)
Section 4-3
Voltage
output (+)
Voltage
output (–)
Current
output (+)
Current
output (–)
