Error Processing

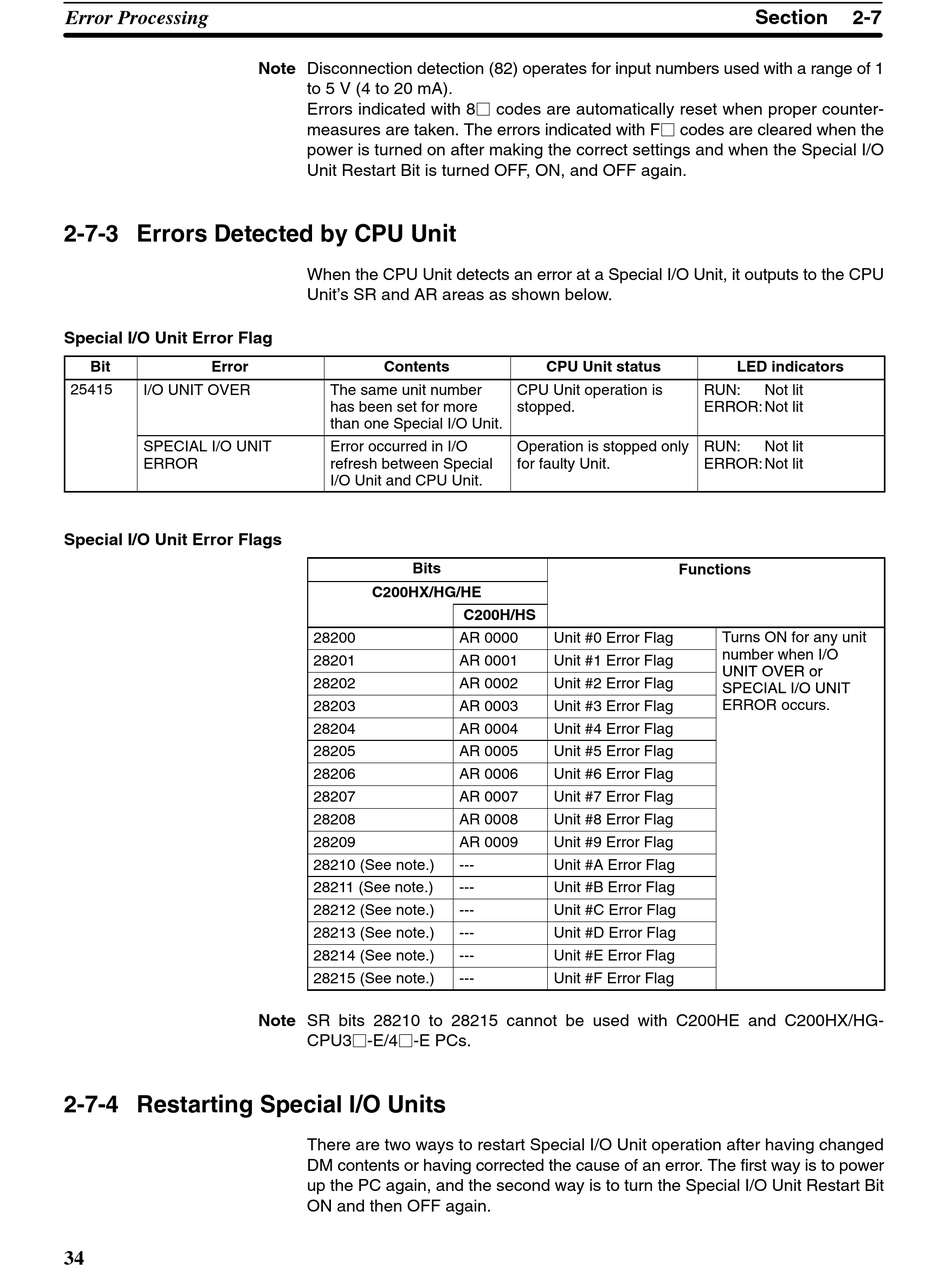

2-7-3 Errors Detected by CPU Unit

Special I/O Unit Error Flag
Bit Error
25415
I/O UNIT OVER
SPECIAL I/O UNIT
ERROR
Special I/O Unit Error Flags

2-7-4 Restarting Special I/O Units

34
Note Disconnection detection (82) operates for input numbers used with a range of 1
to 5 V (4 to 20 mA).
Errors indicated with 8j codes are automatically reset when proper counter-
measures are taken. The errors indicated with Fj codes are cleared when the
power is turned on after making the correct settings and when the Special I/O
Unit Restart Bit is turned OFF, ON, and OFF again.
When the CPU Unit detects an error at a Special I/O Unit, it outputs to the CPU
Unit's SR and AR areas as shown below.
Contents
The same unit number
has been set for more
than one Special I/O Unit.
Error occurred in I/O
refresh between Special
I/O Unit and CPU Unit.
Bits
C200HX/HG/HE
28200
28201
28202
28203
28204
28205
28206
28207
28208
28209
28210 (See note.)
28211 (See note.)
28212 (See note.)
28213 (See note.)
28214 (See note.)
28215 (See note.)
Note SR bits 28210 to 28215 cannot be used with C200HE and C200HX/HG-
CPU3j-E/4j-E PCs.
There are two ways to restart Special I/O Unit operation after having changed
DM contents or having corrected the cause of an error. The first way is to power
up the PC again, and the second way is to turn the Special I/O Unit Restart Bit
ON and then OFF again.
CPU Unit status
CPU Unit operation is
stopped.
Operation is stopped only
for faulty Unit.
C200H/HS
AR 0000 Unit #0 Error Flag
AR 0001 Unit #1 Error Flag
AR 0002 Unit #2 Error Flag
AR 0003 Unit #3 Error Flag
AR 0004 Unit #4 Error Flag
AR 0005 Unit #5 Error Flag
AR 0006 Unit #6 Error Flag
AR 0007 Unit #7 Error Flag
AR 0008 Unit #8 Error Flag
AR 0009 Unit #9 Error Flag
--- Unit #A Error Flag
--- Unit #B Error Flag
--- Unit #C Error Flag
--- Unit #D Error Flag
--- Unit #E Error Flag
--- Unit #F Error Flag
Section 2-7
LED indicators
RUN: Not lit
ERROR: Not lit
RUN: Not lit
ERROR: Not lit
Functions
Turns ON for any unit y
number when I/O b h I/O
UNIT OVER or UNIT OVER or
SPECIAL I/O UNIT SPECIAL I/O UNIT
ERROR occurs.
