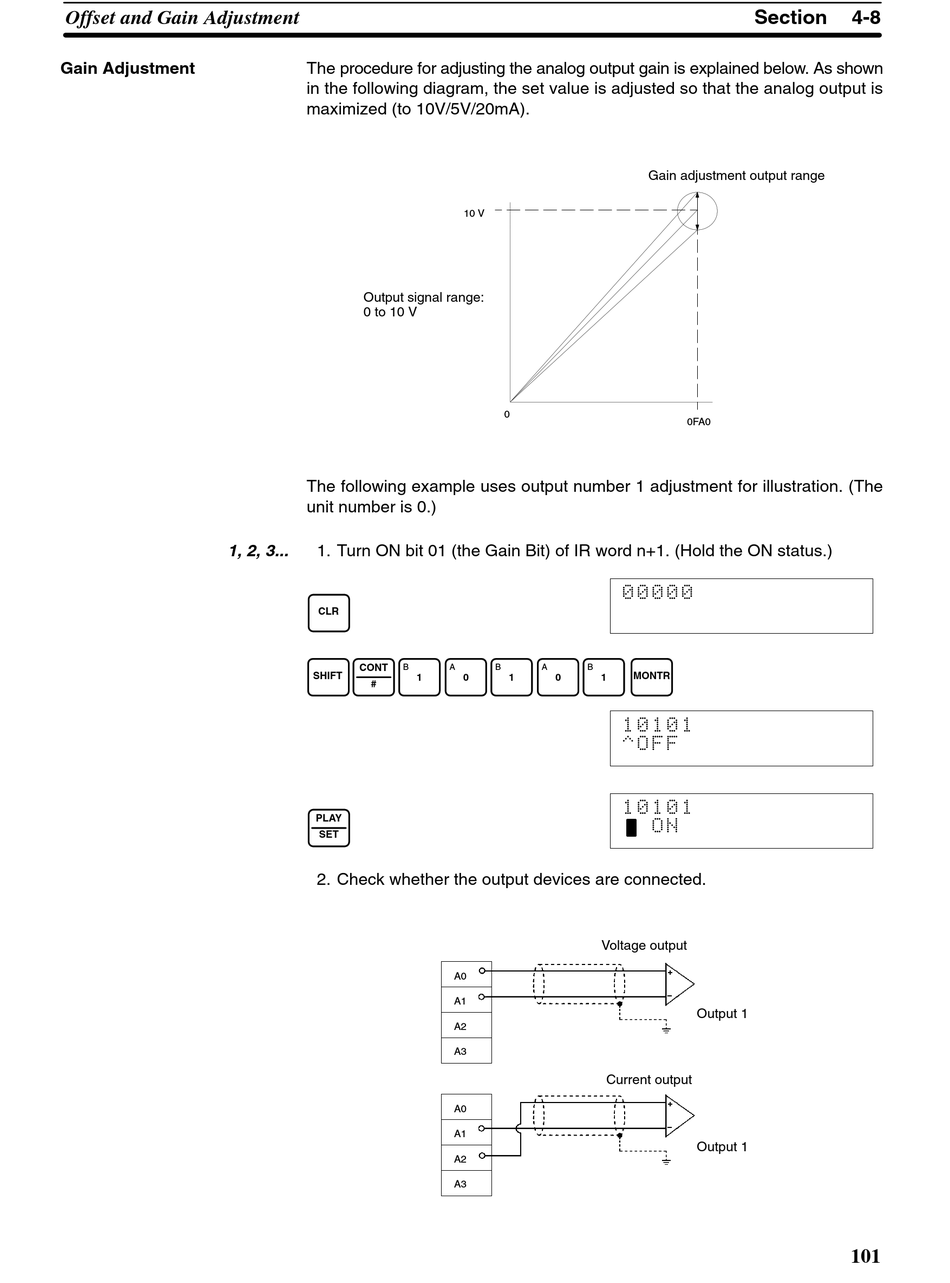

Offset and Gain Adjustment
Gain Adjustment
1, 2, 3...
The procedure for adjusting the analog output gain is explained below. As shown
in the following diagram, the set value is adjusted so that the analog output is
maximized (to 10V/5V/20mA).
10 V
Output signal range:
0 to 10 V
The following example uses output number 1 adjustment for illustration. (The
unit number is 0.)
1. Turn ON bit 01 (the Gain Bit) of IR word n+1. (Hold the ON status.)
CLR
CONT B A
SHIFT
1 0
#
PLAY
SET
2. Check whether the output devices are connected.
A0
A1
A2
A3
A0
A1
A2
A3
Gain adjustment output range
0
00000
B A B
MONTR
1 0 1
10101
^OFF
10101
ON
Voltage output
Current output
Section 4-8
0FA0
Output 1
Output 1
101
