MTP 1500RL 15HD A SEQ • Setup Guide

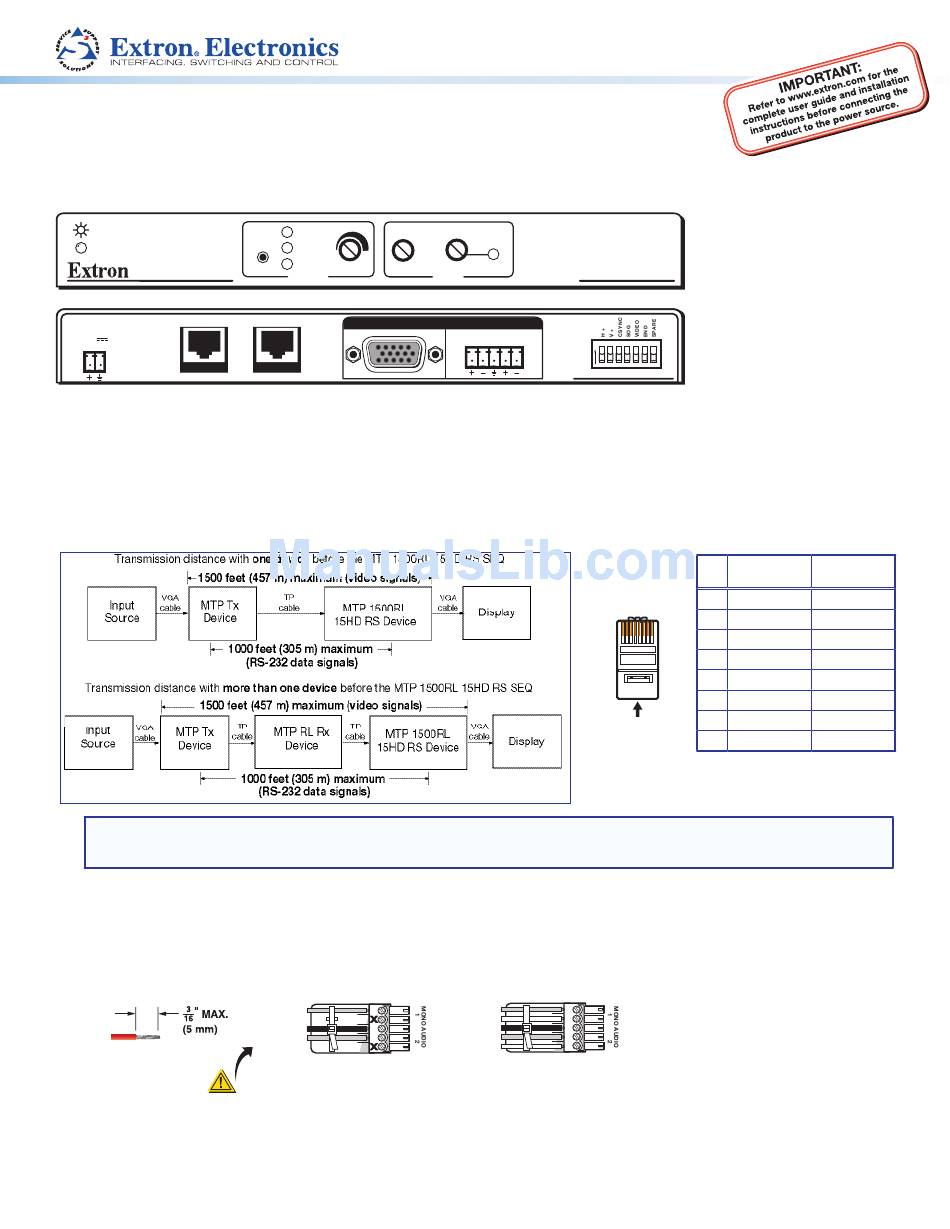

This guide provides basic instructions for an experienced installer to set up and operate the Extron MTP 1500RL
15HD A SEQ twisted pair receiver.
For full details, see the MTP 1500RL 15HD A SEQ User Guide, available online at
INPUT
POWER
12V
1.0A MAX
MTP

Installation and Setup

Step 1 — Mounting
Turn off or disconnect all equipment power sources. Mount the MTP 1500RL 15HD A SEQ receiver as required.
Step 2 — Connect Input
Connect the RJ-45 cable from an MTP transmitter to the Input port on the MTP 1500RL 15HD A SEQ receiver.
Terminate the cable as shown below right, using the same standard (A or B) at both ends.
NOTE: The transmitter and receiver are designed for and perform best with Extron Enhanced Skew-Free AV cable terminated in accordance
with the TIA/EIA T568A standard. CAT 5 cables are acceptable but less preferable. Using preterminated and tested cables is also
recommend, Cables terminated on site should be tested before use to ensure that they comply with Category 5 specifications.
Step 3 — Connect Outputs
Attach the applicable output cables (video, audio, and buffered output).
A. High resolution video output — Connect a display device to the 15-pin HD connector (RGB).
Audio connector — Connect an audio device to the 5-pole captive screw connector for mono audio output
B.
Do not tin the wires!
C. Buffered output — Connect up to 5 daisy-chained MTP receivers to this RJ-45 connector.
RED
LEVEL
SELECT
GREEN
BLUE
ADJUST
DELAY
BUFFERED OUTPUT
MTP
Mono output 1
NO GROUND.
Sleeve(s)
Mono output 2
NO GROUND.
Unbalanced Output
CAUTION
For unbalanced audio, connect the sleeve(s) to the ground contact.
DO NOT connect the sleeves to the negative (-) contacts.
www.extron.com
PEAKING
MIN/MAX
MTP 1500RL Series
RGB
OUTPUT
AUDIO
MONO
L R
ON
MTP 1500RL 15HD A SEQ
RJ-45 Connector
Mono output 1+
Mono output 1-
Sleeve(s)
Mono output 2+
Mono output 2-
Balanced Output
.
Pin T568A Wire
Color
1 White-green
Pins:
12345678
2 Green
3 White-orange
4 Blue
5 White-blue
6 Orange
7 White-brown
Insert Twisted
Pair Wires
8 Brown
T568B Wire
Color
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
