Extron electronics MTP 1500RL Series Setup Manual

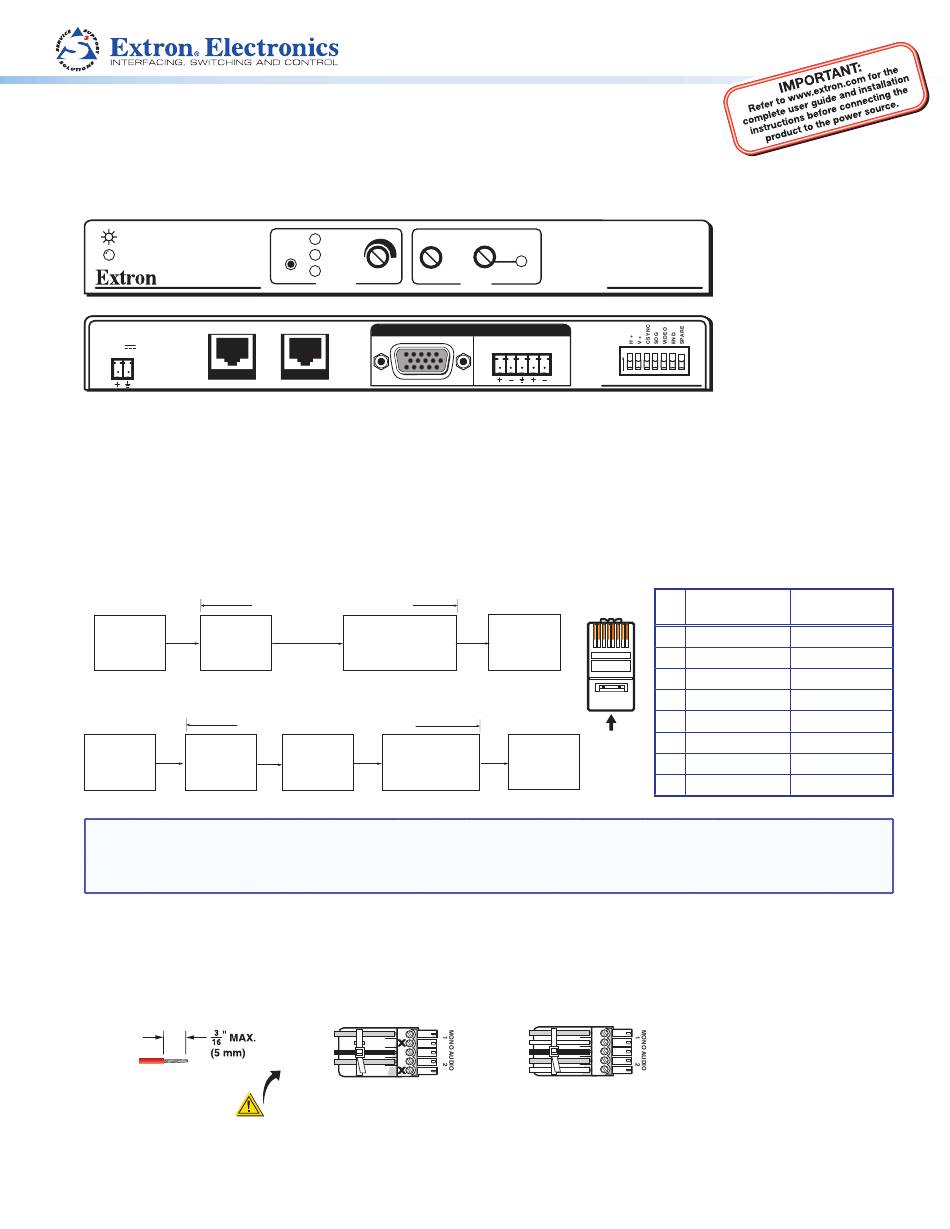

MTP 1500RL 15HD A SEQ • Setup Guide
This guide provides basic instructions for an experienced installer to set up and operate the

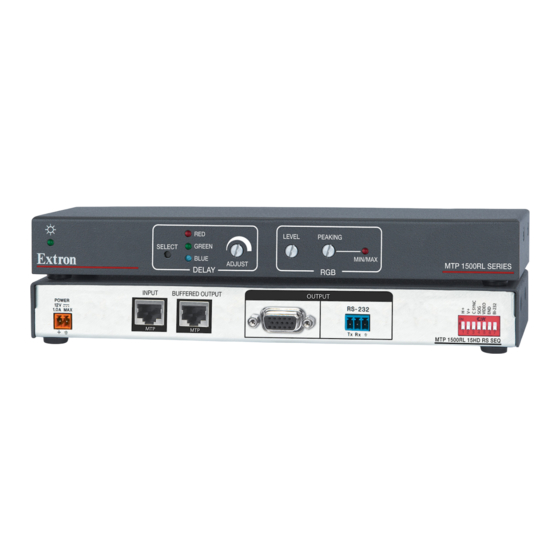

Extron MTP 1500RL 15HD A SEQ twisted pair receiver.
For full details, see the MTP 1500RL 15HD A SEQ User Guide, available online at www.extron.com.
INPUT
POWER
12V
1.0A MAX
MTP
Installation and Setup
Step 1 — Mounting
Turn off or disconnect all equipment power sources. Mount the MTP 1500RL 15HD A SEQ receiver as required.
Step 2 — Connect input
Connect the RJ-45 cable from an MTP transmitter to the Input port on the MTP 1500RL 15HD A SEQ receiver.
Terminate the cable as shown below right, using the same standard (A or B) at both ends.
Transmission distance with one device before the MTP 1500RL 15HD A SEQ
VGA
Input MTP Tx
cable
Source Device
Transmission distance with more than one device before the MTP 1500RL 15HD A SEQ
VGA
Input MTP Tx
cable
Source Device
NOTE: The transmitter and receiver are designed for and perform best with Extron Enhanced Skew-Free
terminated in accordance with the TIA/EIA T568A standard. CAT 5 cables are acceptable but less preferable.
Using preterminated and tested cables is also recommended. Cables terminated on site should be tested before
use to ensure that they comply with Category 5 specifications.
Step 3 — Connect outputs
Attach the applicable output cables (video, audio, and buffered output).
High resolution video output — Connect a display device to the 15-pin HD connector (RGB).
a.
Audio connector — Connect an audio device to the 5-pole captive screw connector for mono audio output
b.
Do not tin the wires!
Buffered output — Connect up to 5 daisy-chained MTP receivers to this RJ-45 connector.
c.
RED
LEVEL
SELECT
GREEN
BLUE
ADJUST
DELAY
BUFFERED OUTPUT
MTP
1500 feet (457 m) maximum
TP
MTP 1500RL
cable
15HD A Device
1500 feet (457 m) maximum
TP TP
MTP RL Rx
MTP 1500RL
cable cable
Device
15HD A Device
Mono output 1
NO GROUND.
Sleeve(s)
Mono output 2
NO GROUND.
Unbalanced Output
CAUTION
For unbalanced audio, connect the sleeve(s) to the ground contact.
DO NOT connect the sleeve(s) to the negative (-) contacts.
CONTINUED ON SIDE 2
PEAKING
MIN/MAX
MTP 1500RL Series
RGB
OUTPUT
AUDIO
MONO
L R
ON
MTP 1500RL 15HD A SEQ
RJ-45 Connector
Pins:
12345678
VGA
cable
Display
Insert Twisted
VGA
Pair Wires
cable
Display
Mono output 1+
Mono output 1-
Sleeve(s)
Mono output 2+
Mono output 2-
Balanced Output
Pin T568A Wire T568B Wire
Color Color
1 White-green White-orange
2 Green Orange
3 White-orange White-green
4 Blue Blue
5 White-blue White-blue
6 Orange Green
7 White-brown White-brown
8 Brown Brown
AV cable
™
