11.98
Replacing modules in the electronics box
(option)
♦ Undo the securing screws of the modules
above and below the insertion /removal aids
♦ By means of the insertion /removal aids,
carefully pull the module out of the
electronics box, making sure that the
module does not get stuck
♦ Carefully insert the new module in the guide
rails until it moves no further in the
electronics box
♦ Firmly screw down the module with the
securing screws above and below the
insertion / removal aids.
8.2.3

Replacing bridge rectifiers V1

The bridge rectifier is secured with self-tapping screws. When replacing the bridge rectifier, it is imperative to
use original-length screws with locking elements to secure it.
Also use original-length screws when screwing the bridge rectifier to the connecting cables.
Siemens AG 6SE7087-6AC85-0AA0
Common Rectifier Operating instructions
S lo t 1 (P S R )
S lo t 3 (o p tio n s )
S lo t 2 (o p tio n s )

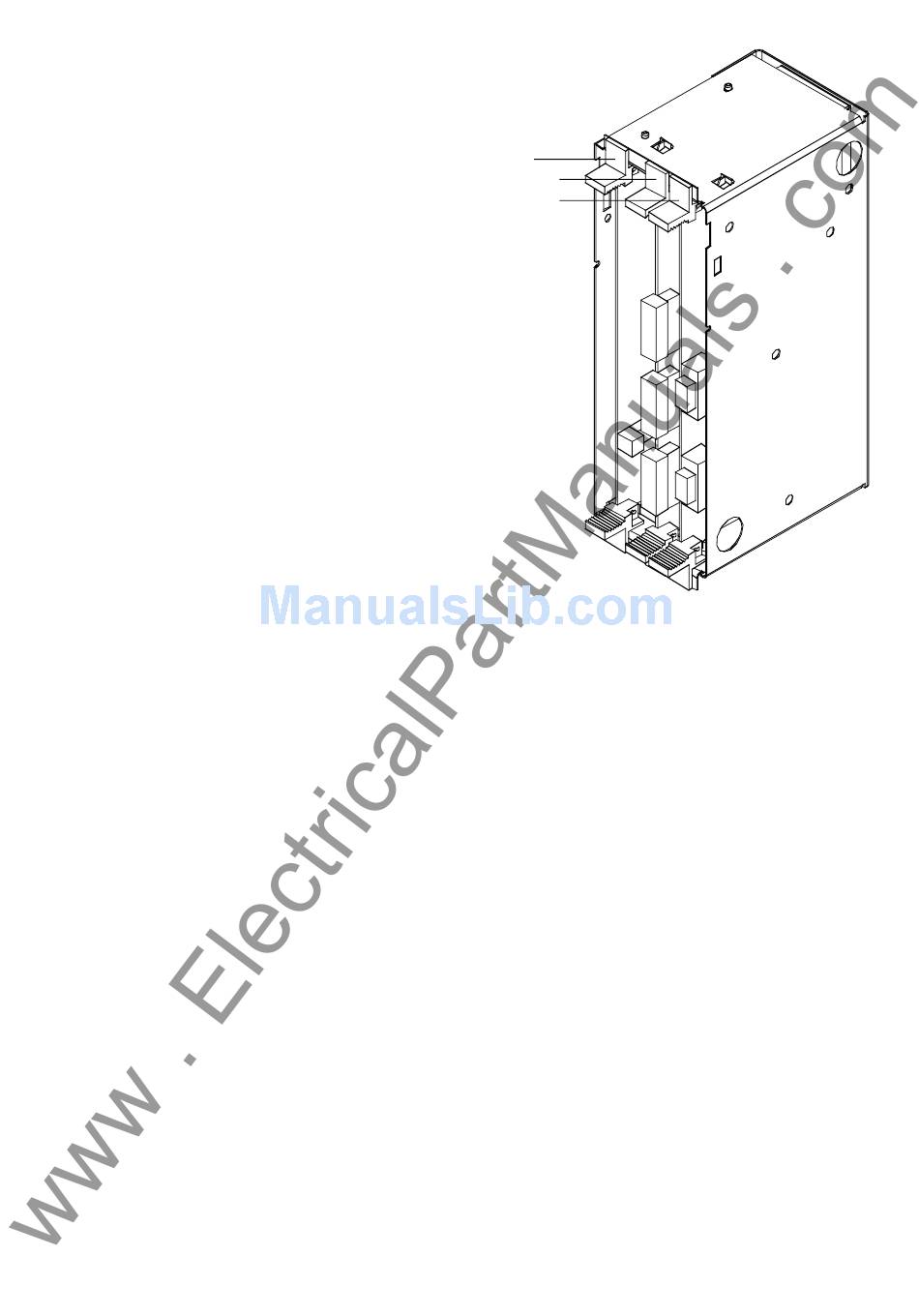

Figure 8.2 Electronics box, equipped with PSR (slot 1)
and options (slots 2 and 3)
Maintenance
8-3
