2
PANEL DESCRIPTION

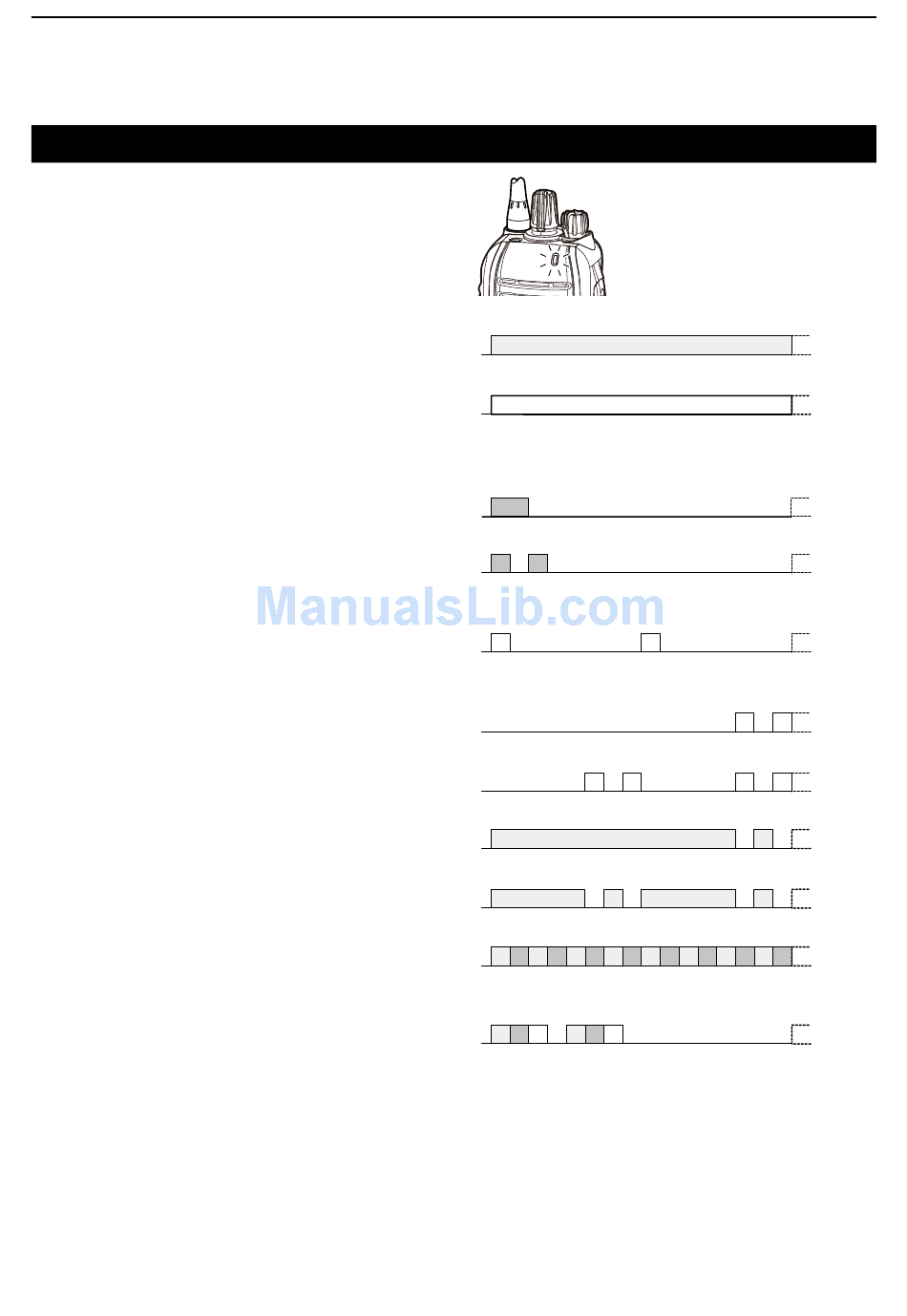

Status indicator
The status indicator indicates the various parameters
of the transceiver as described below.
(Reference: R is Red, G is Green, O is Orange)
• TX:
Lights Red while transmitting.
• RX busy:
On an analog channel, lights Green when the noise
squelch opens. On a digital or mixed channel, lights
Green while detecting a frame synchronization.
• Call LED:
Turns ON or blinks* when receiving a matched 2/5-
Tone, or a Call Alert.
*Depending on the presetting.
• Fast or Slow scan:
Blinks when scanning for a channel to search for a
signal.
• Low Battery 1:
You should charge the battery soon. (blinks slowly)
• Low Battery 2:
You must charge the battery. (blinks fast)
• TX low Battery 1:
Low Battery was detected in the TX mode.
• TX low Battery 2:
Very Low Battery was detected in the TX mode.
• Channel Error:
Continuously blinks when a non-programmed chan-
nel is selected.
• Power ON:
Blinks at transceiver startup.
(When turns ON)
O
(When blinks)
O O
G
G
R
R R
R O R O R O R O R O R O R O R O
R O G R O G
2-3
R
G
G
G G
G G G
R
R R
