Cleaning, Storage And Transport; Technical Data - Trotec MD200 Operating Manual

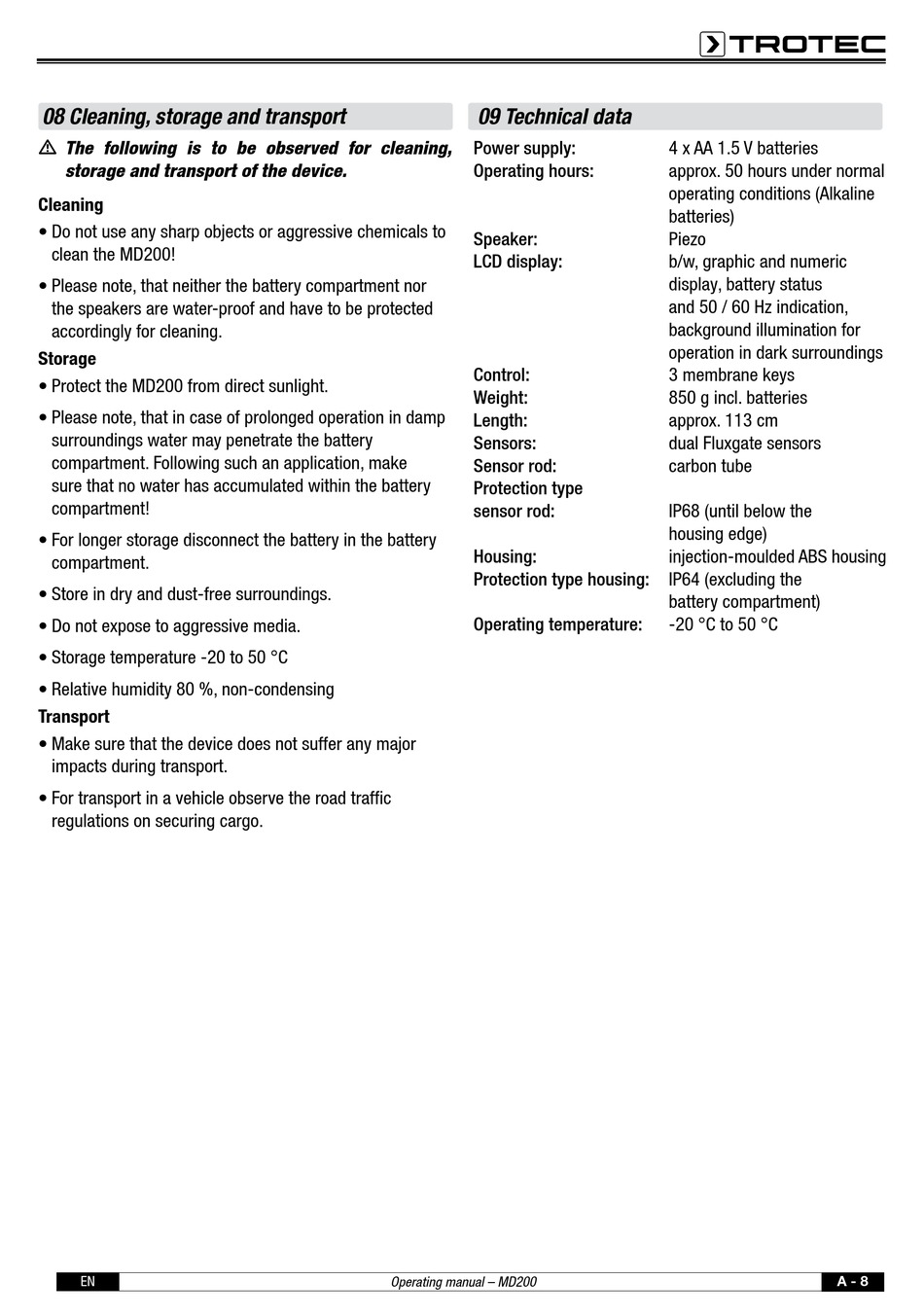

08 Cleaning, storage and transport

m The following is to be observed for cleaning,
storage and transport of the device.
Cleaning
• Do not use any sharp objects or aggressive chemicals to
clean the MD200!
• Please note, that neither the battery compartment nor
the speakers are water-proof and have to be protected
accordingly for cleaning .
Storage
• Protect the MD200 from direct sunlight .
• Please note, that in case of prolonged operation in damp
surroundings water may penetrate the battery
compartment . Following such an application, make
sure that no water has accumulated within the battery
compartment!
• For longer storage disconnect the battery in the battery
compartment .
• Store in dry and dust-free surroundings .
• Do not expose to aggressive media .
• Storage temperature -20 to 50 °C
• Relative humidity 80 %, non-condensing
Transport
• Make sure that the device does not suffer any major
impacts during transport .
• For transport in a vehicle observe the road traffic
regulations on securing cargo .
EN

09 Technical data

Power supply:
Operating hours:
Speaker:
LCD display:
Control:
Weight:
Length:
Sensors:
Sensor rod:
Protection type
sensor rod:
Housing:
Protection type housing: IP64 (excluding the
Operating temperature:
Operating manual – MD200
4 x AA 1 .5 V batteries
approx . 50 hours under normal
operating conditions (Alkaline
batteries)
Piezo
b/w, graphic and numeric
display, battery status
and 50 / 60 Hz indication,
background illumination for
operation in dark surroundings
3 membrane keys
850 g incl . batteries
approx . 113 cm
dual Fluxgate sensors
carbon tube
IP68 (until below the
housing edge)
injection-moulded ABS housing
battery compartment)
-20 °C to 50 °C
A - 8
