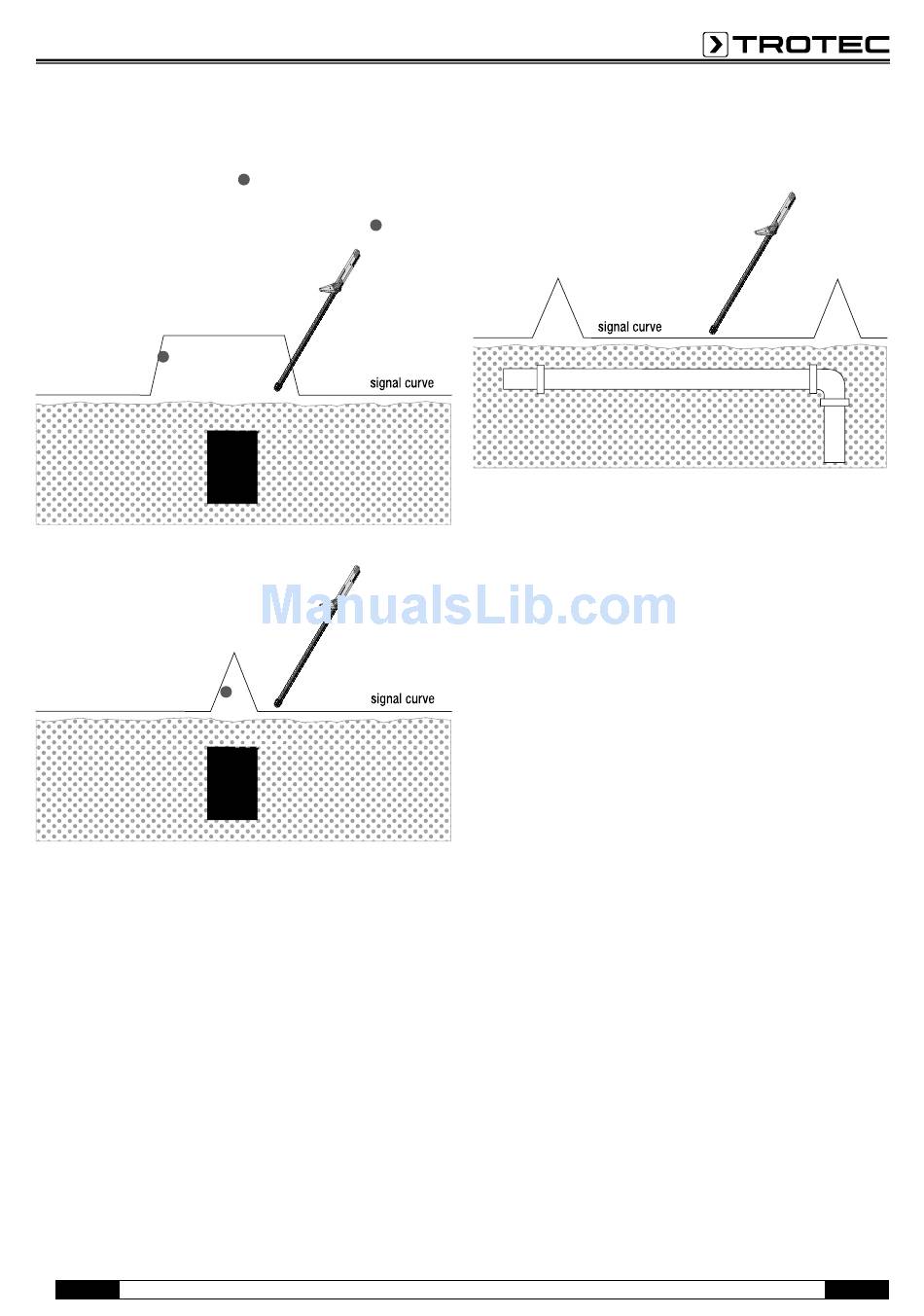

Point objects in upright position
If the sensitivity of the metal detector is set too high or the
object in the ground very large, the signal deflection will
be at a max over a larger
sensitivity to detect the position with the absolute
maximum -> this is where the object is located
1
EN
area . Gradually reduce the
1
!
2
99
Signalverlauf
99
2
Signalverlauf
Metal pipes
The joints, elbows, sleeves and end fittings will cause the
strongest signal deflection .
99
Live wires
The device recognizes live wires of a certain radiated
field strength . By means of a defined measuring rate the
device during measuring checks, whether the object is a live
wire . This results in a response time of up to one second .
This is to prevent permanent 50 Hz alarms under specific
measuring conditions . An insufficient field strength or
excessive insulation of the live wire may lead to the line not
being detected!
Operating manual – MD200
