Introduction, Theory Of Object Detection - Trotec MD200 Operating Manual

MD200 soft carrying case incl . 4 x AA batteries and
operating manual

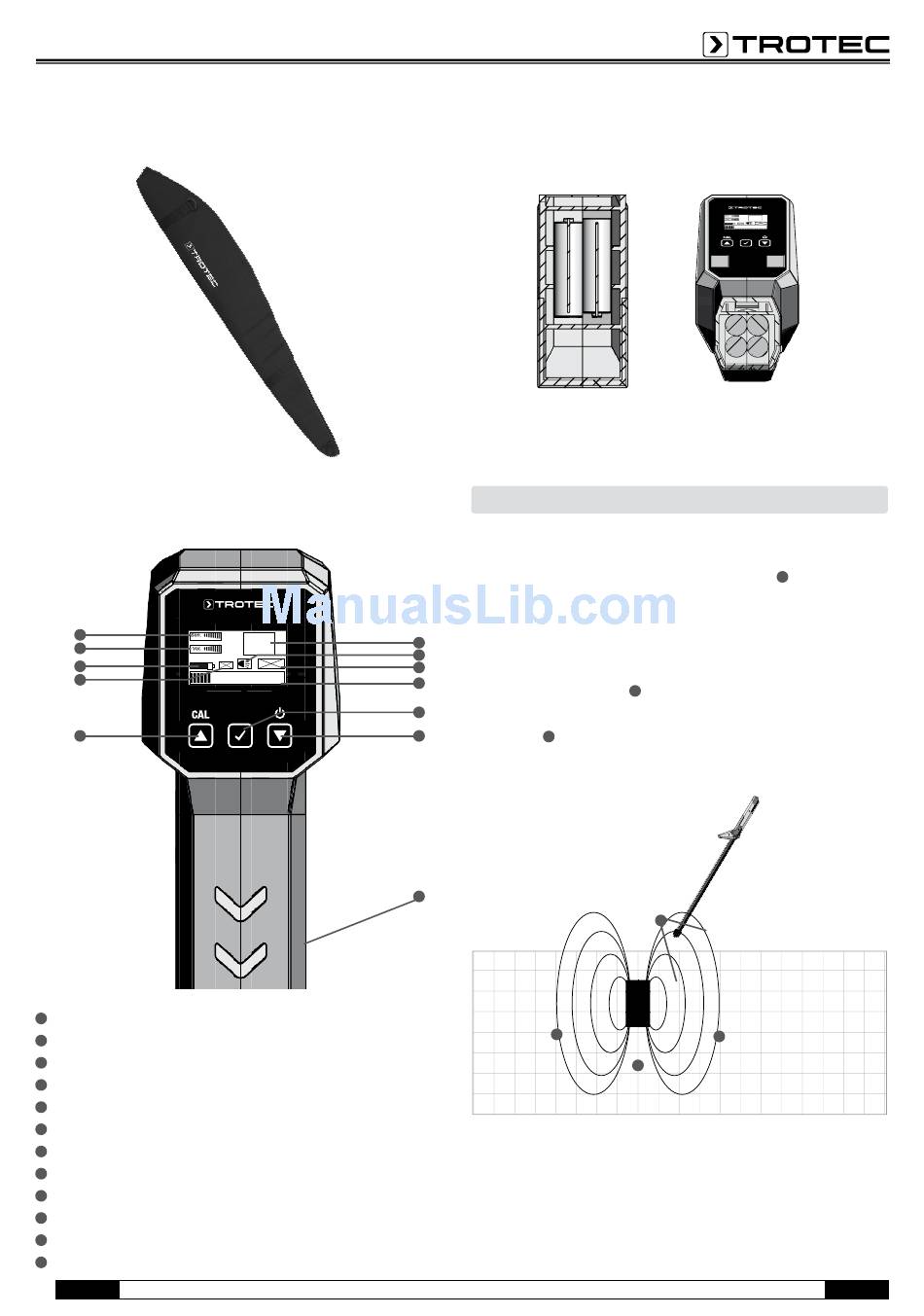

3.2 Display and operating functions
1
2
3
4
5
sensitivity
1
volume
2
battery status
3
calibration
4
+ key (Up) and Erase function
5
numeric signal strength display
6
display illumination
7
"50 Hz" indication
8
graphic signal strength display
9
menu selection and confirmation key
10
- key (Down) and On/Off function
11
speaker
12
EN
MD200 MD200
99
50 Hz
50 Hz
CAL
MADE IN GERMANY
MADE IN GERMANY
3.3 Battery compartment
The battery compartment can easily be opened by use of a
coin or another pointed tool (screw driver, knife) .
The holder for 4x AA batteries can completely be removed
from the compartment . Hence, the batteries can be changed
unproblematically .

04 Introduction, theory of object detection

The MD200 locates ferromagnetic objects by detecting
their influence on the Earth's magnetic field . The sensor
rod comprises two "Fluxgate" sensors
measuring the Earth's magnetic field at a certain distance
and exact angle to one another . If the Earth's magnetic
field is undisturbed, the flux lines are running parallel
6
7
and both sensors measure the same signal . If there is a
8
9
ferromagnetic object
influences the Earth's magnetic field and deflects the
10
flux lines . This deflection is more apparent in the lower
11
3
Fluxgate sensor than in the upper one, which leads to a
deviation of the electrical signal and can be measured .
12
3
The bigger the object and the closer you are to it, the more
noticeable the deflection .
Operating manual – MD200
MD200
99
50 Hz
50 Hz
CAL
MADE IN GERMANY
continuously
1
buried in the ground, this object
2
1
3
2
A - 2
