Cylinder - Sectional view (H.40.B.26 - C.10.A.30)

435, 445, 445CT

1. Tube
2. Washer
3. Bolt
4. Piston
5. Backup ring
WORKING ARM - SINGLE ARM Lift
1
BT97F008

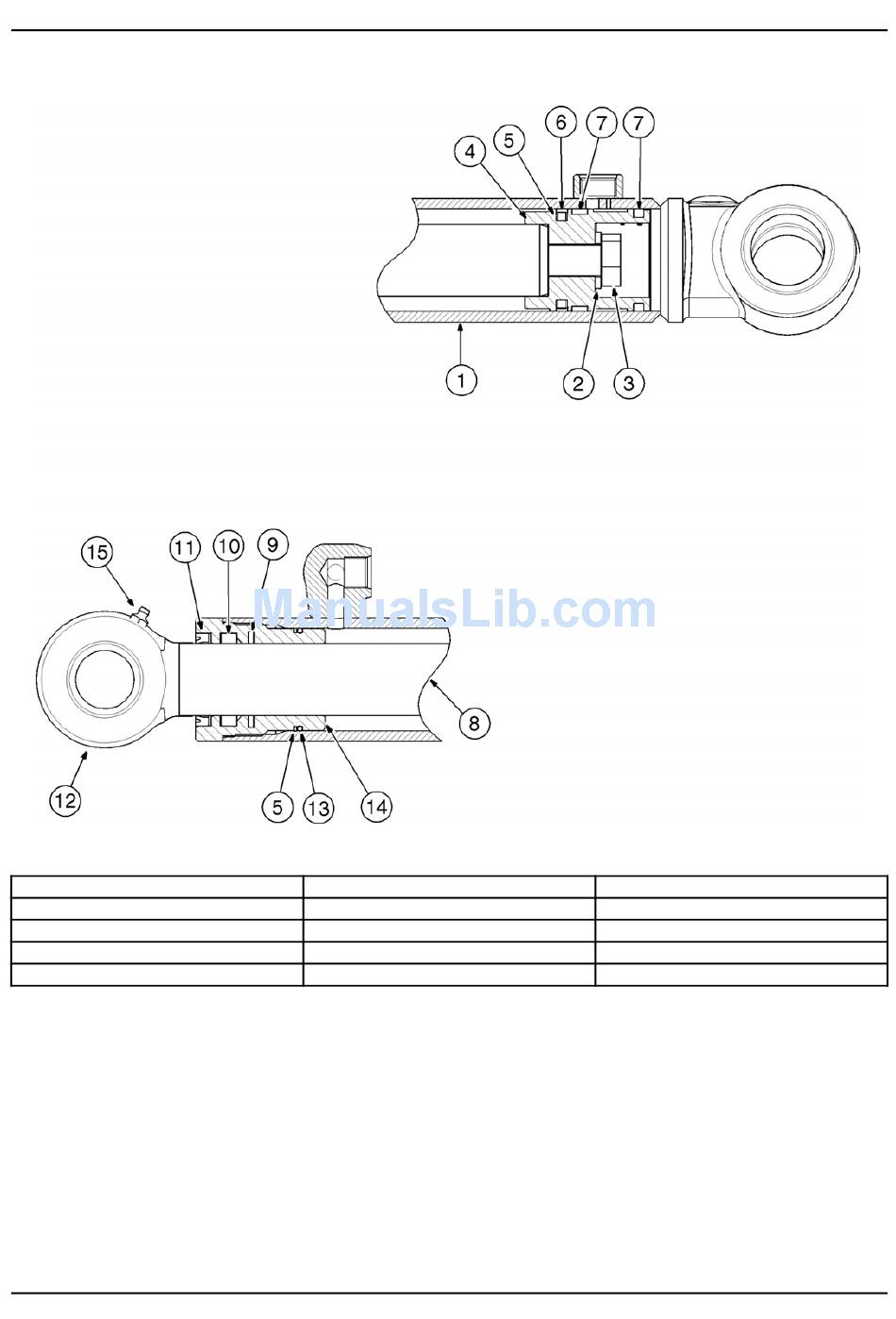

Cross Section View of Lift Cylinder
6. Seal
7. Wear ring
8. Piston rod
9. Backup seal
10. O-ring
1 04/05/2005
H.40.B / 7
11. Wiper
12. Piston rod end
13. O-ring
14. Packing gland
15. Grease fitting
