Cylinder - Visual inspection (H.40.B.26 - F.40.A.10)

435, 445, 445CT

1. Tube
2. Bushing
3. Piston rod
4. Bushing
5. Packing gland
6. Piston
1. Clean the piston (6), packing gland (5), piston rod
(3), tube (1), washer (15), and bolt (16) in cleaning
solvent.
2. Illuminate the inside of the tube (1). Inspect the
inside of the tube for deep grooves or other damage.
If the tube is damaged, replace with new parts as
required.
WORKING ARM - SINGLE ARM Lift
1
BT97F009

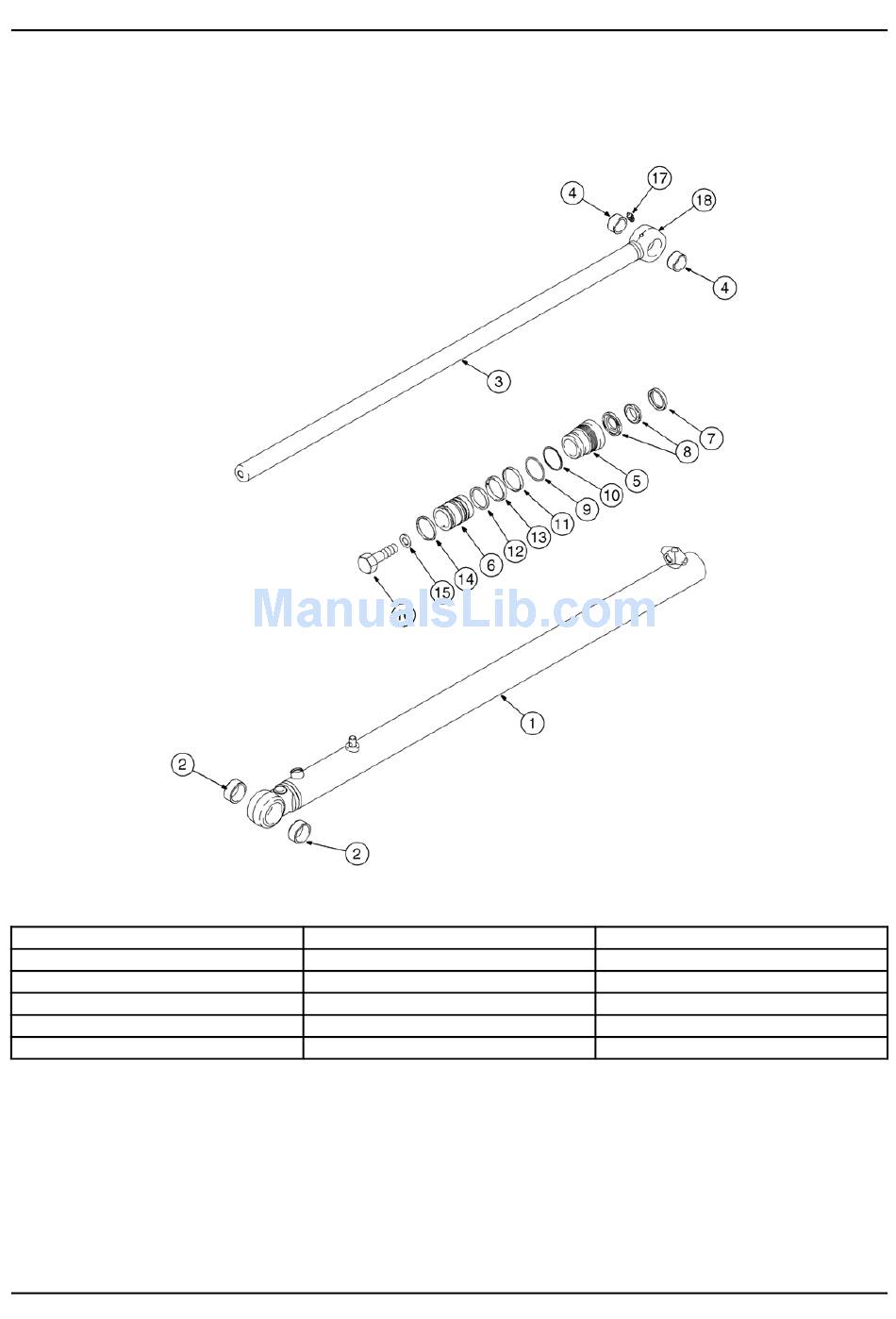

Loader Lift Cylinder
7. Wiper
8. Seal (kit)
9. Backup ring
10. O-ring
11. Seal
12. Ring
1 04/05/2005
H.40.B / 40
13. Wear ring
14. Ring
15. Washer
16. Bolt
17. Grease fitting
18. Rod end
