Accumulator - Install (H.40.B.30 - F.10.A.15)

435, 445, 445CT

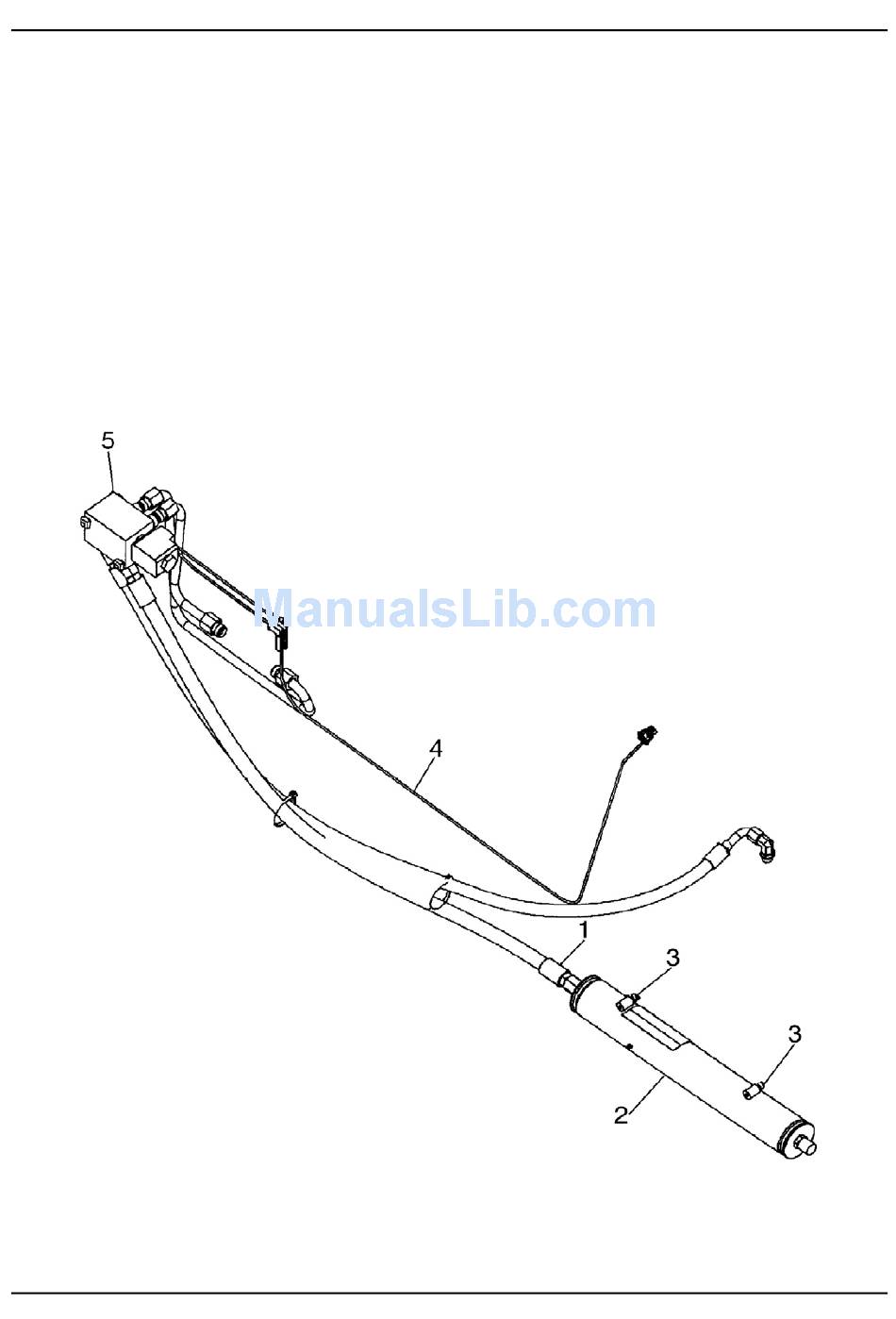

1. Install the accumulator (2) into the chassis mounting
location.
2. Install the clamps (3) around the accumulator (2)
and tighten the clamps (3).
3. Start the vacuum pump.
4. Remove the plug from the hose and the cap from
the fitting.
5. Install the hydraulic hose connection (1) onto
the accumulator (2). Tighten the hydraulic hose
connection (1).
6. Stop the vacuum pump. Remove vacuum pump
from reservoir.
WORKING ARM - SINGLE ARM Lift
1
bs04d011
1 04/05/2005
H.40.B / 47
