Accumulator - Visual inspection (H.40.B.30 - F.40.A.10)

435, 445, 445CT

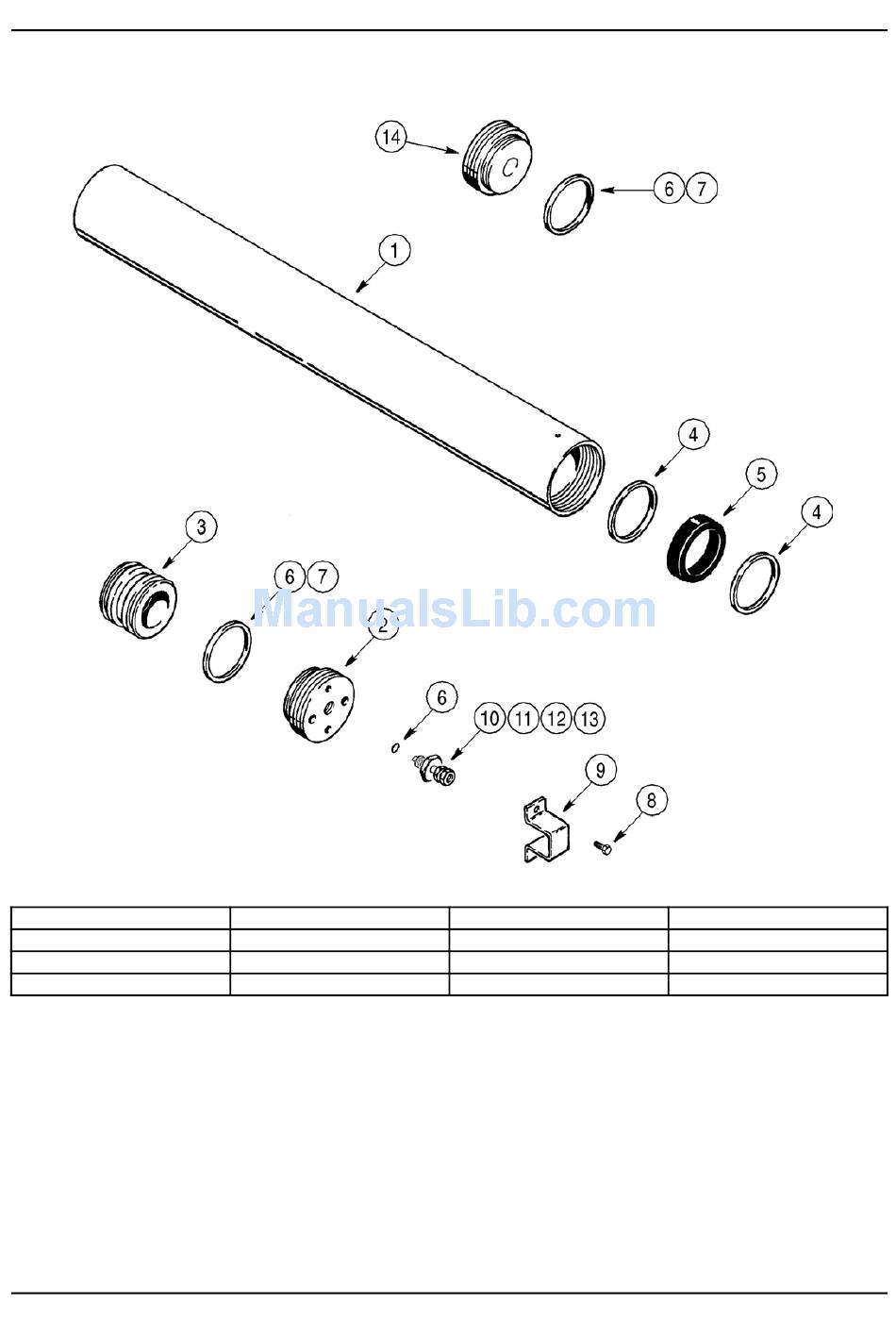

1. Tube
2. Gland with gas valve
3. Piston
4. Seal
1. Clean all parts in cleaning solvent.
2. Illuminate the inside of the tube (1). Inspect the
inside of the tube for deep grooves or other damage.
If the tube is damaged, replace with a new tube or
cylinder.
3. In a rotary motion, use an emery cloth with medium
grit to remove small scratches on the piston (3),
glands (2) and (14), and tube (1).
4. Inspect the glands (2) and (14), for rust or corrosion.
Clean and remove the rust or corrosion from the
gland.
WORKING ARM - SINGLE ARM Lift
5. Quad ring
6. O-ring
7. Backup ring (if used)
8. Cap screw
1
BS96H067
9. Guard
10. Gas valve assembly
11. Cap
12. Valve core
1 04/05/2005
H.40.B / 54
13. Body
14. Gland without gas valve
