IN3254
Installation
The IN3254 can mounted in a convenient location using the
Extron standard universal 2U rack shelf (Extron part# 60-032-01)
or optional mounting brackets (IN9081).
Turn all equipment off and ensure that the source device,
1
the DA, and the output devices have been disconnected
from the power source.
Place or install the unit in the desired location.
2
Connect the video signal source (input) device to the
3
Input connectors.
Connect the output devices to the Output connectors.
4
Apply power to output device, the DA, and the input
5
devices.
Turn on the input and output devices.
6
Set the gain and sync as needed.
7
Rack mounting
Rack mount the unit using an optional Extron 2U universal rack
shelf (Extron part #60-032-01), as follows:
1.
Remove rubber feet if they were previously installed on
the bottom of the unit.
2.
Place the DA on one side of the optional 2U (two unit high,
19" wide) rack shelf (Extron part #60-032-01). Align the
front of the DA with the front of the shelf, and align the
threaded holes on the bottom of the DA with the holes in
the rack shelf.
3.
Secure the DA to the rack shelf with the two provided
4-40 x 3/16" machine screws. Insert the screws from the
underside of the shelf, and securely fasten them through
diagonally opposite corners.
4.
Fasten the false front panel (provided with the rack shelf)
to the unoccupied side of the rack (as shown above), or
install a second half-rack-width device in that side by
repeating steps 1 through 3.
5.
Secure the rack shelf to the rack using four 10-32 x ¾"
bolts. Insert the bolts through #10 beveled washers, then
through the holes in the mounting brackets.
www.camboard.de
2
IN3254 • Installation
CAMBOARD Electronics
Connections and Controls
Tel. 07131 911201
Fax 07131 911203
Front False
Faceplate
2
3
2
1
R
R
LISTED
C
U S
1T23
I.T.E.
G
G
B
100-240V- 1.3A
B
1
H
H
V
V
50/60 Hz

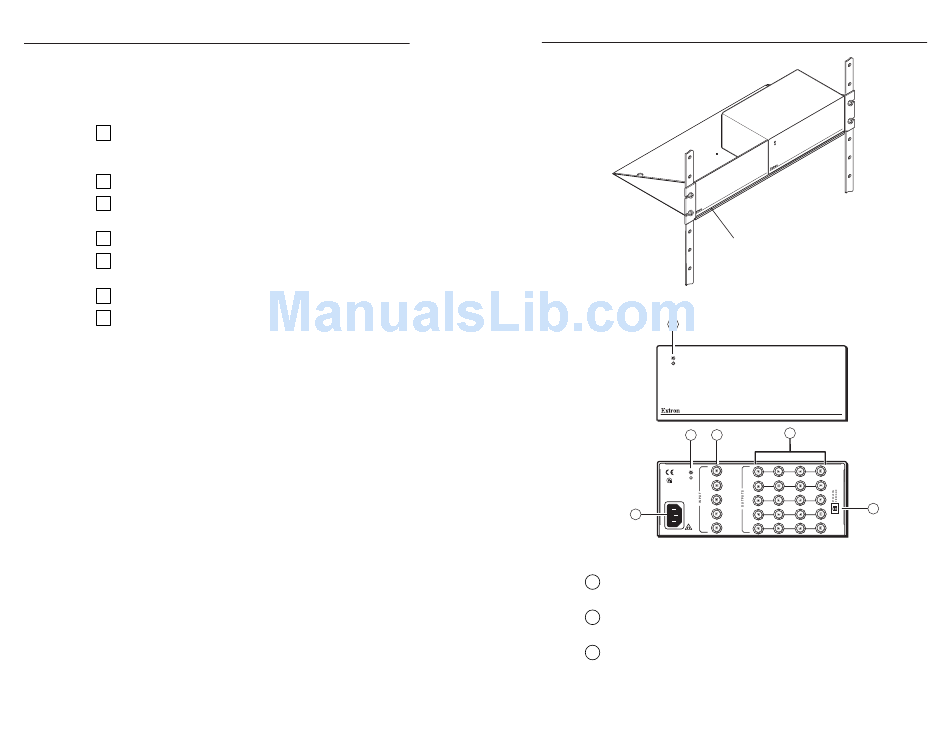

Figure 3 — IN3254 connectors and controls
Power connector — Plug the external power supply cord into
1
this connector.
Power LED — A green LED lights to indicate that the IN3204B
2
is receiving power.
Video Input connectors — Connect an RGBHV, RGBS, RGsB,
3
RsGsBs, component video, S-video, or composite video device
to these female BNC connectors.
ce-info@camboard.de
IN3254 • Connections and Controls
B
04
IN 32
