Features
Tel. 07131 911201
Fax 07131 911203
The Extron IN3254 is a high performance RGBHV distribution
amplifier. This DA includes one input and four outputs on BNC
connectors. It features a two-position gain switch that affects
the output level on all RGB channels, and compensates for
signal level loss that occurs over long cable runs. There is also a
two-position sync level selector.

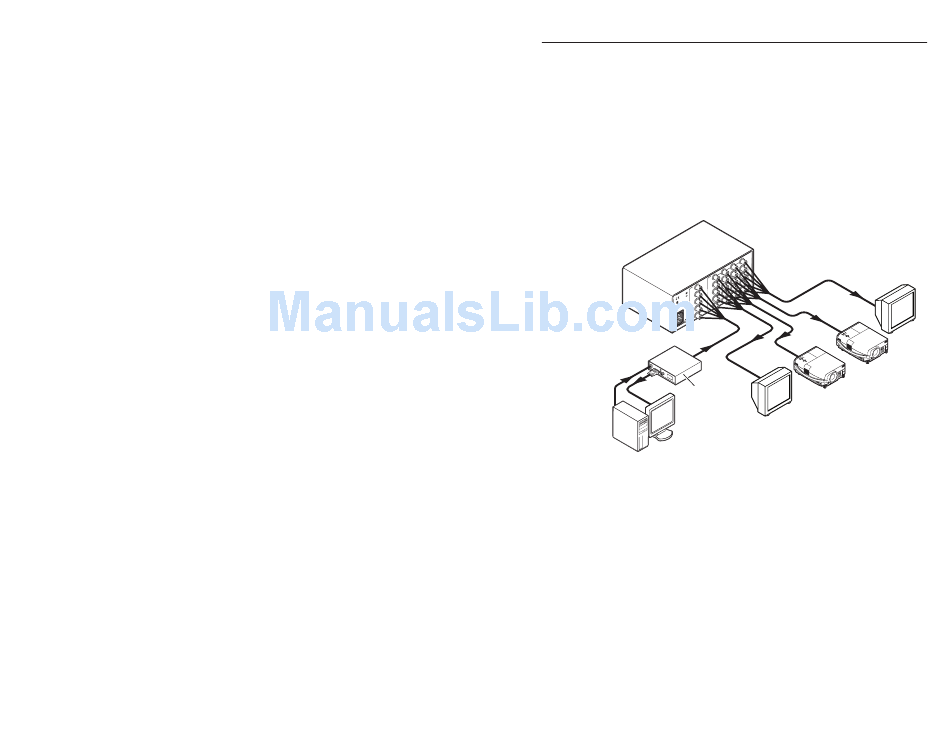

The IN3254 offers flexible video distribution/line driving
capabilities to suit a wide variety of applications including
boardrooms, training facilities, home theater, command and
control centers, and rental and staging environments.
The IN3254 is powered by an internal power supply.
Extron
IN3254
RGBHV
4
2 5
IN 3
4
3 Distribution Amplifier
2
.3
X1
1 HI X1
R LO W
G
R
B
G
ED
LIST 3 H
U S 1T2 .
I.T.E B
C
V
3A
- 1. H
0V
0- 24
10
V
/6 0 Hz
50
INPU INPU T T
BUF BUF
MON MON ITOR FER ITOR FER ED ED
OUT OUT LOC LOC AL AL
PUT PUT
H. H. SHIF SHIF
T T
RGB RGB
109 109 xi xi
Extron
RGB 109xi
VGA–UXGA
Monitor
Interface
PC
400 MHz (-3 dB) video bandwidth — Provides outstanding
video performance.
Wide compatibility — Compatible with RGBHV, RGBS, RGsB,
RsGsBs, bi-level sync component video, tri-level sync
component video (HDTV), S-video, as well as high
resolution monochrome video and composite video
baseband signals.
Power LED — A green LED lights to verify that the DA is
receiving power.
Sync Level — An internal sync level control provides precise
adjustment of the sync portion of the video with the sync
signal.
ce-info@camboard.de
IN3254 • Introduction
Monitor
Projector
Projector
1
