- Page 1 User’s Manual PRELIMINARY IN3254 RGBHV Distribution Amplifier 68-1015-01 Rev. B 02 08...
- Page 2 Safety Instructions • English This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment. This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.
- Page 3 安全须知 • 中文 这个符号提示用户该设备用户手册中 有重要的操作和维护说明。 这个符号警告用户该设备机壳内有暴 露的危险电压，有触电危险。 注意 阅读说明书 • 用 户 使 用 该 设 备 前 必 须 阅 读 并 理 解 所 有 安 全 和 使 用 说 明 。 保存说明书 • 用户应保存安全说明书以备将来使 用。 遵守警告 • 用户应遵守产品和用户指南上的所有安 全和操作说明。...
-
Page 4: Table Of Contents
Chapter One • Introduction About this Manual About the IN3254 Distribution Amplifier Features ... 1-2 Installation ... 1-3 Rack mounting ... 1-3 UL requirements for rack mounting ...1-3 Connections and Controls Input and output connections ... 1-6 Operation and Troubleshooting Appendix A •... -
Page 5: Chapter One • Introduction
IN3254 Chapter One Introduction About this Manual About the IN3254 Distribution Amplifier Features Installation Connections and Controls Operation and Troubleshooting... -
Page 6: About This Manual

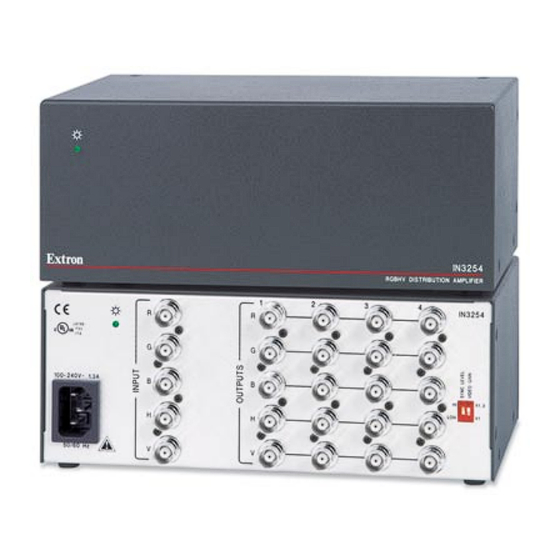

This manual describes the function and installation of the Extron IN3254 Distribution Amplifier (DA). About the IN3254 Distribution Amplifier The Extron IN3254 is a high performance RGBHV distribution amplifier. This DA includes one input and four outputs on BNC connectors. It features a two-position gain switch that affects the output level on all RGB channels, and compensates for signal level loss that occurs over long cable runs. -
Page 7: Installation
Rack mounting UL requirements for rack mounting The following Underwriters Laboratories (UL) requirements pertain to the installation of an IN3254 DA onto a rack. Elevated operating ambient — If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. - Page 8 1 through 3. Secure the rack shelf to the rack using four 10-32 x ¾" bolts. Insert the bolts through #10 beveled washers, then through the holes in the mounting brackets. IN3254 • Introduction I N 3 IE R L IF...
-
Page 9: Connections And Controls
X1.3 — Applies gain for long cable runs, up to 200' (61 m) using Extron Mini HR cable. X1 — Eliminates gain for short cable runs. IN3254 • Introduction IN3254 RGBHV DISTRIBUTION AMPLIFIER IN3254 X1.3... -
Page 10: Input And Output Connections
Connect the cables for the desired input or output signal, as shown below. RGBHV IN3254 • Introduction Sync Level: Set this switch to adjust the sync portion of the video with the sync signal. HI — Applies 5 volts peak-to-peak. -
Page 11: Operation And Troubleshooting
Make sure that each device is receiving power. The DA’s front and rear panel power LEDs indicate if the DA is receiving power. Check the cabling and make adjustments as needed. Call the Extron S necessary. Sales & Technical Support Hotline if IN3254 • Introduction... - Page 12 Introduction, cont’d IN3254 • Introduction...
-
Page 13: Appendix A • Specifications, Part Numbers, And Accessories
IN3254 A ppendix A Specifications, Part Numbers, and Accessories Specifications Included Parts Optional Accessories Bulk Cables Bulk Connectors... -
Page 14: Video Input
Standards ... NTSC 3.58, NTSC 4.43, PAL, SECAM Input level ... 1.8 V to 5.0 Vp-p Output level (analog/TTL) ... 5.0 Vp-p, unterminated IN3254 • Specifications, Part #s, Accessories switch selectable component video (bi-level sync or tri-level sync for HDTV), or S-video; or up to 3 composite video component video, S-video;... - Page 15 Compliances ... CE, FCC Class A, VCCI, AS/NZS, ICES MTBF ... 30,000 hours Warranty ... 3 years parts and labor All nominal levels are at ±10%. Specifications are subject to change without notice. IN3254 • Specifications, Part #s, Accessories V: 110 ns V: 20 ns internal, autoswitchable 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) /...
-
Page 16: Optional Accessories
Mini 59 Superflex-5 cable, 500' RG59/HR-1 cable, 500' RG59/HR-1 cable, 1000' Plenum RG59/HR-1 cable, 500' Plenum RG59/HR-1 cable, 1000' RG6/SHR-1 cable, 1000' RG6/SHR-1 cable, 1000' RG6/SHR-5 bulk, 500' IN3254 • Specifications, Part #s, Accessories Part Number 60-723-01 Part number 60-032-01 26-353-01 100-226-01 Part number... -
Page 17: Bulk Connectors
RG59/HR crimp BNC, qty. 50 RG59/HR compression BNC, qty. 50 RG6/SHR crimp BNC, qty. 50 RG6/SHR compression BNC, qty. 50 RG59/HR compression connectors for plenum cable, qty. 50 IN3254 • Specifications, Part #s, Accessories Part number 100-250-01 100-186-01 100-263-01 100-187-01... - Page 18 Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:...
- Page 19 Extron Electronics, USA 1230 South Lewis Street Anaheim, CA 92805 800.633.9876 714.491.1500 FAX 714.491.1517 www.extron.com Extron Electronics, Europe Extron Electronics, Asia Beeldschermweg 6C 135 Joo Seng Rd. #04-01 3821 AH Amersfoort, The Netherlands PM Industrial Bldg., Singapore 368363 +800.3987.6673 +31.33.453.4040 +800.7339.8766 +65.6383.4400 FAX +31.33.453.4050 FAX +65.6383.4664...
