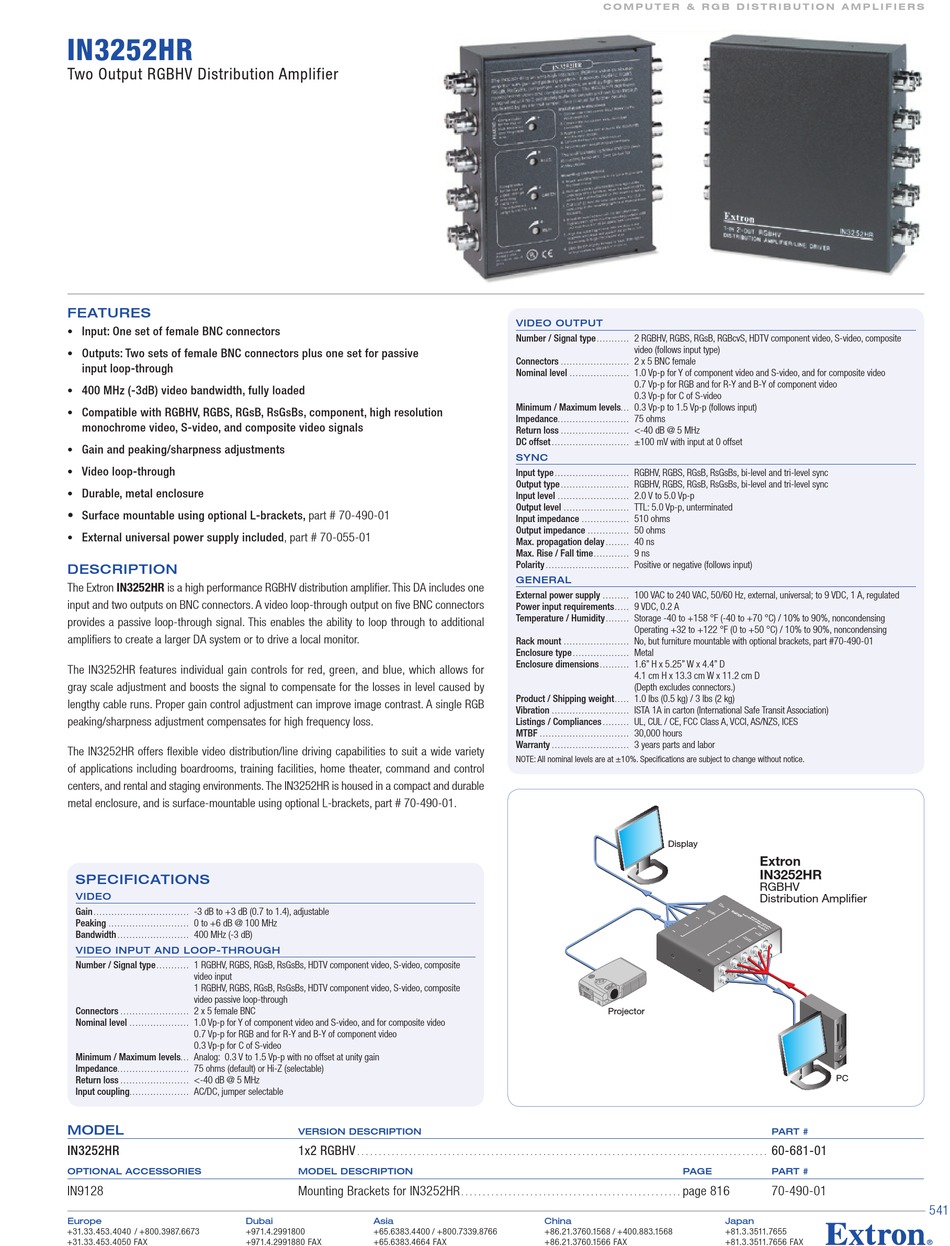

Extron electronics IN3252HR Specification Sheet

IN3252HR
Two Output RGBHV Distribution Amplifier
feAtures
Input: One set of female BNC connectors
•
Outputs: Two sets of female BNC connectors plus one set for passive
•
input loop-through
400 MHz (-3dB) video bandwidth, fully loaded
•
Compatible with RGBHV, RGBS, RGsB, RsGsBs, component, high resolution
•
monochrome video, S-video, and composite video signals
Gain and peaking/sharpness adjustments
•
Video loop-through
•
Durable, metal enclosure
•
• Surface mountable using optional L-brackets, part # 70-490-01
External universal power supply included, part # 70-055-01
•
DesCriPtion
The Extron IN3252HR is a high performance RGBHV distribution amplifier. This DA includes one
input and two outputs on BNC connectors. A video loop-through output on five BNC connectors
provides a passive loop-through signal. This enables the ability to loop through to additional
amplifiers to create a larger DA system or to drive a local monitor.
The IN3252HR features individual gain controls for red, green, and blue, which allows for
gray scale adjustment and boosts the signal to compensate for the losses in level caused by
lengthy cable runs. Proper gain control adjustment can improve image contrast. A single RGB
peaking/sharpness adjustment compensates for high frequency loss.
The IN3252HR offers flexible video distribution/line driving capabilities to suit a wide variety
of applications including boardrooms, training facilities, home theater, command and control
centers, and rental and staging environments. The IN3252HR is housed in a compact and durable
metal enclosure, and is surface-mountable using optional L-brackets, part # 70-490-01.

sPeCifiCAtions

viDeo
Gain.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -3 dB to +3 dB (0.7 to 1.4), adjustable
Peaking.. . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to +6 dB @ 100 MHz
Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . 400 MHz (-3 dB)
viDeo inPut AnD LooP-throuGh
Number / Signal type.. . . . . . . . . . . . 1 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite
video input
1 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite
video passive loop-through
Connectors.. . . . . . . . . . . . . . . . . . . . . . . . 2 x 5 female BNC
Nominal level.. . . . . . . . . . . . . . . . . . . . . 1.0 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
Minimum / Maximum levels. . . . . Analog: 0.3 V to 1.5 Vp-p with no offset at unity gain
Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms (default) or Hi-Z (selectable)
Return loss.. . . . . . . . . . . . . . . . . . . . . . . . <-40 dB @ 5 MHz
Input coupling. . . . . . . . . . . . . . . . . . . . . . AC/DC, jumper selectable

moDeL

IN3252HR

oPtionAL ACCessories

IN9128
europe europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
version DesCriPtion
1x2 RGBHV
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
moDeL DesCriPtion
Mounting Brackets for IN3252HR
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
c o m p u t e r & r G b D i s t r i b u t i o n A m p l i f i e r s

viDeo outPut

Number / Signal type.. . . . . . . . . . . . 2 RGBHV, RGBS, RGsB, RGBcvS, HDTV component video, S-video, composite
video (follows input type)
Connectors.. . . . . . . . . . . . . . . . . . . . . . . . 2 x 5 BNC female
Nominal level.. . . . . . . . . . . . . . . . . . . . . 1.0 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
Minimum / Maximum levels. . . . . 0.3 Vp-p to 1.5 Vp-p (follows input)
Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Return loss.. . . . . . . . . . . . . . . . . . . . . . . . <-40 dB @ 5 MHz
DC offset.. . . . . . . . . . . . . . . . . . . . . . . . . . . ±100 mV with input at 0 offset

synC

Input type.. . . . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync
Output type.. . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync
Input level.. . . . . . . . . . . . . . . . . . . . . . . . . 2.0 V to 5.0 Vp-p
Output level.. . . . . . . . . . . . . . . . . . . . . . . TTL: 5.0 Vp-p, unterminated
Input impedance.. . . . . . . . . . . . . . . . . 510 ohms
Output impedance.. . . . . . . . . . . . . . . 50 ohms
Max. propagation delay.. . . . . . . . . 40 ns
Max. Rise / Fall time. . . . . . . . . . . . . . 9 ns
Polarity.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Positive or negative (follows input)

GenerAL

External power supply.. . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, external, universal; to 9 VDC, 1 A, regulated
Power input requirements. . . . . . . 9 VDC, 0.2 A
Temperature / Humidity. . . . . . . . . . Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Rack mount.. . . . . . . . . . . . . . . . . . . . . . . No, but furniture mountable with optional brackets, part #70-490-01
Enclosure type.. . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions. . . . . . . . . . . . 1.6" H x 5.25" W x 4.4" D
4.1 cm H x 13.3 cm W x 11.2 cm D
(Depth excludes connectors.)
Product / Shipping weight. . . . . . . 1.0 lbs (0.5 kg) / 3 lbs (2 kg)
Vibration.. . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings / Compliances.. . . . . . . . . . UL, CUL / CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty.. . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
Display
Projector
PAGe
page 816
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
Extron
IN3252HR
RGBHV
Distribution Ampli er
PC
PArt #
60-681-01
PArt #
70-490-01
Japan Japan
+81.3.3511.7655 +81.3.3511.7655
+81.3.3511.7656 FAX +81.3.3511.7656 FAX
