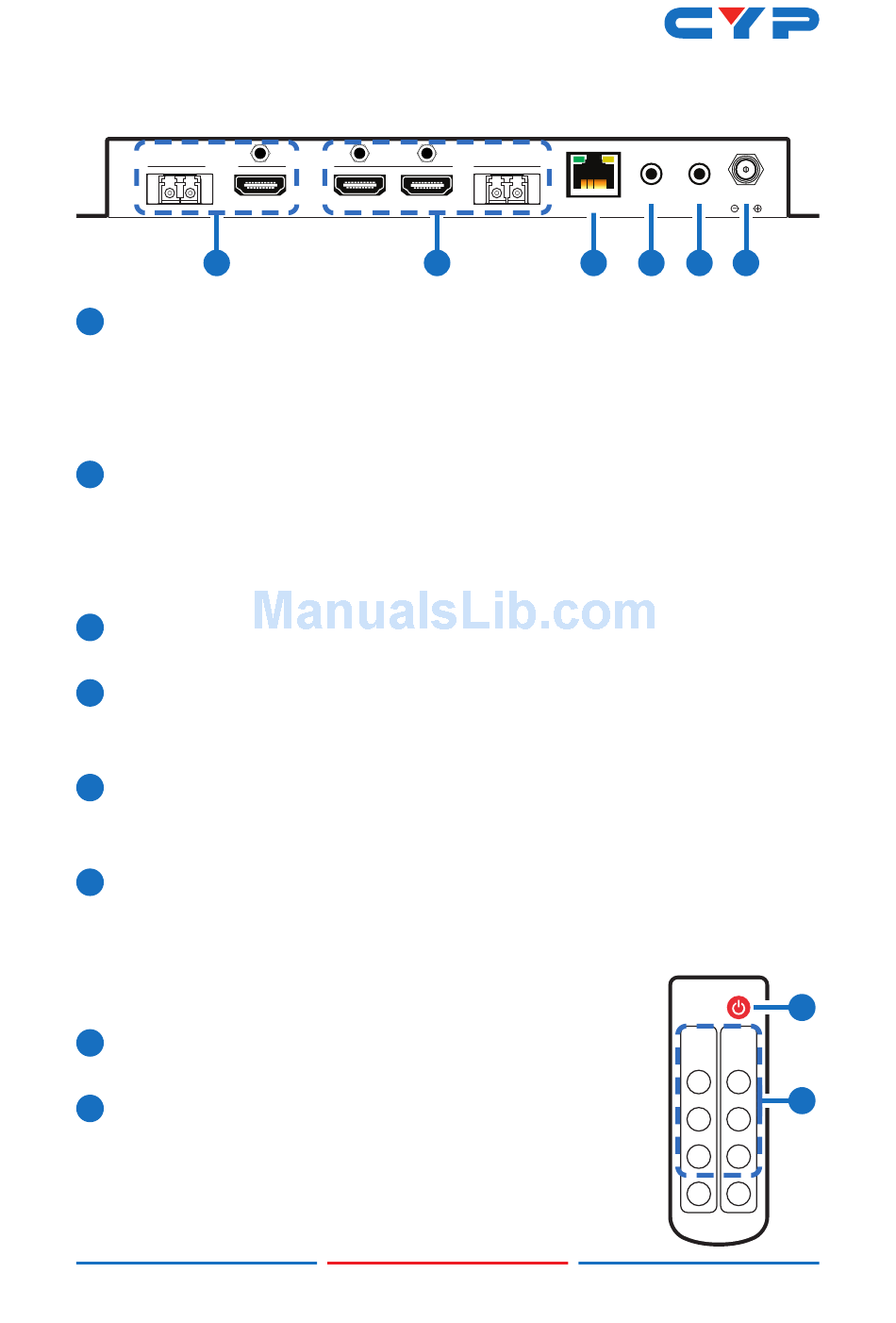

6.2 Rear Panel

OUT
HDMI B
FIBER A
1
1 FIBER A & HDMI B OUT: Connect the HDMI output to HDMI TVs,
monitors or amplifiers for digital video and audio output. DVI
displays are supported with the use of an HDMI to DVI adapter.
Connect the fiber (paired LC) output to the fiber input on a
second unit.
2 HDMI 1~2 & FIBER 3 IN: Connect the HDMI inputs to HDMI source
equipment such as media players, game consoles or set-top
boxes. DVI sources are supported with the use of an HDMI to DVI
adapter. Connect the fiber (paired LC) input to the fiber output
from a second unit.
3 CONTROL: Connect directly, or through a network switch, to your
PC/laptop to control the unit via Telnet/WebGUI.
RS-232: Connect, via the provided 9-pin adapter cable, to a PC,
4
laptop or other serial control device to send RS-232 commands to
control the unit.
IR IN: Connect to the provided IR Extender to extend the IR control
5
range of the unit. Ensure that the remote being used is within direct
line-of-sight of the IR Extender.
6 DC 5V: Plug the 5V DC power adapter into the unit and connect it
to an AC wall outlet for power.

6.3 Remote Control

POWER: Press this button to power the unit on or
1
place it into stand-by mode.
A1~A3 & B1~B3: Press any of these buttons to switch
2
immediately to the corresponding input for the
specified output (A or B).
Note: A4 & B4 have no function with this unit.
IN
HDMI 1 HDMI 2
FIBER 3
2
RS-232 IR IN DC 5V
CONTROL
3 4 5
POWER
A B
1 1
2 2
3 3
4 4
CR-155
6
1
2
4
