6. OPERATION CONTROLS AND FUNCTIONS

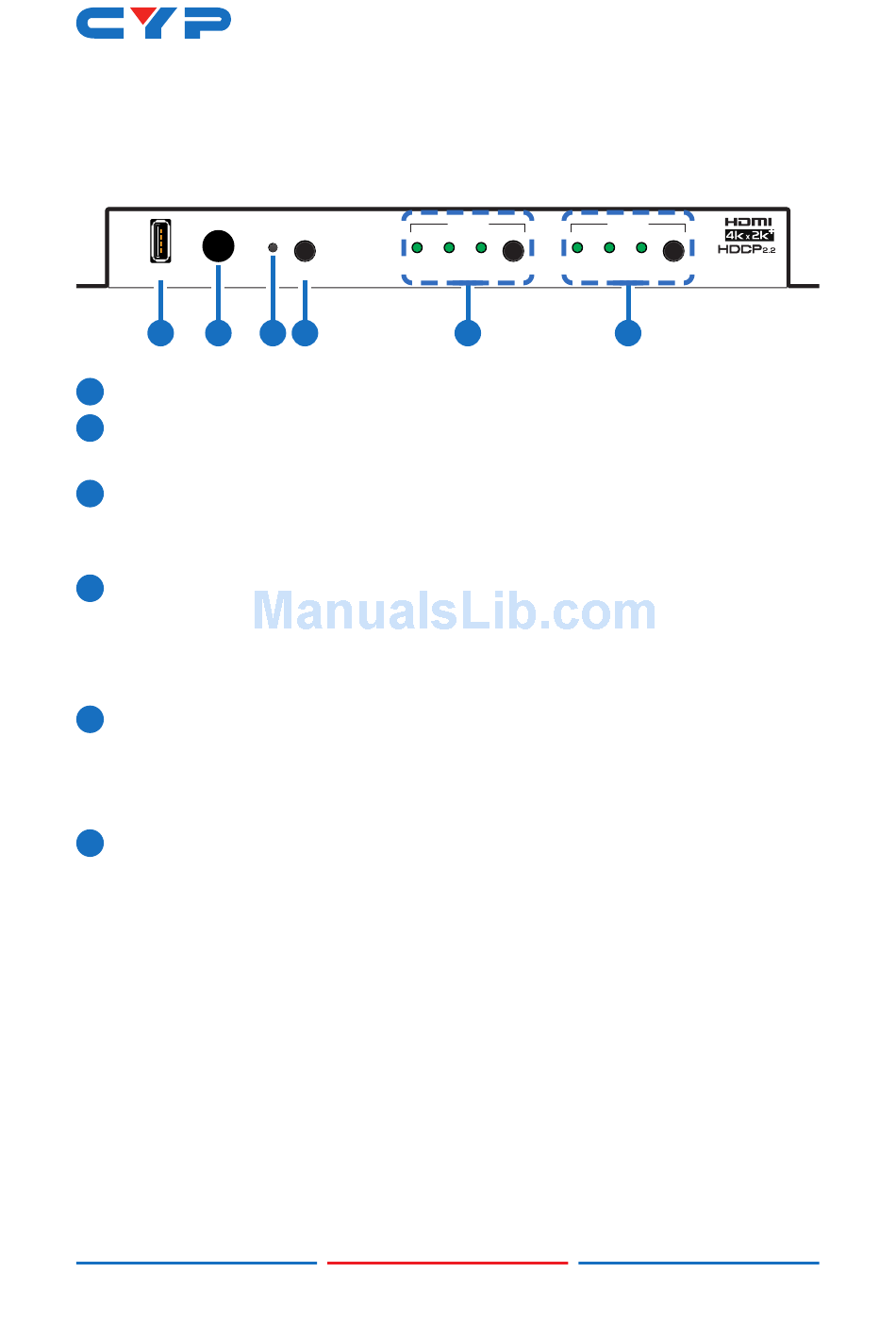

6.1 Front Panel

SERVICE
1 2
1 SERVICE: This slot is reserved for firmware update use only.
IR WINDOW: Accepts IR signals from the included IR remote for
2
control of this unit only.
3 POWER LED: This LED will illuminate green to indicate the unit is on
and receiving power. When the unit is in stand-by mode the LED
will illuminate red.
POWER BUTTON: Press this button to power the unit on or place it
4
into stand-by mode.
Note: Ethernet, IR and RS-232 remain active while the unit is in
stand-by mode.
OUT A BUTTON & LEDs: Press this button to sequentially switch
5
through the 3 available inputs, and mute, for Output A. The LEDs
will illuminate to indicate the currently selected input for Output A.
When all 3 LEDs are blinking, the output is muted.
OUT B BUTTON & LEDs: Press this button to sequentially switch
6
through the 3 available inputs, and mute, for Output B. The LEDs
will illuminate to indicate the currently selected input for Output B.
When all 3 LEDs are blinking, the output is muted.
3
POWER 1
3 4
OUT A OUT B
2 3 1 2
5
+
3x2 4K UHD+
3
HDMI / Fiber Matrix
6
