Mounting the Wireless Zdots

The Wireless Zdots SBC features two 30-pin connectors. However, only connector labeled
J1 is installed on the Wireless Zdots SBC. When mounting the Wireless Zdots SBC onto
the base board, check its orientation to the platform to ensure a correct fit. Observe that the
30 pins of the Wireless Zdots SBC plug into connector J1 on the base board. The compo-
nents on the Wireless Zdots SBC should point into the components of the base board. See
Figure 2

Changing the Power Supply Plug

The universal 5 V DC power supply offers three different plug configurations and a tool
that aids in removing one plug configuration to insert another, as displayed in
Follow the steps below to exchange one plug configuration for another:
1. Place the tip of the removal tool into the round hole at the top of the current plug con-
figuration.
2. Press down to disengage the keeper tab and push the plug configuration out of its slot.
3. Select the plug configuration appropriate for your location, and insert it into the slot
formerly occupied by the previous plug configuration.
4. Push the new plug configuration down until it snaps into place, as displayed in
Figure 8
UM022403-1008
on page 3.

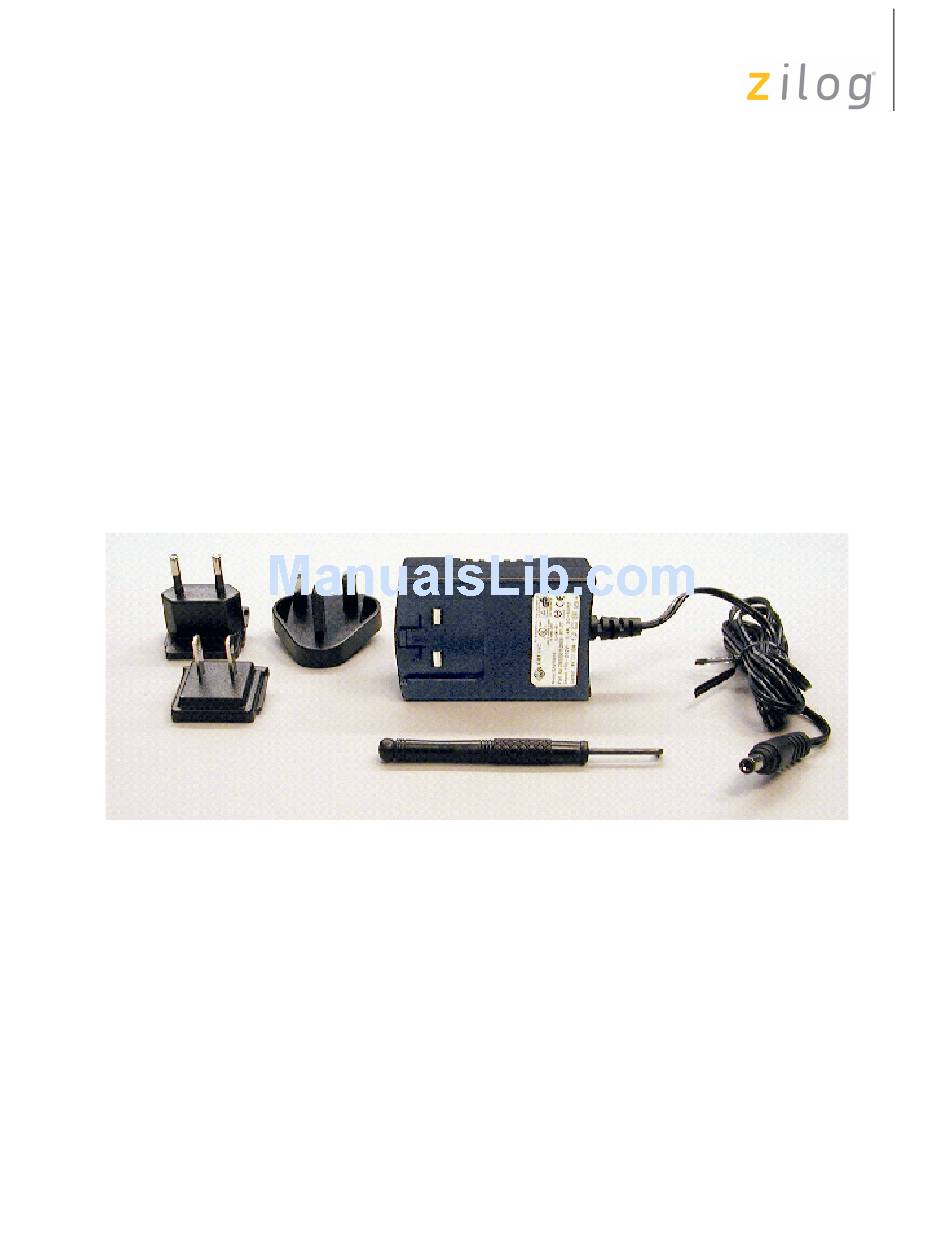

Figure 7. Universal 5 V DC Power Supply Plug
on page 8.
Wireless Zdots
®

SBC to the Base Board

®
SBC Development Kit
User Manual
Figure 7.
Physical Dimensions
