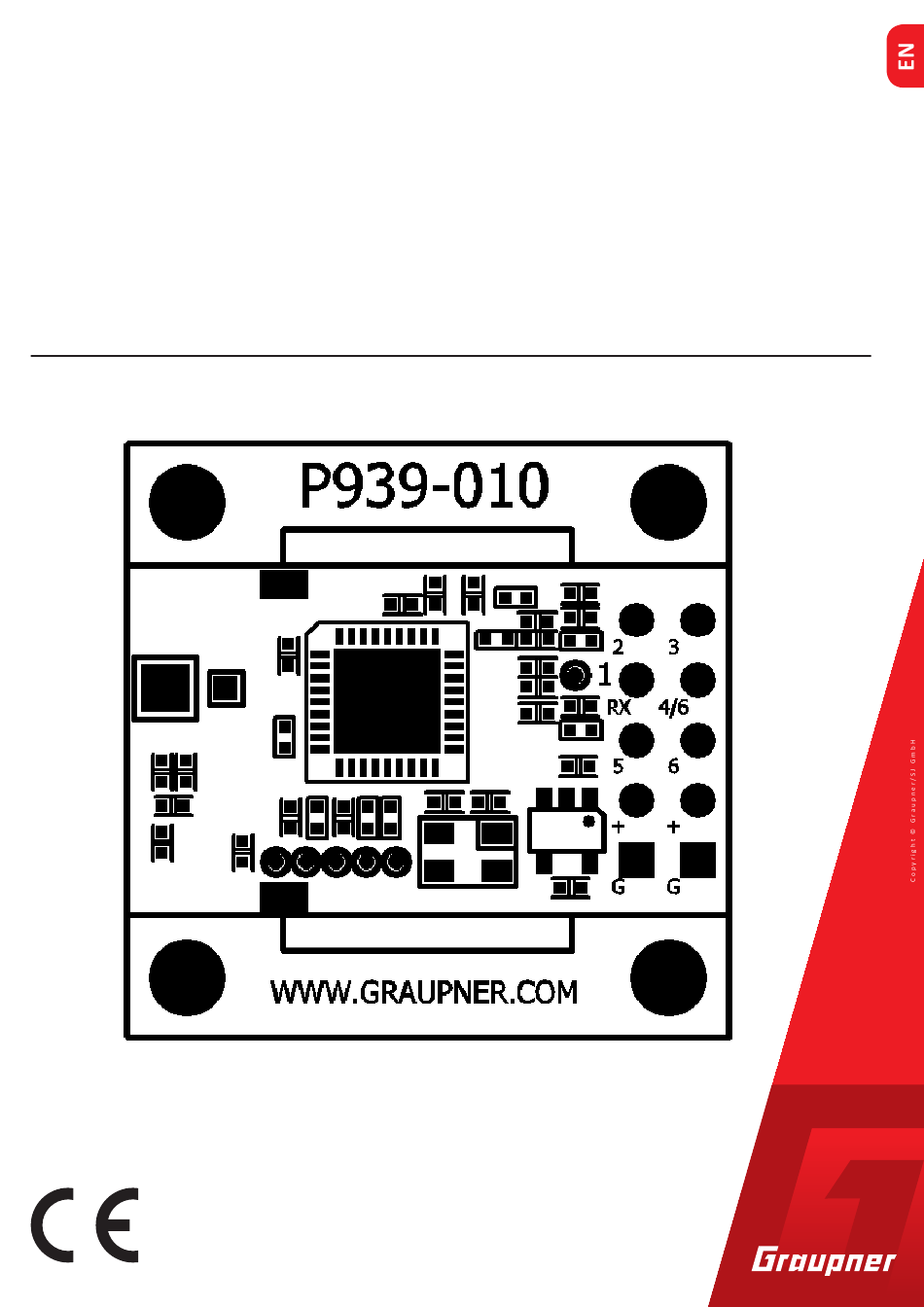

- Page 1 Manual GR-12L SUMD+T Diversity receiver Receiver GR-12L SUMD+T diversity HoTT 2.4GHz No. S1045, S1046...
- Page 2 2 / 24 16570.123_V1sh...
-
Page 3: Table Of Contents
Index Introduction ..................4 Service centre ...................4 Intended use ..................5 Target group ..................5 Package content ................5 Technical data ...................6 Symbol description ................6 Safety notes ..................6 For your safety by handling the transmitter and the receiver ..7 For your safety by handling the batteries ........8 Installation of the SUMD Diversity receiver ........8 Connection points of the circuit board ...........9 Binding .....................15... -
Page 4: Introduction
Introduction Thank you very much for purchasing a Graupner HoTT SUMD Diver- sity receiver. Read this manual carefully to achieve the best results with your HoTT system and first of all to safely control your models. If you experience any trouble during operation, take the instructions to help or ask your dealer or Graupner Service Centre. -
Page 5: Intended Use
Intended use The Graupner HoTT SUMD Diversity receiver may only be used for the purpose intended by the manufacturer, for the operation of UAVs, ie unmanned aerial vehicles or vehicle models and ship mod- els. Any other type of use is impermissible and may cause significant property damage and/or personal injury. -
Page 6: Technical Data
Technical data 2x 145 m m, Antenna of which the last 30 mm a ctive Operating voltage 4 ... 10 V Frequency range 2400 ... 2483.5 MHz Modulation 2.4 G Hz FHSS Current consumption approx. 70 m A Temperature range -15 …... -
Page 7: For Your Safety By Handling The Transmitter And The Receiver
• Only use the components and spare parts that we recommend. Always use matching, original Graupner plug-in connections of the same design and material. • Make sure that all of the plug-in connections are tight. When dis- connecting the plug-in connections, do not pull the cables. -
Page 8: For Your Safety By Handling The Batteries
For your safety by handling the batteries CAUTION • Protect the batteries from dust, dirt, moisture, heat and vibra- tions. Only use in dry locations. • Do not use any damaged battery. • Batteries may not be heated, burned, short-circuited. •... -
Page 9: Connection Points Of The Circuit Board
Connection points of the circuit board Note For the sake of clarity, the lower figure shows the spatial placement of the connection points and their designations enlarged according to the scheme used on the board. Description Channel 9 with switching function to set the FPV transmit channel of pin CS3 or to switch LEDs by transistor Channel 10 Switching function to set the FPV transmit channel of pin... - Page 10 #48474.MPU6000 with betaflight software +5 V DC Telemetry connected to 5 of SUMD receiver SUMD connected to 4/6 of SUMD receiver telemetry half duplex = on, UART6 serial RX on RX1 #48474.MPU6000 with betaflight software +5 V DC Softserial telemetry connected to 5 of SUMD receiver SUMD connected to 6 of SUMD receiver telemetry half duplex = on, Softserial 1 serial RX on RX6...
- Page 11 #48474.MPU6000 with inav software, special compiled software needed for use of softserial +5 V DC with PWM5 and PWM6 Softserial telemetry connected to 5 of SUMD receiver SUMD connected to 6 of SUMD receiver PWM6 GPS on Rx1, Tx1 Magnetometer on SCL, SDA telemetry half duplex = off, Softserial 1 serial RX on RX6 PWM5...
- Page 12 #48477 with betaflight software +5 V DC Telemetry connected to 5 of SUMD receiver SUMD connected to 6 of SUMD receiver telemetry half duplex = on, RX6 serial RX on RX2 #48477 with inav software GPS on Rx1, Tx1 +5 V DC Telemetry connected to 5 of SUMD receiver Magnetometer on SCL, SDA SUMD connected to 6 of SUMD receiver...
- Page 13 80091 48374.Nano Omnibus Nano F4 V5 Pinmap OMNIBUS F4 Nano V5 connection HoTT Telemetry on Softserial and RX serial on RX6 The Omnibus F4 NANO V5 flight controller using MPU 6000 gyro and STM32 F405 MCU, with upgraded BEC design, it works up to 6S. other important features include BetaFlight conigurable OSD, barometer.
- Page 14 #16570.123 25mW FPV-transmitter BAND CHANNEL VCC connected to 5V DC (only for Alpha 110 camera, VCC connected to 4.5...5V not for others!) GND connected to AGND Other cameras connect to 5V DC of FC CS3 connected to 1 of SUMD-diversity receiver CS2 connected to 2 of SUMD-diversity receiver GND connected to AGND CS1 connected to 3 of SUMD-diversity receiver...
-
Page 15: Binding
Binding To establish a connection with the transmitter, the Graupner HoTT receiver must first be "bound" to at least one model memory in "its" Graupner HoTT transmitter. This process is generally called "bind- ing". However, the methods to be used are not always the same, so... -
Page 16: Video Transmitter 16570.123
Video transmitter 16570.123 Video channel switching on the outputs 1-3 with video transmitter No. 16570.123 There are four video channels available in Europe. It is possible to +100% +100% switch between these through the channels 9-10. SW6/7 +100% +100% free +100% +100% Channel 11 allows switching of all Raceband channels with US soft- free... -
Page 17: Telemetry" Menu
"Telemetry" menu SETTING & DATA VIEW The basic handling of the "Telemetry" menu is described in the TELEMETRY respective transmitter instructions or the instructions of the Smart- SETTING & DATAVIEW Box. By way of derogation, only in certain receivers the menu struc- SENSOR RF STATUS DISPLAY ture is summarized under the generic term "setting &... - Page 18 SENSOR at CH5 • "No" RECEIVER 1.95 ALARM VOLT: 3.7V Port 5 is suitable for operating a servo or comparable RC com- ALARM TEMP: 65°C PERIOD: 10ms ponents. SENSOR at CH5: SUMD at CH6: SUMD • "Yes" RSSI CH : F.RESET : Port 5 is suitable for connecting HoTT telemetry sensors.
-
Page 19: Rx Free Mixer
RX FREE MIXER Up to five mixers can be contemporaneously programmed. The fol- RX FREE MIXER MIXER: lowing settings in this display only relate to the mixers 1 ... 5 selected MASTER CH: in the "MIXER" line. SLAVE CH: TRIM: As long as the value fields of the lines "MASTER CH"... - Page 20 20 / 24 16570.123_V1sh...
- Page 21 21 / 24 16570.123_V1sh...
-
Page 22: Simplified Declaration Of Conformity
SIMPLIFIED DECLARATION OF CONFORMITY Graupner/SJ hereby declares that the Graupner GR-12L SUMD+T Diversity HoTT receiver complies with the Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: www.graupner.de Manufacturer Graupner Co., Ltd... -
Page 23: Notes On Environmental Protection
These operating instruction are exclusively for information purposes and are subject to change without prior notification. The current version can be found on the Internet at www.graupner.de on the relevant product page. In addition, the company Graupner/SJ has no responsibility or liability for any errors or inaccuracies that may appear in construction or operation manuals.
