TLP Pro 1220TG and TLP Pro 1520TG • Setup Guide

Overview

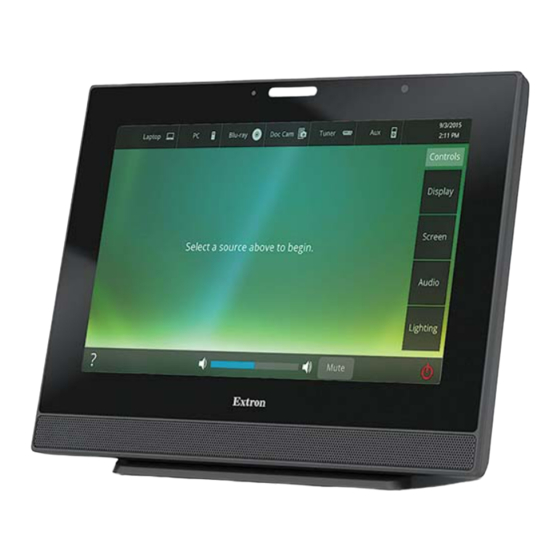

The Extron TLP Pro 1220TG is a 12.1 inch tabletop touchpanel with a high resolution 1280x800 capacitive touch screen. The
TLP Pro 1520TG is a 15.6 inch tabletop touchpanel with a high resolution 1366x768 capacitive touch screen. They are ideal for any
AV applications requiring large touchpanels with flexible mounting options and fully customizable interfaces. This guide provides
instructions for experienced installers to mount and install a TLP Pro 1220TG or TLP Pro 1520TG touchpanel. For more complete
instructions, see the TLP Pro 1220 Series and TLP Pro 1520 Series User Guide at

Setup Checklist

Get Ready
… Download and install the latest version of the following software:
GUI Designer — for designing layouts for Extron TouchLink
Global Configurator
Toolbelt — provides device discovery, device information, firmware updates, and configuration of network settings, system
utilities, and user management for TouchLink Pro devices.
All three software programs are available from
… Obtain the following network information from your network administrator:
… DHCP status (on or off). If DHCP is off, you will also require
… IP address
… User name — by default these are either admin or user.
Passwords — by default these are either extron (for admin) or the field is left blank (for user).
…
… Make a note of the touchpanel MAC address.

Mount and Cable All Devices

ATTENTION:
• Do not power on the touchpanels or control processors until you have read the Attention in the Power Supply section of
the TLP Pro 1220 Series and TLP Pro 1520 Series User Guide or the IPL Pro User Guide.
• Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « sources
d'alimentation » du TLP Pro 1220 Series and TLP Pro 1520 Series User Guide ou du IPL Pro User Guide.
… Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
… Connect cables to the touchpanels. To connect cables, remove the back and base covers (see
about the cable connectors, see
… Connect the power cords and power on all devices.

Set up the Touchpanels for Network Communication

… Connect the PC that you will use for setup, the control processor, and touchpanel to the same Ethernet subnetwork.
Setup Menu
… Use the
and related settings for the touchpanel.

Configure the Touchpanels

The GUI Designer Help File, Global Configurator Help File, and the Toolbelt Help File provide step‑by‑step instructions and more
detailed information. The Global Configurator Help File includes an introduction to the software and sections on how to start a
project and configuration.
Plus and Professional — for setting up and configuring the control processor and touchpanel.
®
www.extron.com
… Subnet mask
Rear Panel Features
(see page 4) or Toolbelt to set the DHCP status and, if necessary, the IP address, subnet mask, gateway,
www.extron.com
Pro touchpanels and third party touch interfaces.
®
.
… Gateway
on page 3.
Product Category
.
Mounting
on the following page).
figure 3 ). For more information
