OPERATION & MAINTENANCE MANUAL

3.3 AUTOWINDER PRINTER (900438-2)

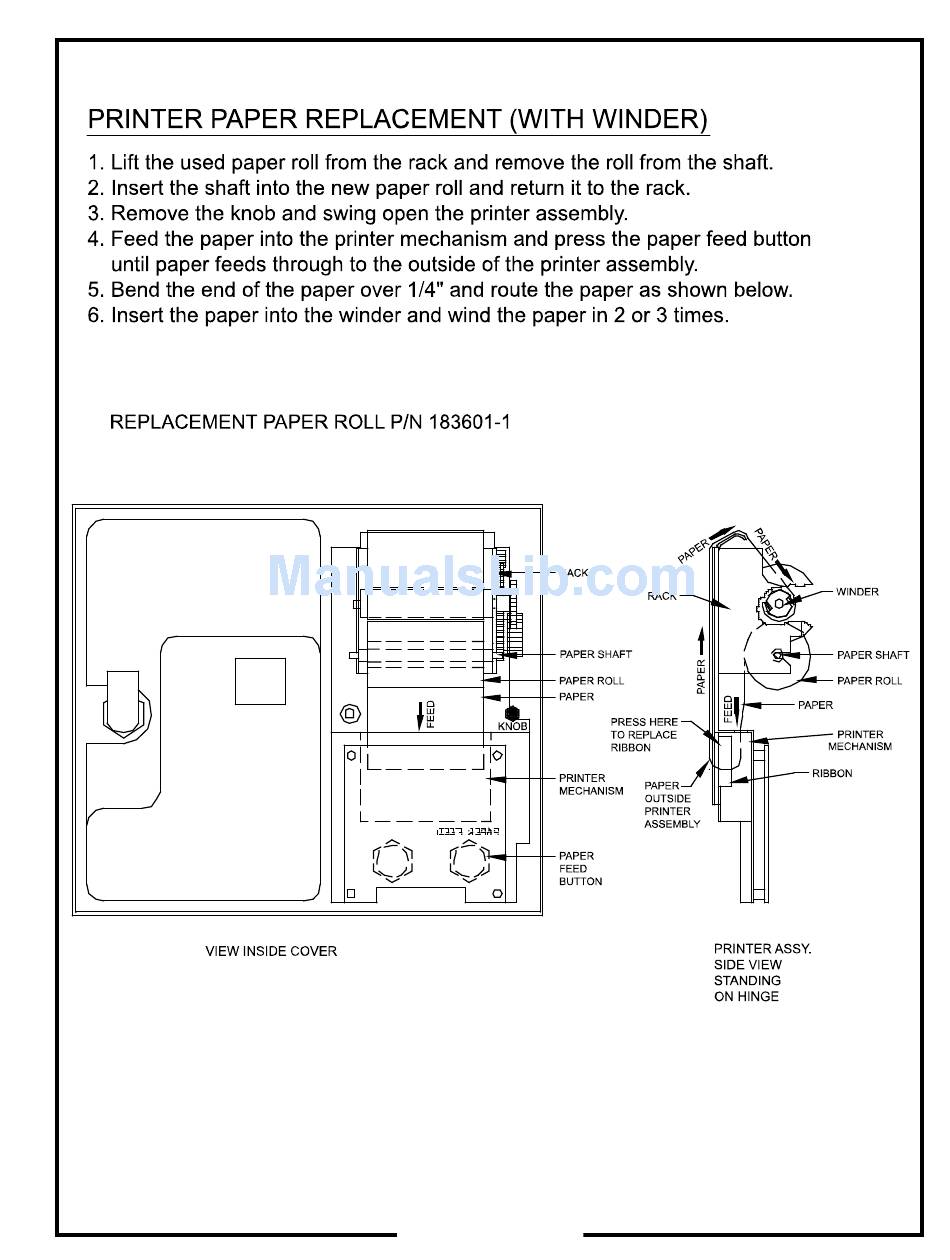

PRINTER PAPER REPLACEMEN T (WITH WINDER)
1. Lift the used paper roll from the rack and remove the roll from the shaft.
2. Insert the shaft into the new paper roll and return it to the rack.
3. Remove the knob and swing open the printer assembl y.
4. Feed the paper into the printer mechanism and press the paper feed button
until paper feeds through to the outside of the printer assembl y.
5. Bend the end of the paper over 1/4" and route the paper as shown belo w.
6. Insert the paper into the winder and wind the paper in 2 or 3 times.
REPLACEMEN T PAPER ROL L P/N 183601-1
VIEW INSIDE COVER
TMS Operations and Maintenance Manual.docx
RACK
PAPER SHAF T
PAPER ROL L
PAPER
PRESS HERE
KNOB
TO REPLACE
RIBBON
PRINTER
MECHANISM
PAPER
FEED
BUTTON
PAGE 73
TMS2000/3000
RACK
PAPER
RIBBON
PAPER
OUTSIDE
PRINTER
ASSEMB LY
PRINTER ASSY.
SIDE VIEW
STANDING
ON HINGE
February 12, 2018
WINDER
PAPER SHAF T
PAPER ROL L
PRINTER
MECHANISM
