OPERATION & MAINTENANCE MANUAL
SECTION 1 – SYSTEM OVERVIEW

1.1 FRONT PANEL DESCRIPTION

The front panel of the TMS is available in four different configurations as listed below:
-1... Console without LED display, without internal printer
-2... Console with LED display, without internal printer
-3... Console with display and internal impact receipt printer
-4... Console with display and internal impact printer w/ autowinder
This manual describes operational procedures pertaining to -2, -3, and -4 consoles. Refer to TMS Communicator
Instruction Manual for operating the TMS via TMS Communicator software.

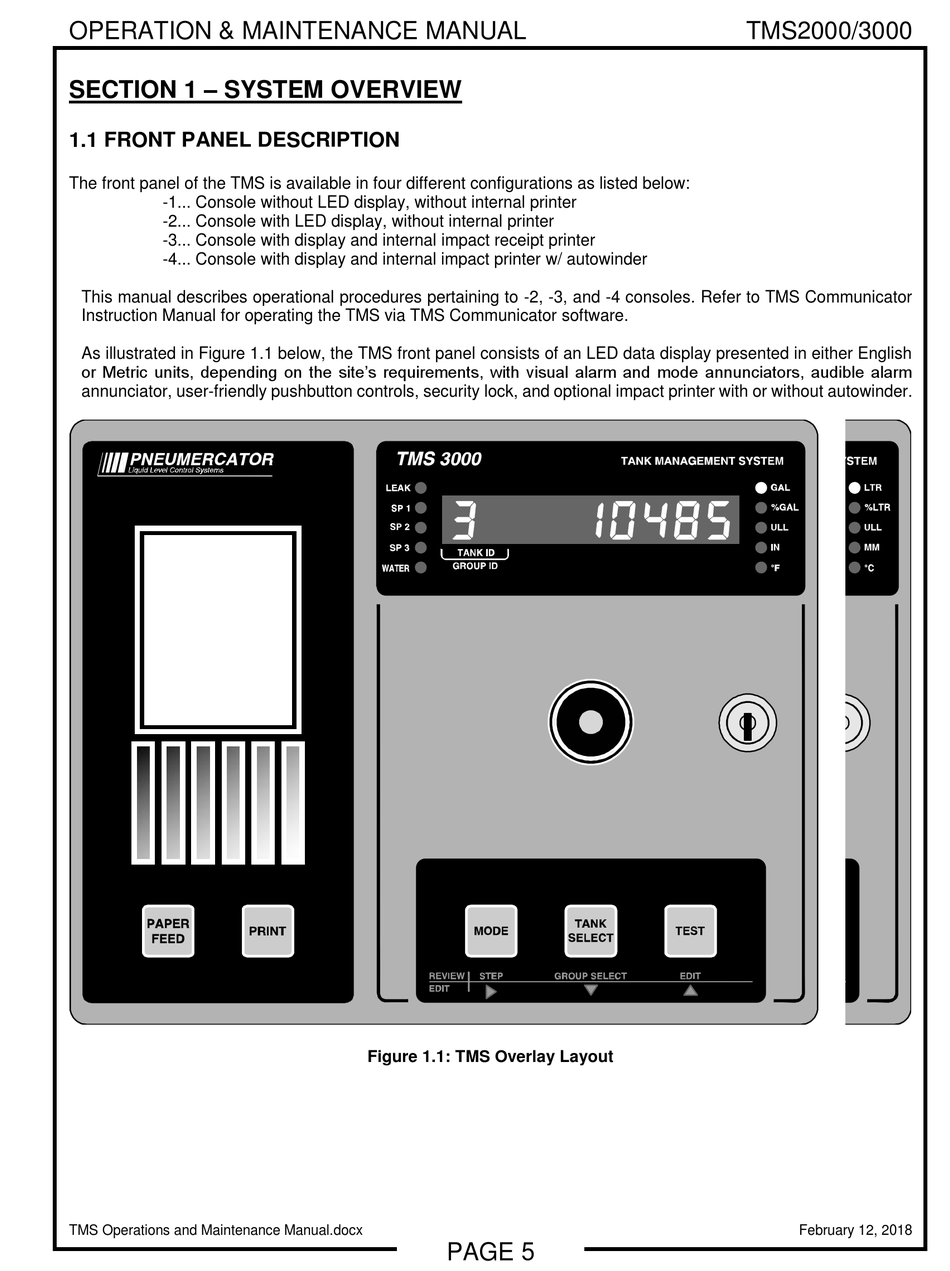

As illustrated in Figure 1.1 below, the TMS front panel consists of an LED data display presented in either English
or Metric units, depending on the site's requirements, with visual alarm and mode annunciators, audible alarm
annunciator, user-friendly pushbutton controls, security lock, and optional impact printer with or without autowinder.
PNEUMERCATOR PNEUMERCATOR
Liquid Level Control System s Liquid Level Control System s
PAPER PAPER
PRINT
FEED FEED
TMS Operations and Maintenance Manual.docx
TMS 3000 TMS 3000
LEAK LEAK
3. 3 . 8 . 8 .
SP 1 SP 1
SP 2 SP 2
SP 3 SP 3
TANK ID
WATER GROUP ID WATER
MODE
PRINT
REVIEW REVIEW
STEP
EDIT EDIT
Figure 1.1: TMS Overlay Layout
PAGE 5
TANK MANAGEMENT SYSTEM TANK MANAGEMENT SYSTEM
1 . 0 . 4 . 8 . 5
TANK ID
GROUP ID
TANK TANK
MODE TEST
SELECT SELECT
GROUP SELECT STEP GROUP SELECT EDIT
TMS2000/3000
GAL LTR
.
%GAL %LTR
ULL ULL
IN MM
°F °C
TEST
EDIT
February 12, 2018
