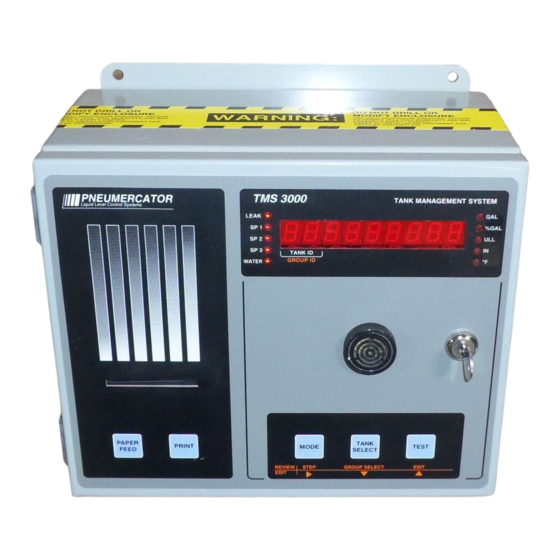

Pneumercator TMS 3000 Quick Reference Manual

–
Peter Sinkiwskij DN: cn=Peter Sinkiwskij, o=Pneumercator Co., Inc., ou=Hauppauge, email=peter@pneumercator.com, c=US Date: 2013.04.19 08:51:58 -04'00' Digitally signed by Peter Sinkiwskij

Alarm LEDs*

LEAK – In-Tank / Sensor
SP1 – Above 95% (High High)
SP2 – Above 90% (High)
SP3 – Below 20% (Low)
WATER – Above 2"
Audible Alarm
Acknowledgment
To silence an alarm,
press any of the right
three buttons. The visual
indicator will remain
active as long as the
alarm condition persists.
A theft alarm can only
be silenced by pressing
the ACKNOWLEDGE
pushbutton located on
the inside of the front
door.
PAPER FEED PRINT
Press to advance Press for Current
paper Inventory / Sensor Press and hold until beep
Status report
Current Inventory / Sensor Status Report: Press PRINT button.
* If an alarm LED is blinking, an active tank alarm is present on a tank(s) not currently being displayed. When
an alarm LED is on continuously, it applies to the currently displayed tank. Note that this alarm may apply to
more than one tank, which can be determined by viewing each tank with the TANK SELECT button.
Site Name
Site Location
TMS Quick Reference.doc

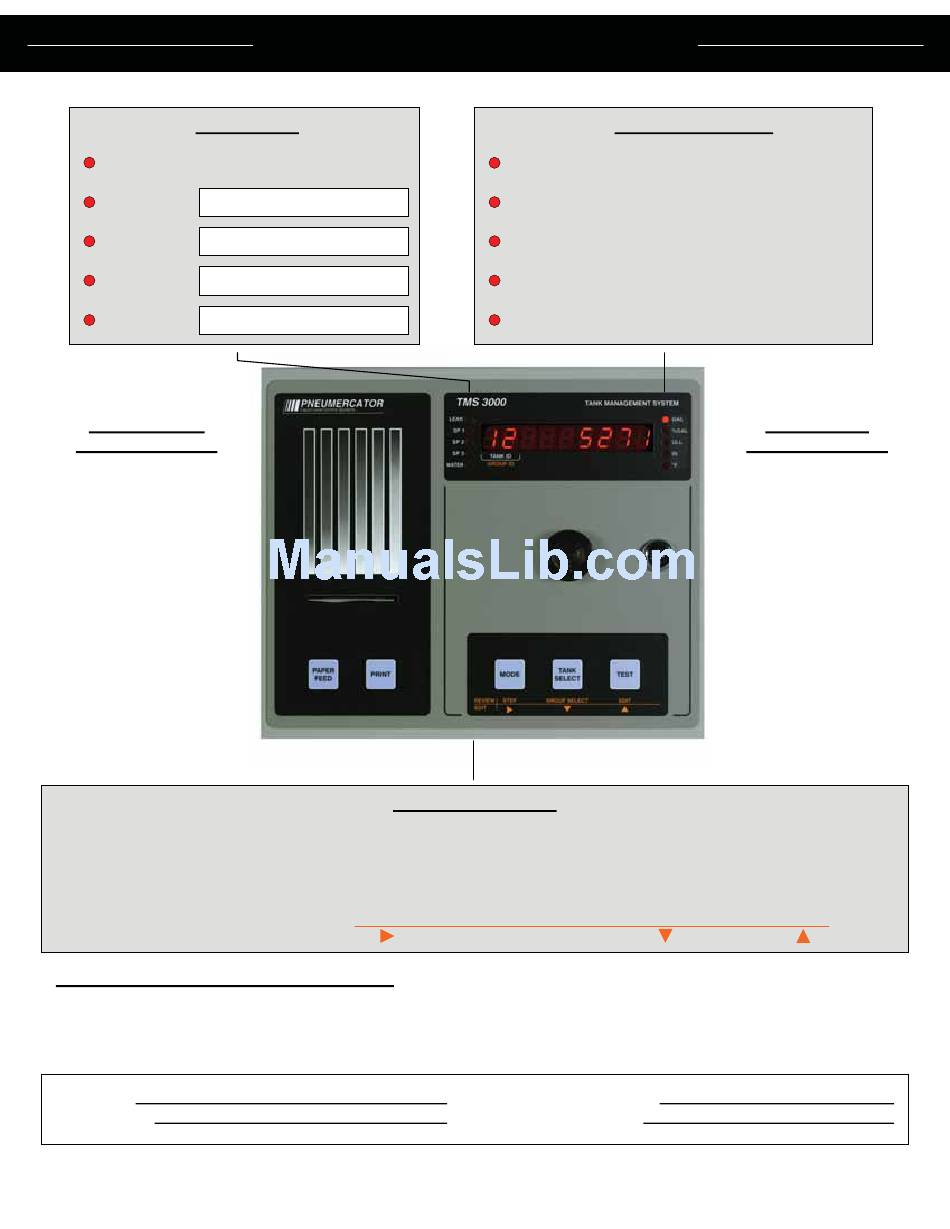

TMS Quick Reference Guide
Front Panel Buttons
MODE
Press to display tank name.
to select display mode
STEP

Display Mode LEDs

GAL – Gross Volume (Gallons)
Net Volume (with ºF LED on)
%GAL – Percent of Capacity
ULL – Ullage Vol (Gallons, Default 90%)
IN – Product Level (Inches)
Water Level (with "u" symbol, inches)
ºF – Product Temperature (ºF)
TANK SELECT
Press to select tank
Press and hold until
beep for autoscan
G ROUP SELECT
Tech Support Phone
Em ergency Phone
Page 1 of 2
Visual Alarm
Acknowledgment
The only visual alarms
that can be cancelled
are failed in-tank leak
test and no monthly in-
tank leak test. These
visual alarms are
deactivated by pressing
the ACKNOWLEDGE
pushbutton located on
the inside of the front
door. All other visual
alarms are persistent
until remedied.
TEST
Press to test
display and
horn
EDIT
July 1, 2009
