PNEUMERCATOR
Liquid Level Control Systems
Quick Start-up Guide
For Factory Preprogrammed
TMS2000 & TMS3000 Systems
DRAWING NO. 20001 REV. A
© COPYRIGHT 2017 PNEUMERCATOR CO., INC.
1785 EXPRESSWAY DRIVE NORTH
HAUPPAUGE, NY 11788
Pneumercator Co., Inc.
1785 Expressway Drive North
Hauppauge NY 11788
Phone (631) 293-8450
Fax (631) 293-8533
Tech Support (800) 209-7858
www.pneumercator.com
TMS Quick Start-up Guide.docx
November 21, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMS3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Pneumercator TMS3000

Summary of Contents for Pneumercator TMS3000

  • Page 1 Peter Sinkiwskij Digitally signed by Peter Sinkiwskij DN: cn=Peter Sinkiwskij, o=Pneumercator Co., Inc., ou=Headquarters, email=peter@pneumercator.com, c=US Date: 2017.11.21 16:34:59 -05'00' PNEUMERCATOR Liquid Level Control Systems Quick Start-up Guide For Factory Preprogrammed TMS2000 & TMS3000 Systems DRAWING NO. 20001 REV. A ©...

  • Page 3: Table Of Contents

    8. TMS AC Power Wiring ........................ 15 9. TMS Probe Wiring ........................16 10. TMS2000 Sensor Wiring ......................17 11. TMS3000 Sensor Wiring ......................18 12. TMS Series to RA200KR Wiring ....................20 13. TMS Series to RA100R Wiring ....................22...

  • Page 5: Introduction

    Pneumercator TMS Series tank gauging system. You can use this guide for both the TMS2000 and TMS3000 consoles. The first part of this guide shows what is needed to perform a start-up on a FACTORY PREPROGRAMMED TMS Series console. The second part has the basic wiring needed for the TMS2000 &...

  • Page 6: Start-Up Of Preprogrammed Systems

    2. Record probe serial number(s), model number(s), calibration factor(s) (Probe C.F.), and length(s) on the worksheet on the next page. This information must match the factory programming printout provided with the console to avoid reprogramming the console. PNEUMERCATOR PNEUMERCATOR Liquid Le v el Control Systems...

  • Page 7: Probe Worksheet

    Quick Start-up Guide TMS Series Probe Worksheet Ex: F1 Probe 1 Probe 2 Probe 3 Probe 4 Probe 5 Probe 6 Probe Information Serial # R1234-1 Model # MP450S 9.128 C.F. 100” Length Product Level Information Stick 42.5” 43.7” Prod HO -1.2”...

  • Page 8: Programming Float Height Offsets Using Tms Communicator

    1) Install TMSComm on your computer. a. Insert TMSComm CD-ROM and follow on-screen instructions. 2) Start TMSComm by clicking on Pneumercator in the Start menu under Programs or All Programs and then clicking TMSComm. 3) Sign into the TMSComm Administrator account.

  • Page 9: Tmscomm Probe Configuration

    Quick Start-up Guide TMS Series 5) Connect to the Site by clicking Connect in the Sites menu. 6) Read the configuration from the TMS. a. Click on the Configurations menu. b. Click on the File menu in the Configurations window and choose Read Configuration From Connected Device.

  • Page 10: Programming Float Height Offsets Using Tms Front Panel

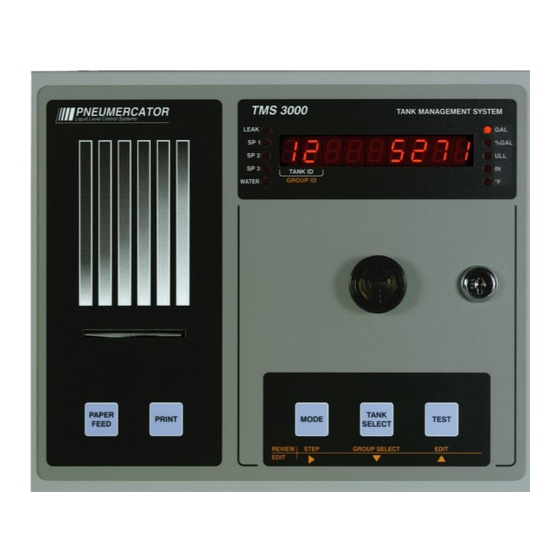

    EDIT DWG NO. 20043 REV. N/C Figure 5 - TMS Front Panel Keys Layout (TMS3000 colors shown) 1) Enter programming Mode by pressing and holding the TEST button and then pressing the MODE button at the same time until Log (Log) appears. Release both buttons.

  • Page 11: Tms Edit Enable Button

    Quick Start-up Guide TMS Series 8) Press the EDIT ENABLE/THEFT ALARM ACKNOWLEDGE button on the inside of the front door up one time. This will NOT cause the display to change but will authorize you to make programming changes to the TMS for the duration of the programming session. PUSH UP AND RELEASE EDIT ENABLE/...

  • Page 12: Tms Front Panel Navigation Chart

    Quick Start-up Guide TMS Series TMS Front Panel Navigation Chart Figure 7A - TMS Front Panel Navigation Chart - Legend Page 12 of 24 TMS Quick Start-up Guide.docx November 21, 2017...
  • Page 13 Quick Start-up Guide TMS Series Figure 7B - TMS Front Panel Navigation Chart - All menus except Configuration Page 13 of 24 TMS Quick Start-up Guide.docx November 21, 2017...
  • Page 14 Quick Start-up Guide TMS Series Figure 7C - TMS Front Panel Navigation Chart - Configuration menu only Page 14 of 24 TMS Quick Start-up Guide.docx November 21, 2017...

  • Page 15: Tms Wiring Diagrams

    ALL GROUNDS MUST BE TERMINATED AT THE GND BUSS BAR IN THE SAME SERVICE PANEL AS LC2000 AND/OR TMS POWE R. A G ROUNDING ROD, COLDWAT ER PIPE OR OTHER CONNECTION SHOULD NOT BE USED. PNEUMERCATOR Liquid Level Control Systems Bulletin 172 Rev. A (01/19/07)

  • Page 16: Tms Probe Wiring

    IMPORTANT! PROBE WIRING INSTRUCTIONS - MODELS TMS2000/TMS3000/TMS4000 IMPORTANT! PROBE WIRING INSTRUCTIONS - MODELS TMS2000/TMS3000/TMS4000 TMS CONSOLE TMS CONSOLE TYPICAL WIRING FOR TMS CONSOLES TYPICAL WIRING FOR TMS CONSOLES WARNING WARNING Refer to TMS installation manual for Refer to TMS installation manual for...

  • Page 17: Tms2000 Sensor Wiring

    WHT OR GRN RSU800 (DISCRIMINATING) * RED IS COMMON GROUND WIRE Questions? Contact Technical Support at (800) 209-7858 PNEUMERCATOR Liquid Level Control Systems Bulletin 173 Rev. A (11/01/07) Page 1 of 1 Figure 10 - TMS2000 Sensor Wiring Page 17 of 24 TMS Quick Start-up Guide.docx...

  • Page 18: Tms3000 Sensor Wiring

    TMS Series IMPORTANT! TMS3000/TMS4000 SENSOR WIRING INSTRUCTIONS IDENTIFY THE TYPE OF SENSOR(S) TO BE INSTALLED. WIRING MUST BE TERMINATED ON THE TERMINALS INDICATED BELOW TO ENSURE CORRECT OPERATION. SEE PAGE 2 FOR TMS3000 SENSOR NUMBERING SEQUENCE 2-WIRE SENSORS MODEL 4-PROBE/8-SENSOR...
  • Page 19 SENSOR 14 SENSOR 1 SENSOR 15 SENSOR 15 SENSOR 2 SENSOR 16 SENSOR 16 Page 2 of 2 Bulletin 174 Rev. B (12/07/15) Figure 11B - TMS3000 Sensor Wiring Page 19 of 24 TMS Quick Start-up Guide.docx November 21, 2017...
  • Page 21 WIRING DRAWING - RA200* TO LC2000 & TMS SERIES * "RA200" CAN ALSO BE WRITTEN AS "RA200-1" TMS3000 LC2000/TMS2000 WIRING TERMINATION EXAMPLES SHOWN FOR REFERENCE WIRING TERMINATION EXAMPLES SHOWN FOR REFERENCE (SEE NOTES) (SEE NOTES) 4X4 RELAY I/O CARD 8X8 RELAY I/O CARD...

  • Page 22: Tms Series To Ra100R Wiring

    * INSTALL SO THAT THE DRIP HOLES ARE LOCATED ON THE BOTTOM (SEE OUTLINE DRAWING 10506). IF 1 = RED (TEST) NOT SUPPLIED, DRAWING MAY BE DOWNLOADED 2 = BLACK (COM) FROM www.pneumercator.com 3 = WHT OR GRN (RESET) MODEL NO. PNEUMERCATOR RA100-115VAC...
  • Page 23 WIRING DRAWING - RA100 TO LC2000 & TMS SERIES TMS3000 LC2000/TMS2000 WIRING TERMINATION EXAMPLES SHOWN FOR REFERENCE WIRING TERMINATION EXAMPLES SHOWN FOR REFERENCE (SEE NOTES) (SEE NOTES) 4X4 RELAY I/O CARD 8X8 RELAY I/O CARD BUILT-IN RELAY I/Os 4X4 RELAY I/O CARD...

  • Page 24: Programming For Ra100/Ra200 Remote Annunciator

    Quick Start-up Guide TMS Series RA100R/RA200KR Remote Alarm Programming Contact Closure 1 Reset Contact Closure 2 Test Note: For wiring, refer to: Figure 12 for RA200KR. Relay 1 Strobe Relay 2 Horn Figure 13 for RA100R The following wiring scenario is being provided as a guideline only. The advantage to wiring the CC Inputs as illustrated is to use the Reset switch in combination with the Test switch.
