OPERATION & MAINTENANCE MANUAL
EDIT: The EDIT pushbutton is used to edit or change the value of the currently displayed data item. If the displayed
item is a menu or sub-menu name, EDIT allows the user to change the menu. If the displayed item is system data,
for example, configuration or clock data, the EDIT function is inhibited unless enabled by the EDIT ENABLE
pushbutton located on the inside of the front panel. See Figure 2.4.2 for button location. To enable editing, an
authorized user would first unlock and open the front panel, press EDIT ENABLE, and then re-lock the enclosure.
This prevents unauthorized persons from modifying stored data since the front panel would normally be locked. An
audible beep informs the user when editing in inhibited. Once EDIT ENABLE has been pressed, editing is enabled
for as long as the user remains in the ACCESS mode. For additional security, if the TMS is in the ACCESS mode for
more than four minutes and detects no user activity on the front panel pushbuttons, the system will time out and
revert back to VIEW mode. Entry back into the ACCESS mode will again require pressing EDIT ENABLE to re-enable
editing.

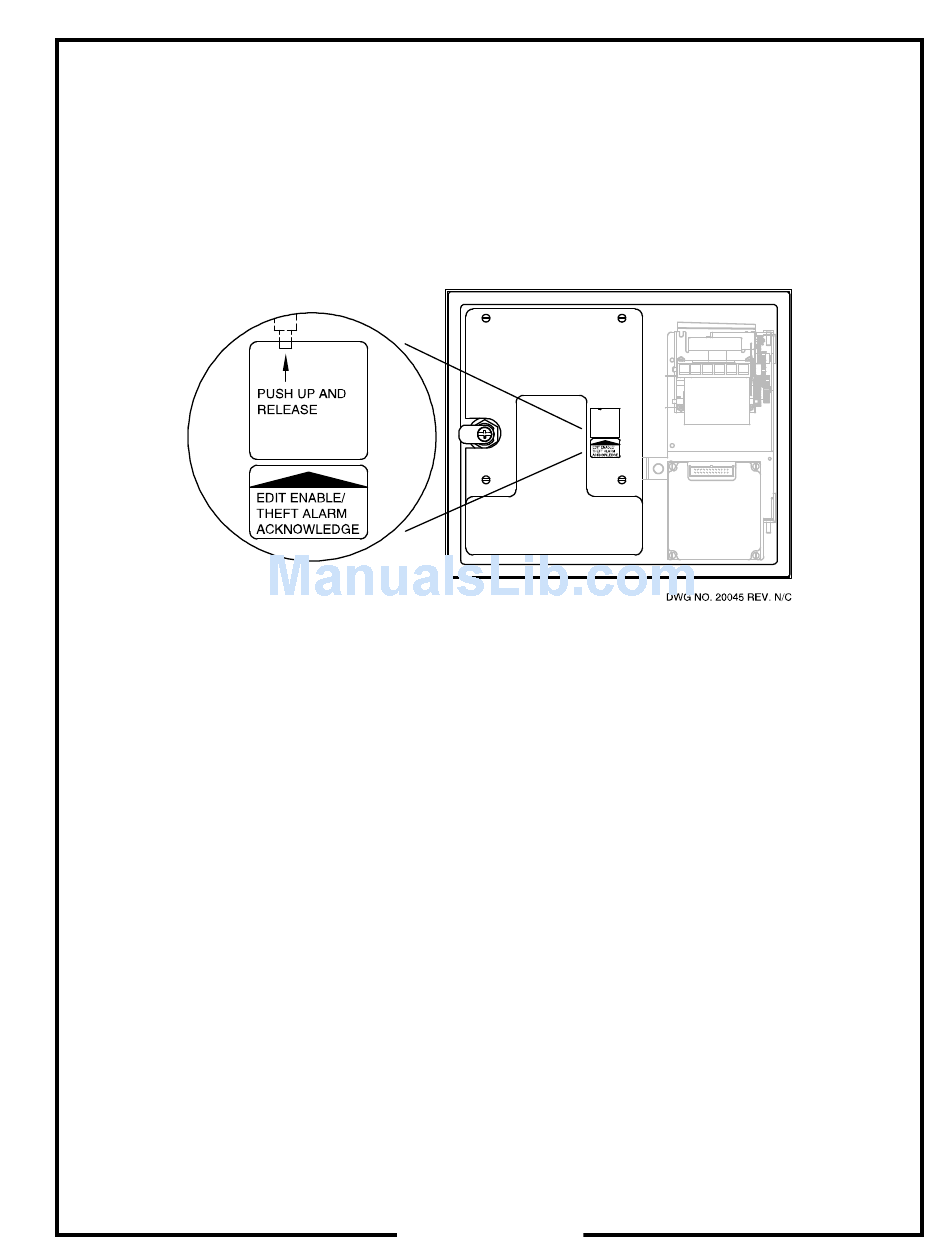

Figure 2.4.2: Edit Enable/Theft Alarm Acknowledge button location
The names associated with pushbutton functions during edit operations are labeled in orange on the front panel as
► ▼
(right arrow), (down arrow), and
►
: Functions as an ENTER key for blinking data. For numeric data, advances the blinking cursor to the right to the
next digit to be changed. Pressing right arrow while at the right-most digit performs the function of ENTER, and
causes the new or changed entry to be stored.
▼
: Decrements the content of the blinking portion of the display. For numeric data this button is used to decrement
the value of the selected digit. For alphanumeric names,
▲
: Increments the content of the blinking portion of the display. For numeric data this button is used to increment
the value of the selected digit. For alphanumeric names,
TMS Operations and Maintenance Manual.docx
PUSH UP AND
RELEASE
EDIT ENABLE/
THEFT ALAR M
ACKNOWLEDGE
▲
(up arrow), as shown in Figure 2.4.1.
EDIT ENABLE/
THEFT ALARM
ACKNOWLEDG E
▼
decrements through a list of name selections.
▲
increments through a list of name selections.
PAGE 13
TMS2000/3000
DWG NO. 20045 REV. N/C
February 12, 2018
