OPERATION & MAINTENANCE MANUAL

1.2 DISPLAY

The front panel display consists of a nine-digit, seven-segment, quasi-alphanumeric super bright LED display,
providing on site viewing of current inventory data, alarms, errors, report logs, as well as, set-up and configuration
data. Five high intensity point LEDs annunciate alarm conditions visible up to 75 feet or 25 meters away from console.
Five additional LED annunciators provide indication of units of measure of the currently selected display data. See
Figure 1.2 below.
TMS 3000 TMS 3000
LEAK LEAK
3. 3 . 8 . 8 .
SP 1 SP 1
SP 2 SP 2
SP 3 SP 3
TANK ID
WATER GROUP ID WATER

1.3 AUDIBLE ANNUNCIATOR

A front panel horn is provided to annunciate both user-selectable alarms as well as communications failures.
The horn can be silenced manually by pressing ANY pushbutton, automatically by eliminating the alarm
condition, or by programming an audible alarm shutoff. Under alarm conditions, the beep rate of the annunciator
varies with the alarm type as follows:
Alarm Group
Tank
Sensor
Contact Closure
System
TMS Operations and Maintenance Manual.docx
TANK MANAGEMENT SYSTEM
8. 3 1 . 8 . 8 . . 0
TANK ID
GROUP ID

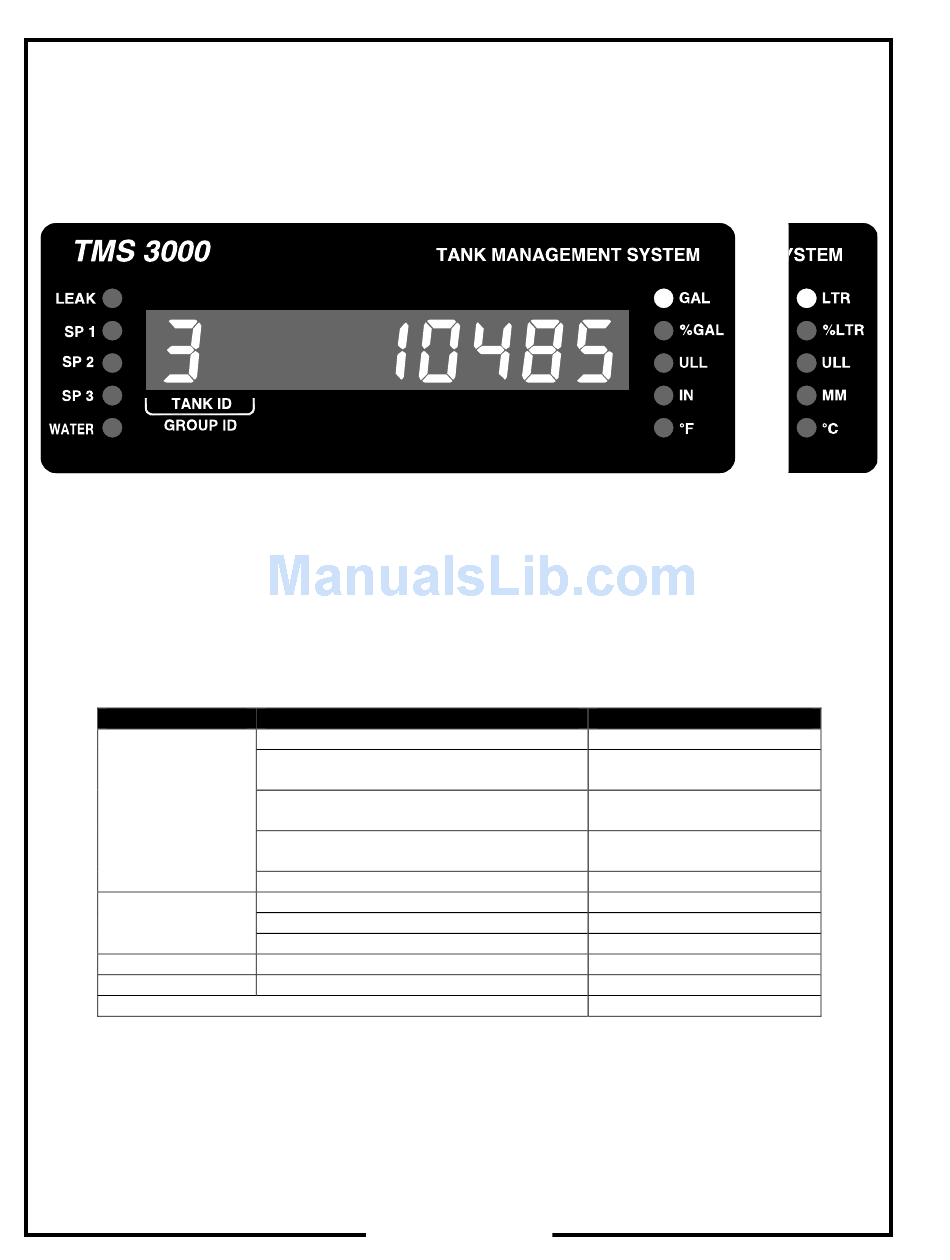

Figure 1.2: TMS Display Layout
Alarm Type
Failed In-Tank LeakTest
3SP Firmware: SP1
6SP Firmware: Critical High, Critical Low
3SP Firmware: SP2
6SP Firmware: High High, Low Low
3SP Firmware: SP3
6SP Firmware: High, Low
Bottom Water
Leak
Point Level (High, Low, etc)
Fault
All
All
PAGE 6
TANK MANAGEMENT SYSTEM
. 4 1 . 8 . 0 . 5 . 4 .
Fast (50ms)
Medium Fast (100ms)
Medium Slow (200ms)
Slow (400ms)
Slow (400ms)
Fast (50ms)
Slow (400ms)
Slow (400ms)
Slow (400ms)
Slow (400ms)
ms = milliseconds
TMS2000/3000
GAL LTR
. 8 . 5 .
%GAL %LTR
ULL ULL
IN MM
°F °C
Beep Rate
