Front Panel Features

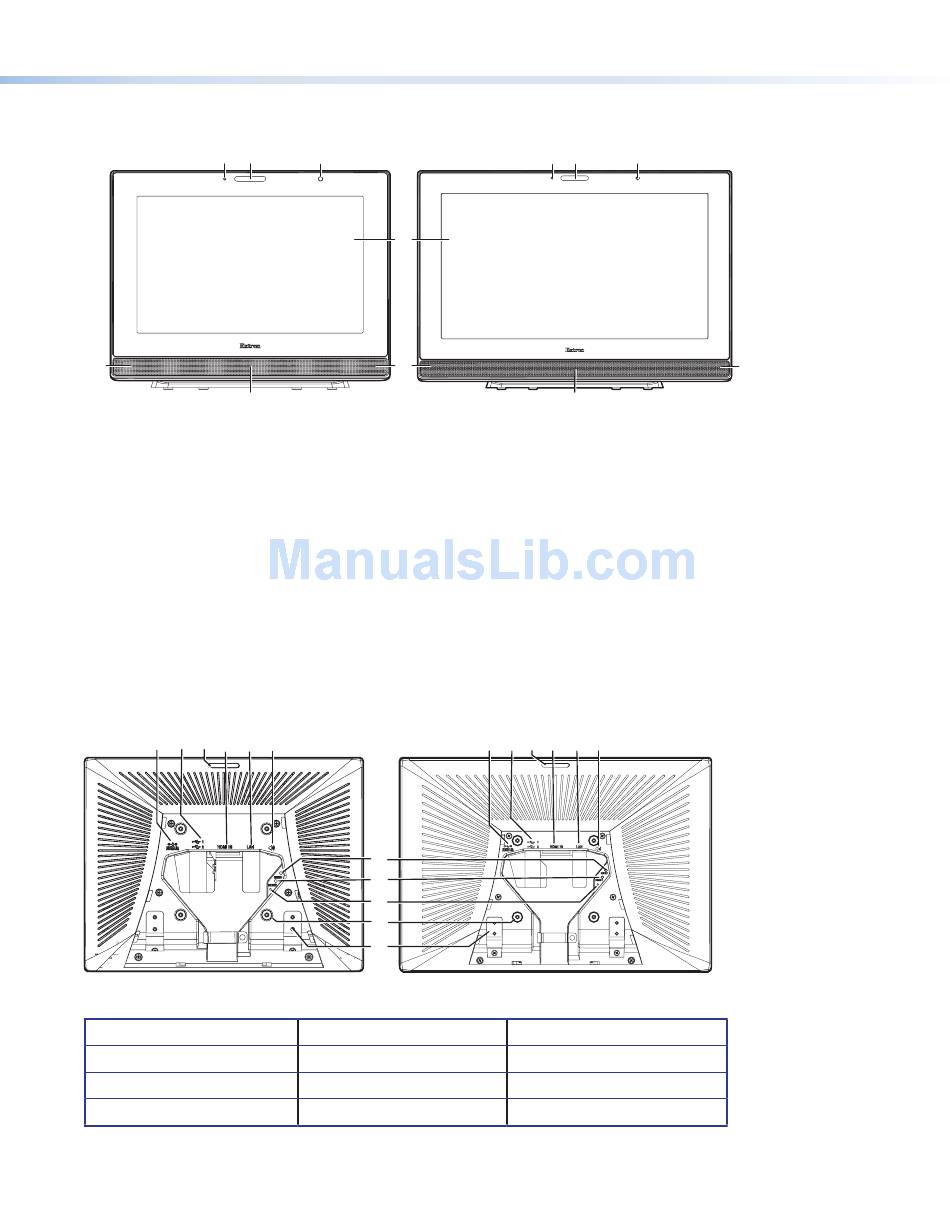

The front panel diagrams for these two products are shown below. They are not to the same scale.
A A
E E
TLP Pro 1220TG
TLP Pro 1220TG (left) and TLP Pro 1520TG (right) Front Panels
Figure 4.
A Communication LED — shows the configuration and connection status of the touchpanel:
Unlit during normal operation (the touchpanel is configured and connected to an IP Link Pro control processor).
z
Blinks red if the touchpanel has been configured but is not connected to an IP Link Pro control processor.
z
Lights red permanently if the touchpanel has not been configured.
z
B
Status light — one LED light bar, above the screen, which can be programmed to provide system feedback.
C Ambient light sensor — monitors ambient light level and adjusts screen brightness.
D
Capacitive touch screen — the TLP Pro 1220TG has a 12.1 inch screen with a 1280x800 resolution. The TLP Pro 1520TG has
a 15.6 inch screen with 1366x768 resolution.
E Speakers — located below the screen, one on each side of the panel. These speakers provide stereo audio for video preview
and audible feedback from button presses.
F Motion sensor — detects motion in front of the touchpanel.
Rear Panel Features
The rear panel diagrams for these two products (with backs removed) are shown below. They are not to the same scale.
A A B B C C D D
TLP Pro 1220TG (left) and TLP Pro 1520TG (right) Rear Panels
Figure 5.
A Power supply input
B USB connectors
C Rear status light
D HDMI input
See the following page for a description of these features.
B B C C
D D
E E
F F
E E F F
G G
H H
I I
J J
K K
E XTP/LAN/PoE input
(2) F Audio output
G Menu button
H Reset button
A A B B
F F
TLP Pro 1520 TG
A A B B C C D D E E F F
I Reset LED
J VESA mounting holes
K Base attachment hinge
