1.2. INSTALLATION

ACTinBOX MAX6 connects to the KNX bus through the included KNX connector.
Once the device is provided with power supply from the KNX bus, both the physical address and the
associated application program can be downloaded.
This actuator does not need any additional external power supply since it is powered through the
KNX bus.
It is described below the functionality of the main elements of the actuator:
Programming button (2): a short press on this button set the actuator in programming
mode, and the associated LED (3) lights red. (Note: If this button is held while plugging the
device into de KNX bus, ACTinBOX MAX6 goes into secure mode. The LED blinks red every
0.5 seconds).
Outputs (1): the terminal blocks with screws (included in the original package) must be
plugged here to allow connecting the different systems to be controlled by the actuator. The
terminal blocks wiring may be carried out before inserting them in the corresponding points.
To obtain more detailed information about the technical features of ACTinBOX MAX6, as well as
security and installation information, please read the actuator Datasheet, included in the original
package of the device and also available at: http://www.zennio.com.
ZENNiO AVANCE Y TECNOLOGÍA

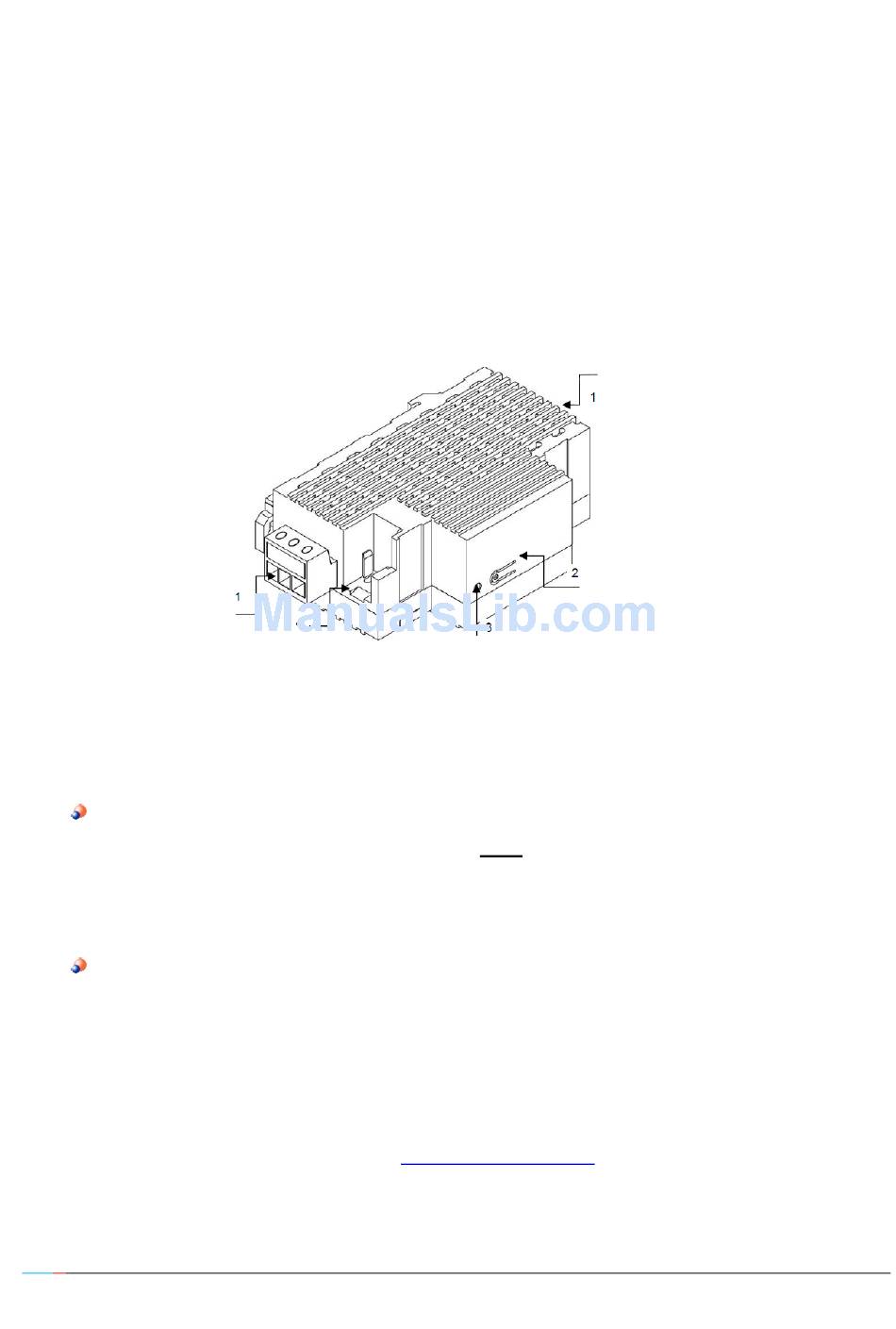

Figure 1.2. ACTinBOX MAX6. Elements scheme
1 - Outputs
2.- Programming button
3.- Programming LED
4.- KNX connector
