Zennio MAXinBOX 16 Technical Documentation

Multi-Function Actuator 16 outputs 16A
ZIO-MB16P
FEATURES
•
4 different configurable blocks: shutter channels (up to 8), individual
outputs (up to 16) and 2-pipe fan coil control (up to 4)
•
Outputs suitable for capacitive loads, maximum 140 µF
•
Manual output operation with push button and LED status indicator
•
20 logic functions
•
Output timing
•
Total data saving on KNX bus failure
•
Integrated KNX BCU
•
Dimensions 67 x 90 x 140 mm (8 DIN units)
•
DIN rail mounting according to IEC 60715 TH35, with fixing clamp
•
Possibility of connecting different phases in adjacent outputs
•
Conformity with the CE directives (CE-mark on the right side)
1. Upper outputs
5. Fixing clamp
Programming/Test button: short press to set programming mode. If this button is held while plugging the device into the KNX bus, it enters the safe
mode. If this button is held for more than 3 seconds, the device enters the test mode.
Programming/Test LED: programming mode indicator (red). When the device enters the safe mode, it blinks (red) every half second. The manual mode
is indicated by the green color. During the start-up (reset or after KNX bus failure) and if the device is not in safe mode, it starts a blue blinking sequence.
GENERAL SPECIFICATIONS
CONCEPT
Type of device
Voltage (typical)
Voltage range
KNX supply
Maximum
consumption
Connection type
External power supply
Operation temperature
Storage temperature
Operation humidity
Storage humidity
Complementary characteristics
Protection class / Overvoltage category
Operation type
Device action type
Electrical stress period
Degree of protection / Pollution degree
Installation
Minimum clearances
Response on KNX bus failure
Response on KNX bus restart
Operation indicator
Weight
PCB CTI index
Housing material / Ball pressure test temperature
¹ Maximum consumption in the worst-case scenario (KNX Fan-In model).
© Zennio Avance y Tecnología S.L.
2. Lower outputs
6. Programming/test button
Voltage
29 VDC (typical)
24 VDC¹
B1 B2 B1 B2
Edition 5
3. Programming/test LED
7. Output status LED indicator
DESCRIPTION
Electric operation control device
29 VDC SELV
21..31 VDC
mA
6.5
10
Typical TP1 bus connector for 0.80 mm Ø rigid cable
Not required
0 °C .. +55 °C
-20 °C .. +55 °C
5 .. 95%
5 .. 95%
Class B
II / III (4000 V)
Continuous operation
Type 1
Long
IP20 / 2 (clean environment)
Independent device to be mounted inside electrical panels with DIN rail (IEC
60715)
Not required
Data saving according to parameterization
Data recovery according to parameterization
The programming LED indicates programming mode (red) and test mode
(green). Each output LED indicates its status
525 g
175 V
PC FR V0 halogen free / 75 °C (housing) - 125 °C (connectors)
B1 B2 A1 A2 B1
Further information
MAXinBOX 16 Plus
TECHNICAL DOCUMENTATION
1
2
3
4

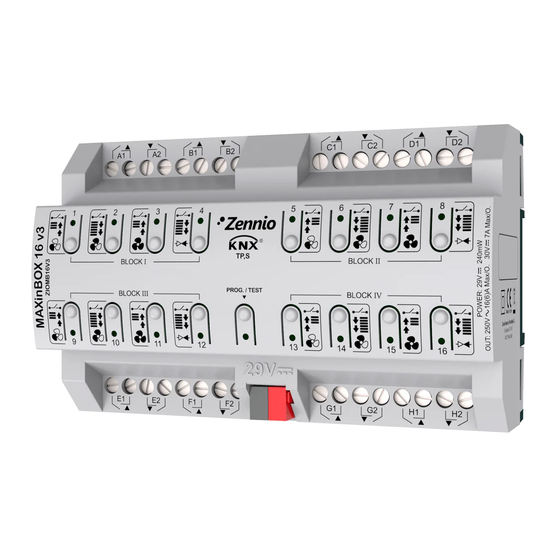

Figure 1: MAXinBOX 16 Plus
