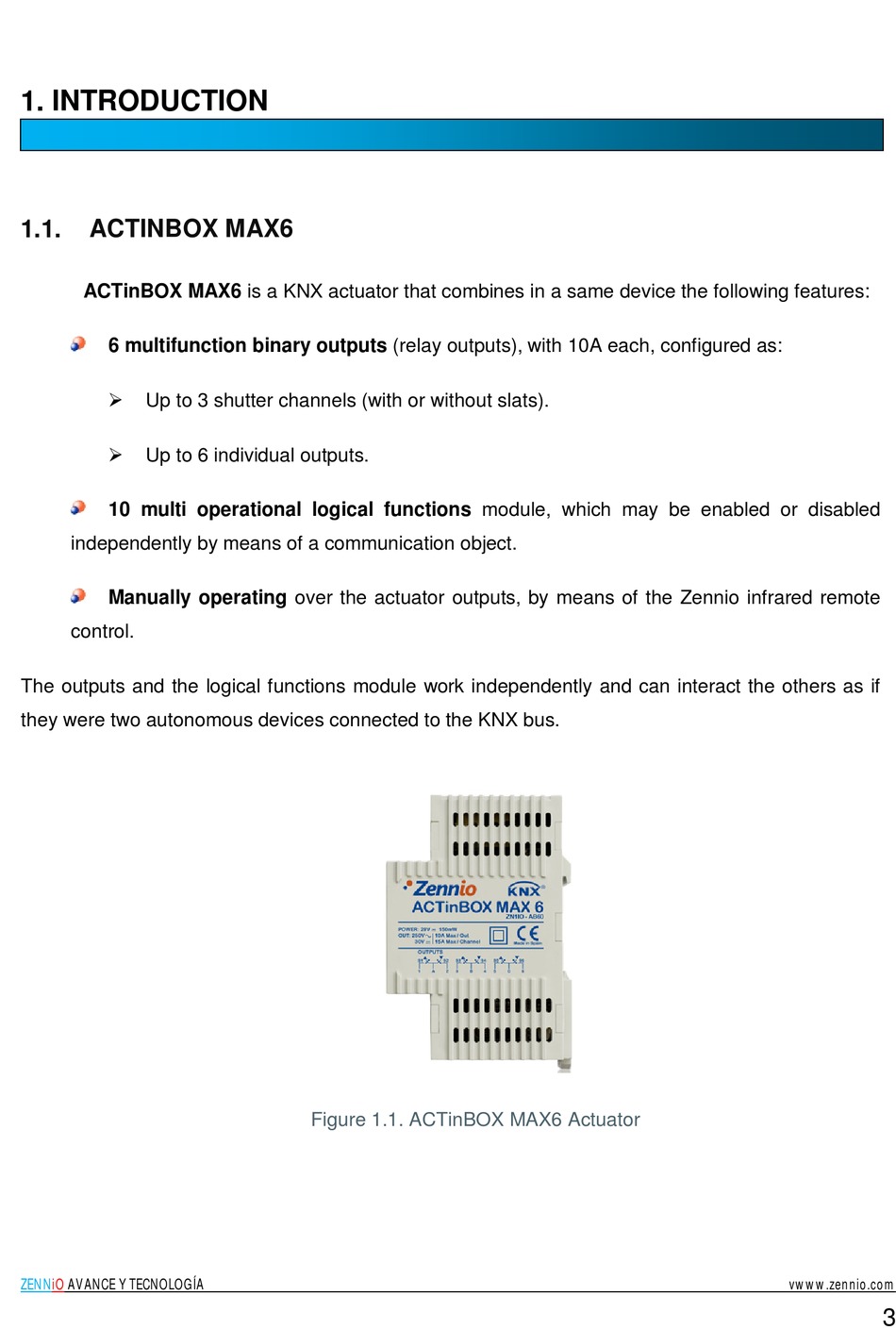

1. INTRODUCTION

1.1.

ACTINBOX MAX6

ACTinBOX MAX6 is a KNX actuator that combines in a same device the following features:
6 multifunction binary outputs (relay outputs), with 10A each, configured as:

Up to 3 shutter channels (with or without slats).

Up to 6 individual outputs.
10 multi operational logical functions module, which may be enabled or disabled
independently by means of a communication object.
Manually operating over the actuator outputs, by means of the Zennio infrared remote
control.
The outputs and the logical functions module work independently and can interact the others as if
they were two autonomous devices connected to the KNX bus.
ZENNiO AVANCE Y TECNOLOGÍA
Figure 1.1. ACTinBOX MAX6 Actuator
