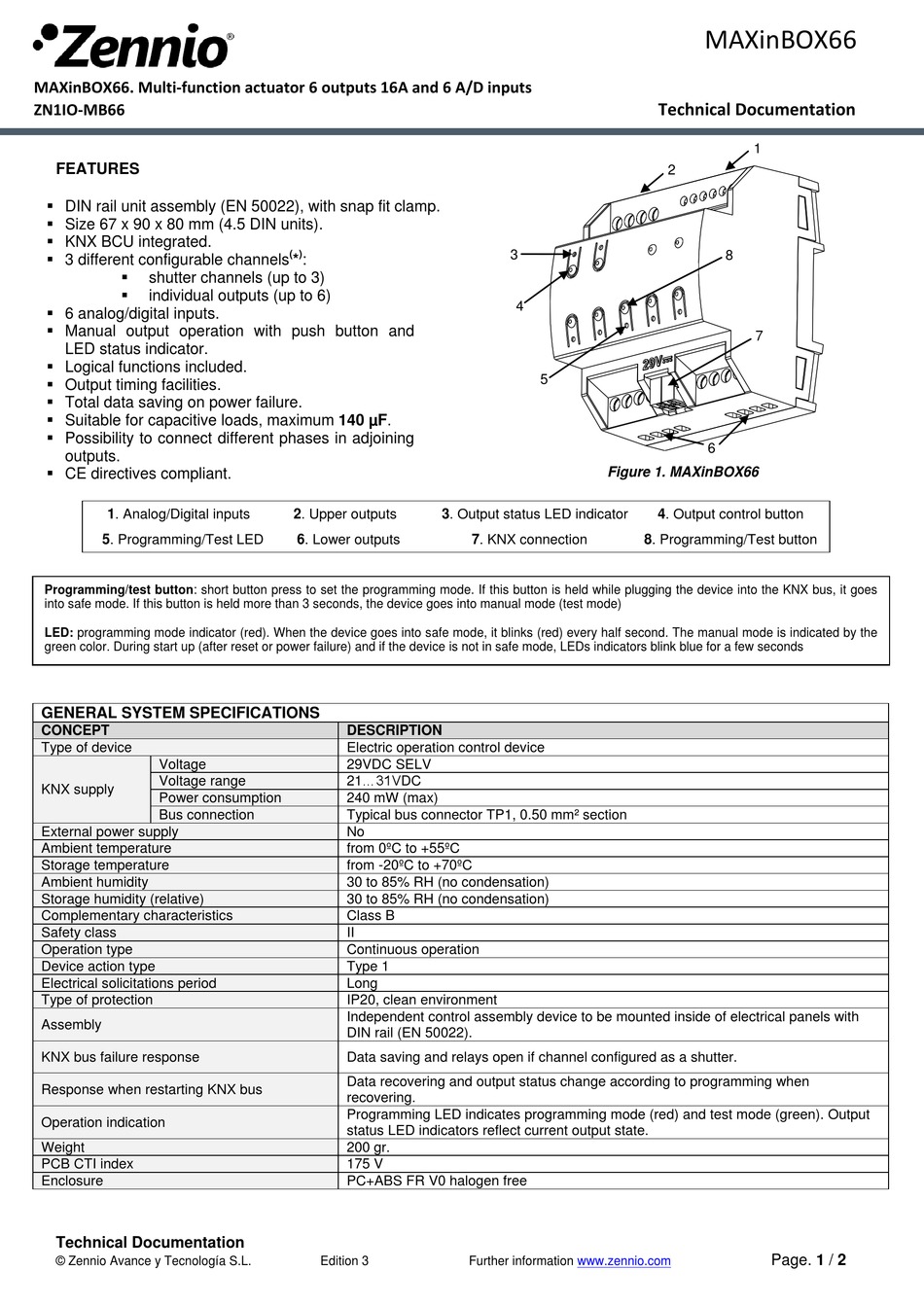

Zennio MAXinBOX66 Technical Documentation

MAXinBOX66. Multi-function actuator 6 outputs 16A and 6 A/D inputs
ZN1IO-MB66

FEATURES

 DIN rail unit assembly (EN 50022), with snap fit clamp.
 Size 67 x 90 x 80 mm (4.5 DIN units).
 KNX BCU integrated.
 3 different configurable channels

shutter channels (up to 3)

individual outputs (up to 6)
 6 analog/digital inputs.
 Manual output operation with push button and
LED status indicator.
 Logical functions included.
 Output timing facilities.
 Total data saving on power failure.
 Suitable for capacitive loads, maximum 140 µF.
 Possibility to connect different phases in adjoining
outputs.
 CE directives compliant.
1. Analog/Digital inputs
5. Programming/Test LED
Programming/test button: short button press to set the programming mode. If this button is held while plugging the device into the KNX bus, it goes
into safe mode. If this button is held more than 3 seconds, the device goes into manual mode (test mode)
LED: programming mode indicator (red). When the device goes into safe mode, it blinks (red) every half second. The manual mode is indicated by the
green color. During start up (after reset or power failure) and if the device is not in safe mode, LEDs indicators blink blue for a few seconds

GENERAL SYSTEM SPECIFICATIONS

CONCEPT
Type of device
Voltage
Voltage range
KNX supply
Power consumption
Bus connection
External power supply
Ambient temperature
Storage temperature
Ambient humidity
Storage humidity (relative)
Complementary characteristics
Safety class
Operation type
Device action type
Electrical solicitations period
Type of protection
Assembly
KNX bus failure response
Response when restarting KNX bus
Operation indication
Weight
PCB CTI index
Enclosure
Technical Documentation
© Zennio Avance y Tecnología S.L.
( )
* :
2. Upper outputs 3. Output status LED indicator
6. Lower outputs
DESCRIPTION
Electric operation control device
29VDC SELV
21...31VDC
240 mW (max)
Typical bus connector TP1, 0.50 mm² section
No
from 0ºC to +55ºC
from -20ºC to +70ºC
30 to 85% RH (no condensation)
30 to 85% RH (no condensation)
Class B
II
Continuous operation
Type 1
Long
IP20, clean environment
Independent control assembly device to be mounted inside of electrical panels with
DIN rail (EN 50022).
Data saving and relays open if channel configured as a shutter.
Data recovering and output status change according to programming when
recovering.
Programming LED indicates programming mode (red) and test mode (green). Output
status LED indicators reflect current output state.
200 gr.
175 V
PC+ABS FR V0 halogen free
Edition 3
3
4
5

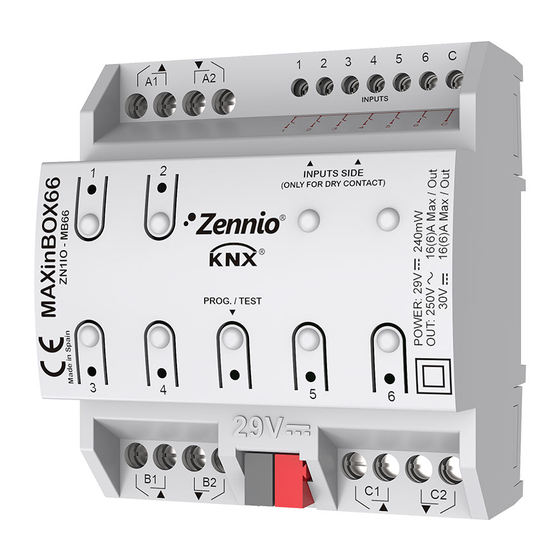

Figure 1. MAXinBOX66
