Summary of Contents for Kino Flo FreeStyle Mini LED Kit
- Page 1 Operation Manual FreeStyle Mini LED & T41 / T21 LED ® (True Match Firmware 4.0) (Camera) CFX-F10 CFX-F481 LED-120X Part No. 3100124 Rev A 10-17-2019...
- Page 2 FreeStyle Mini LED Kit Kit-F10BU FreeStyle Mini LED Kit, Univ FreeStyle Mini LED Kit consists of: 1 FreeStyle Mini Fixture 1 Mounting Plate 1 Extension Cable 1 LED Controller 1 Soft Case FreeStyle Mini Kit Components CFX-F10 FreeStyle Mini LED Fixture...

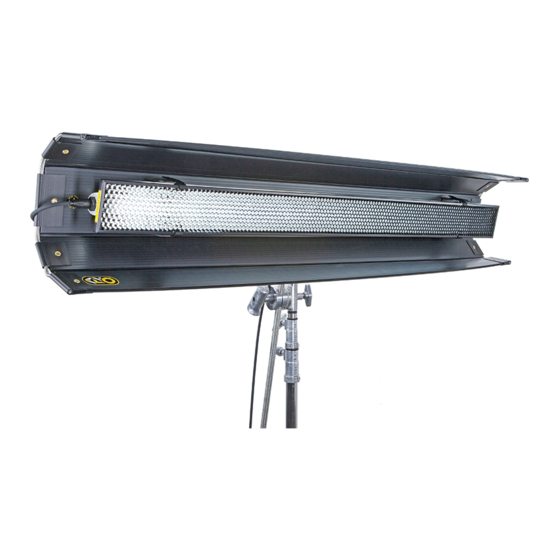

- Page 3 FreeStyle T41/ T21 LED Systems SYS-FT41U FreeStyle T41 LED DMX System, Univ SYS-FT21U FreeStyle T21 LED DMX System, Univ FreeStyle T41 or T21 LED System consists of: 1 FreeStyle T41 or T21 Fixture 1 FreeStyle 4ft (or 2ft) LED Tube 1 Mounting Plate 1 Extension Cable 1 LED Controller...
- Page 4 Power AC Input The FreeStyle 120 LED DMX Controller is powered AC and includes an IEC connection. It also includes a 12ft power cord with a locking IEC connector. The FreeStyle 120 LED DMX has a built-in power supply with universal input from 100-240VAC.
- Page 5 FreeStyle Mini Fixture Assembly The FreeStyle Mini is comprised of an LED Panel and Louver. The Louver is held in place with Velcro Fasteners. FreeStyle T41 / T21 Fixture Assembly The FreeStyle T41 / T21 fixtures are comprised of a Louver and Reflector. The Louver and Reflector are held in place with Velcro fasteners.
-
Page 6: Extension Cable
Extension Cable The FreeStyle T41, T21 and Mini LED fixtures can operate remotely from the controller with extension cable up to 50ft (2 x 25ft). X08-F125 FreeStyle/1 Extension, 25ft FreeStyle T41/T21 The extension cable connects directly to the LED tube. Align arrows on extension cable connector with tube. -
Page 7: Mounting Controller
Mounting Controller The Controller can be mounted to a stand with a ballast mount accessory, MTP-BAL1 and mafer clamp. MTP-BAL1... -
Page 8: Mounting The Fixture
Mounting the Fixture The FreeStyle fixtures have a universal mount. The ball and socket mount allows the fixture to be oriented in a broad range of angles. Align the center pin of the mounting plate to the center hole on the mating plate. Rotate plate clockwise until the four shoulder rivets drop into the receptacle. - Page 9 Applying Louver The Louver is fastened to the FreeStyle T41/T21 fixture with 4 Velcro straps. The FreeStyle Mini Louver is also fastened to the fixture with 4 Velcro Straps.
- Page 10 Mounting LED Tubes FreeStyle LED Tubes can operate inside the fixture or independently with only the wiring harness. The LED Tubes have an aluminum rail that can be used as an access point for mounting accessories: MTP-F100 FreeStyle Tube Mount – Anchor MTP-F101 FreeStyle Tube Mount –...
- Page 11 MTP-F200 MTP-F201 The FreeStyle Tube Ball Mount MTP-F200 includes a baby receiver and works together with the FreeStyle Tube Floor Stand MTP-F201 which includes a baby pin. The FreeStyle Tube Ball Mount MTP-F200 can also be used in conjunction with a baby pipe clamp.
- Page 12 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
- Page 13 Control Panel - Gels/Hue Mode Gels/Hue Mode A) Menu: Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &...
-
Page 14: Rgb Mode
Control Panel - RGB Mode RGB Mode A) Menu: Provides access to menu options such as General settings (RGB Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &... - Page 15 Control Panel - CIE xy CIE xy Mode A) Menu: Provides access to menu options such as General settings (CIE xy mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold or 3 seconds to switch through menus (White, Gels &...
- Page 16 Control Panel - FX (Effects) FX (Effects) Mode FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example: A) FX Option: Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programmed effects as well as control parameters that can be altered.
- Page 17 The camera code (C1 for Arri Alexa), for example, will appear on the main menu between DIM and CCT to designate that a camera setting is active. Note: When the controller is reset, the camera settings will go to Kino Flo Default mode.
-
Page 18: Color Space
Color Space Color Space defines the RGB color space used and only affects color – not Kelvin. It is used in RGB mode and Hue Angle and Saturation. There are a few instances in the FX (Effects) mode that are also affected when color is used. The RGB color space defines the value of Red, Green, and Blue primaries (in CIE xy) and the white point is fixed at 6500 Kelvin. -
Page 19: Fixture Specifications
Fixture Specifications CFX-F10 FreeStyle Mini LED Fixture Weight: 3.5 lb (1.6kg) Dimensions: 15 x 3 x 7.5” (38 x 8 x 19cm) FreeStyle Mini CFX-F481 FreeStyle T41 LED Fixture Weight w/ Tube: 4 lb (1.8kg) Dimensions: 52 x 5.5 x 3.5” w/ 4” barndoors (132 x 14 x 9cm w/ 9cm barndoors) FreeStyle T41 CFX-F241 FreeStyle T21 LED Fixture... - Page 20 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
