Operation Manual
FreeStyle T42/T22 LED
®
(True Match Firmware 5.0)
(RDM)
CFX-F482
FS-48
LED-140X
FS-24
Part No. 3100126 Rev B
05-01-2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FreeStyle T42 LED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kino Flo FreeStyle T42 LED

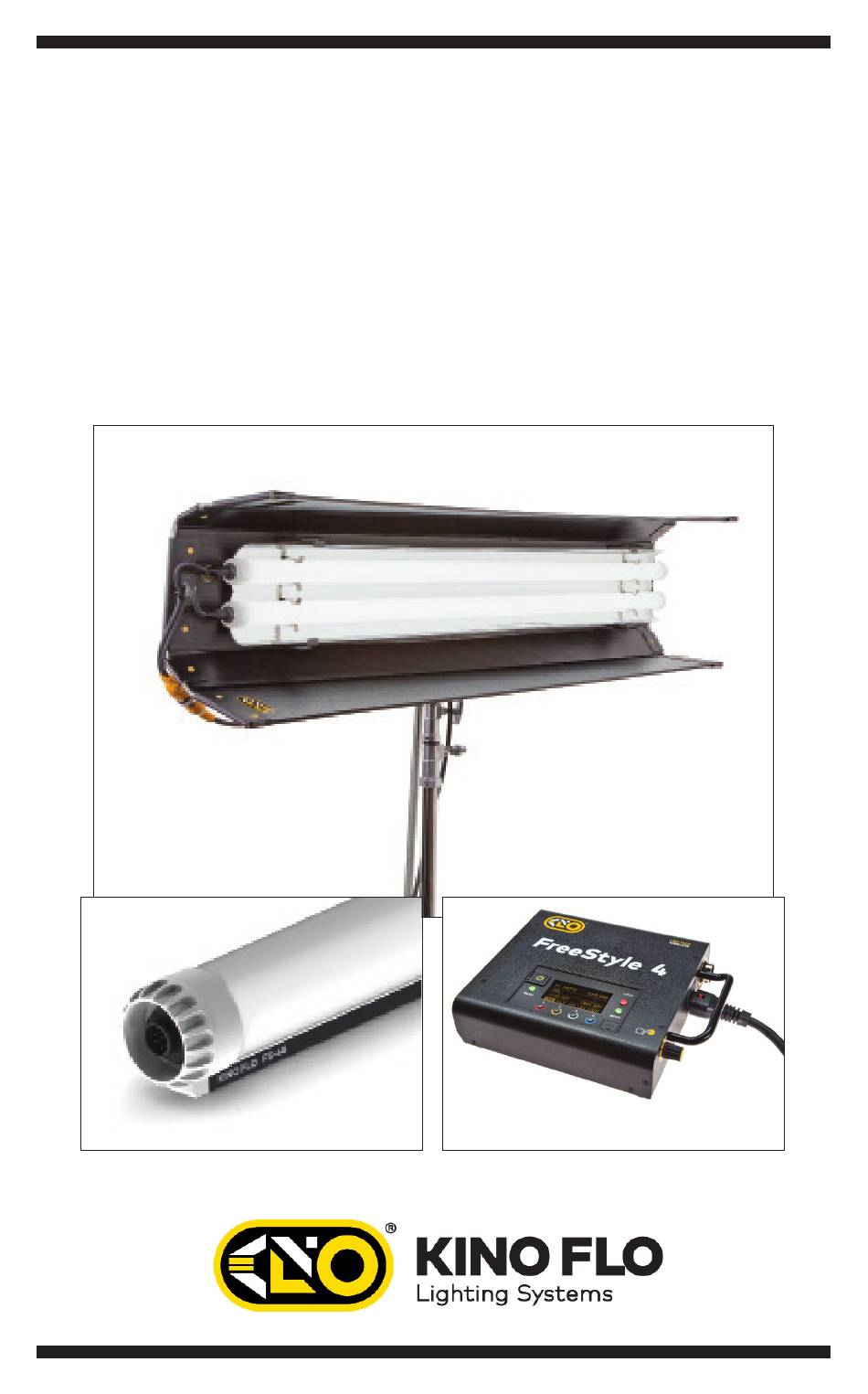

  • Page 1 Operation Manual FreeStyle T42/T22 LED ® (True Match Firmware 5.0) (RDM) CFX-F482 FS-48 LED-140X FS-24 Part No. 3100126 Rev B 05-01-2021...

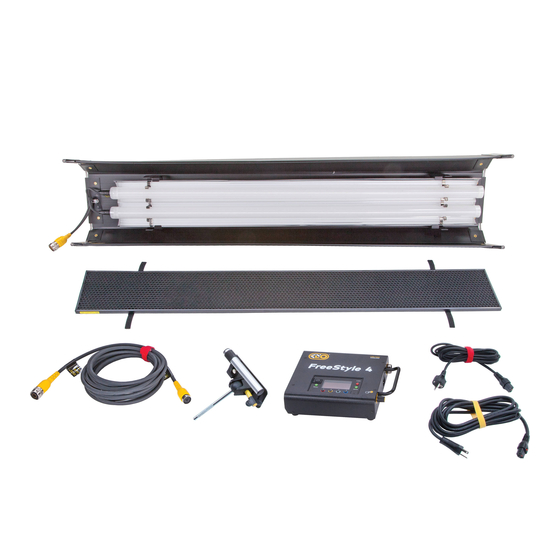

  • Page 2 FreeStyle T42/T22 Systems SYS-FT42U FreeStyle T42 LED DMX System, Univ SYS-FT22U FreeStyle T22 LED DMX System, Univ FreeStyle T42/T22 LED System consists of: 1 FreeStyle T42/T22 Fixture 1 Mounting Plate 1 FreeStyle/4 Extension Cable 1 LED Controller 2 FreeStyle 4ft (or 2ft) LED Tubes...
  • Page 3 Power AC Input The FreeStyle 140 LED DMX Controller is powered AC and includes an IEC connection. It also includes a 12ft power cord with a locking IEC connector. The FreeStyle 140 LED DMX has a built-in power supply with universal input from 100-240VAC.
  • Page 4 FreeStyle Fixture Assembly The FreeStyle T42/T22 fixture is comprised of a Louver, Reflector and Tube Harness. The Louver and Reflector are held in place with Velcro fasteners. The Tube Harness is secured by means of a ¼ turn fastener. The FreeStyle Reflector has a unique design to accommodate the aluminum channel on the back of the FreeStyle tube.
  • Page 5 FreeStyle Harness FreeStyle Harness: Align arrows on harness connector with tube. Push and click into place. To remove harness connector, turn locking ring to the left and pull. Push tubes into the fixture’s tube holder clips. The tubes can operate independent of the fixture allowing them to be built into sets or custom soft boxes or hand- held as a single tube for an eye-light.
  • Page 6: Extension Cable

    Extension Cable The FreeStyle LED fixture can operate remotely from the controller with the extension cable up to 50ft (2 x 25ft). Remote operation of the controller provides more rigging options. To connect Harness to Extension Cable, align oval Logos on the Harness and Exten- X12-F425 sion.
  • Page 7: Mounting Controller

    Mounting Controller The Controller can be mounted to a stand with a ballast mount accessory, MTP-BAL1 and mafer clamp. MTP-BAL1...
  • Page 8: Mounting The Fixture

    Mounting the Fixture The standard mount (MTP-KG41) comes with a 3/8” Lollipop that clamps into a grip head. The ball and socket mount allows the fixture to be oriented in a broad range of angles. Align the center pin of the mounting plate to the center hole on the mating plate.
  • Page 9 Mounting LED Tubes FreeStyle LED Tubes can operate inside the fixture or independently with only the wiring harness. The LED Tubes have an aluminum rail that can be used as an access point for mounting accessories: MTP-F100 FreeStyle Tube Mount – Anchor MTP-F101 FreeStyle Tube Mount –...
  • Page 10 MTP-F200 MTP-F201 The FreeStyle Tube Ball Mount (MTP-F200) includes a baby receiver and works together with the FreeStyle Tube Floor Stand (MTP-F201) which includes a baby pin. The FreeStyle Tube Ball Mount (MTP-F200) can also be used in conjunction with a baby pipe clamp.
  • Page 11 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
  • Page 12 Control Panel - Gels/Hue Mode Gels/Hue Mode A) Menu: Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &...
  • Page 13: Rgb Mode

    Control Panel - RGB Mode RGB Mode A) Menu: Provides access to menu options such as General settings (RGB Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &...
  • Page 14 Control Panel - CIE xy CIE xy Mode A) Menu: Provides access to menu options such as General settings (CIE xy mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold or 3 seconds to switch through menus (White, Gels &...
  • Page 15 Control Panel - FX (Effects) FX (Effects) Mode FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example: A) FX Option: Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programmed effects as well as control parameters that can be altered.
  • Page 16 The camera code (C1 for Arri Alexa), for example, will appear on the main menu between DIM and CCT to designate that a camera setting is active. Note: When the controller is reset, the camera settings will go to Kino Flo Default mode.
  • Page 17: Color Space

    Color Space Color Space defines the RGB color space used and only affects color – not Kelvin. It is used in RGB mode and Hue Angle and Saturation. There are a few instances in the FX (Effects) mode that are also affected when color is used. The RGB color space defines the value of Red, Green, and Blue primaries (in CIE xy) and the white point is fixed at 6500 Kelvin.
  • Page 18 Accessories SYS-BK12 Block/KF21 Single Battery System, 140Whr, 28.8V (2 x Battery) FIX-F482 FreeStyle T42 Fixture Shell Only FIX-F242 FreeStyle T22 Fixture Shell Only HAR-FS2 FreeStyle T42/T22 Harness LVR-SL490-P FreeStyle T42 Louver/HP, 90° LVR-FT2290-P FreeStyle T22 Louver/HP, 90° MTP-901 Savior Mini Clamp & Lock Screw Pin (16mm) MTP-902 KF/LED Controller Mount Assembly 2...
  • Page 19 MTP-F100 FreeStyle Tube Mount – Anchor MTP-F101 FreeStyle Tube Mount – Baby Pin MTP-F102 FreeStyle Tube Mount – Wall Plate MTP-F103 FreeStyle Tube Mount – Hanging Kit 4pk MTP-F103W FreeStyle Tube Mount – Hanging Wire, 50ft MTP-F200 FreeStyle Tube - Ball Mount MTP-F201 FreeStyle Tube - Floor Mount MTP-BG41...
  • Page 20 MTP-BG41S KinoGrip 41K Mount w/ Baby Receiver Short (16mm) MTP-BAL1 Kino Bal/Led Controller Mount (16mm) MTP-BRA Baby Right Angle Offset (5/8” Pin) MTP-L Kino 41 Lollipop w/ 3/8” Pin (10mm) MTP-LBC Kino 41 Lollipop w/ Baby Rcvr Curve (16mm) MTP-LBS Kino 41 Lollipop w/ Baby Rcvr Short (16mm) REF-F482 FreeStyle T42 Reflector...
  • Page 21 STD-M30 Medium Duty, 3-Rise 30” STD-M36 Medium Duty, 3-Rise 36” STD-D1 Reverse Stand Cases KAS-FT54S FreeStyle T44 Fixture (3) Ship Case KAS-FT54L FreeStyle T44 Fixture (5) Ship Case KAS-FT23 FreeStyle T24 Fixture (3) Ship Case KAS-KFC Ballast and Cable Crate w/ Lid...
  • Page 22: Fixture Specifications

    Fixture Specifications CFX-F482 FreeStyle T42 LED Fixture Weight w/ Tubes: 7.7 lb (3.5kg) Dimensions: 52 x 3.5 x 8” w/ 5.5” barndoors (132 x 9 x 20cm w/ 14cm barndoors) FreeStyle T42 CFX-F242 FreeStyle T22 LED Fixture Weight w/ Tubes: 4.7 lb (2.1kg) Dimensions: 28 x 3.5 x 8”...
  • Page 23 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
