1MRS757729
Issued: 16.11.2012
Version: A/16.11.2012
4.4
MicroSCADA Pro
Product Guide

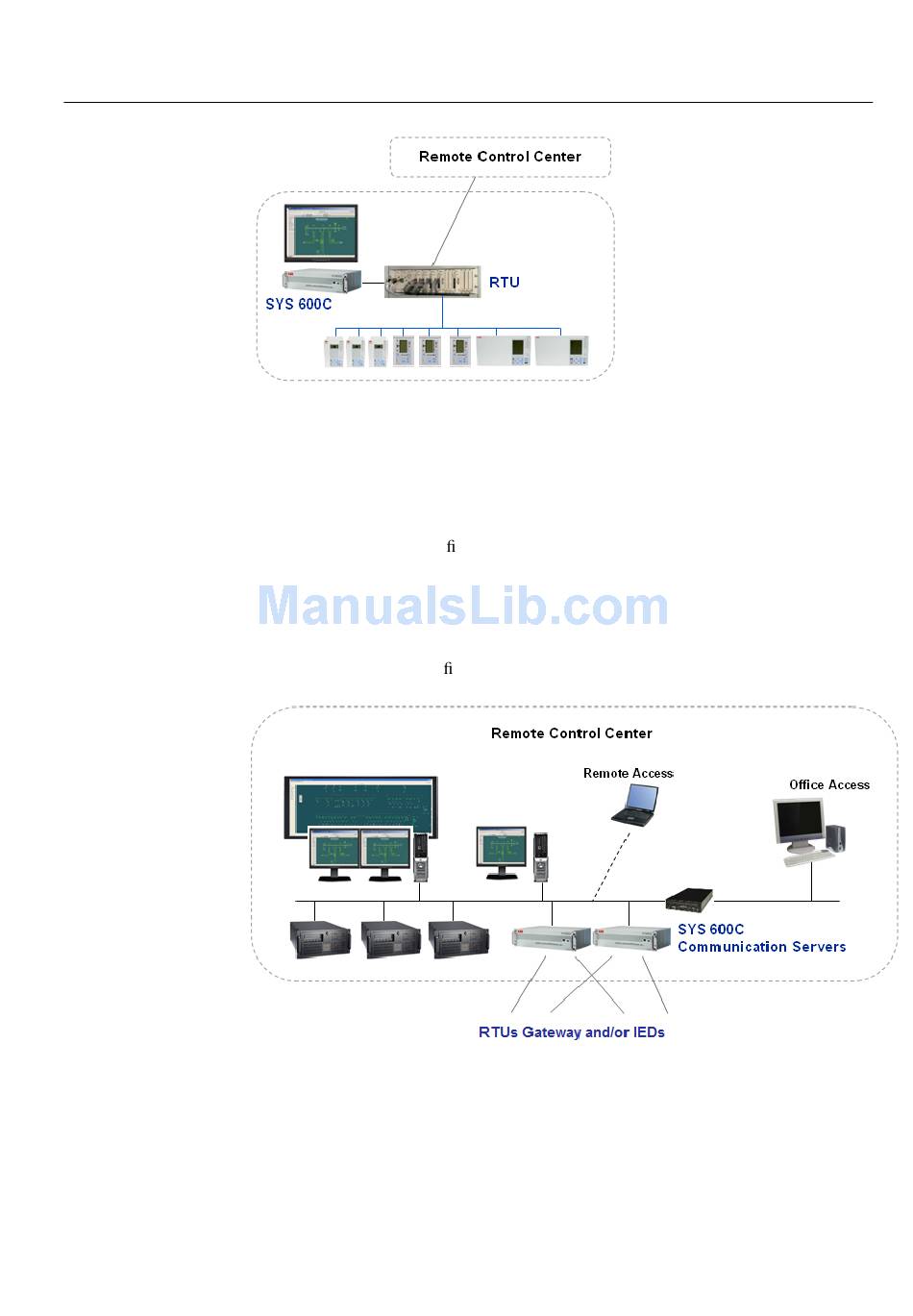

Figure 4.8: SYS 600C as Control System HSI for RTU

SYS 600C as Communication Server

SYS 600C can function as a powerful Communication Server in medium and large
Remote Control Center con gurations as well as in large Substation Automation
applications.
SYS 600C with its large number of serial communication ports and LAN ports in
combination with the solid-state technology offers an excellent Communication Server
solution. The Communication Server solution is offered and available as a part of larger
SYS 600 or SYS 600C con gurations as shown in Figure 4.9 and Figure 4.10.
Figure 4.9: SYS 600C as Communication Server in a Remote Control Center system
SYS 600C 2.93
27
