4.3
MicroSCADA Pro
Product Guide

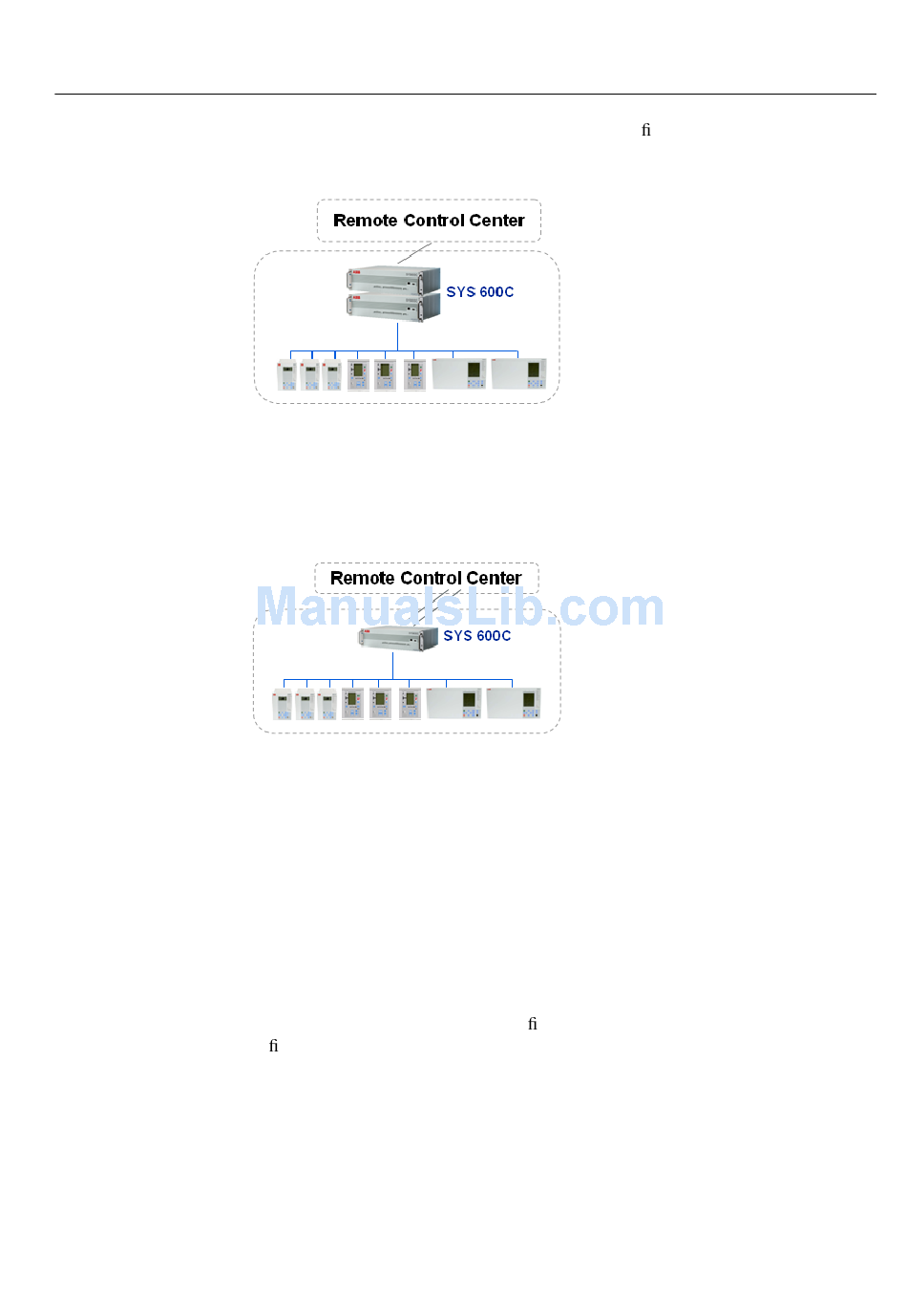

For increased availability, SYS 600C can easily be con gured as a redundant
Communication Gateway as shown in Figure 4.3.
Figure 4.3: SYS 600C as Redundant Communication Gateway
SYS 600C also supports redundant remote communication lines between SYS 600C and
Remote Control Center as shown in Figure 4.4.
Figure 4.4: SYS 600C as Communication Gateway with redundant communication lines to Remote
Control Center

SYS 600C as Control System HSI

SYS 600C HSI provides numerous options for monitoring and controlling a connected
process. SYS 600C handles both the HSI functionality and the Communication Gateway
functionality. In this way SYS 600C can act both as a Communication Gateway, enabling
a remote connection to control centers, as well as the local control system and HSI user
interface on a station level.
The SYS 600C HSI function can be con gured as a single and local Control System HSI
con guration as shown Figure 4.5.
SYS 600C 2.93
25
