or Data Object. The following data types can be logged in the Historian: Process Objects:
binary input (BI), binary output (BO), double binary input (DB), digital input (DI), digital
output (DO), analog input (AI), analog output (AO), pulse counter (PC), Data Objects
with numerical value.
Historian logs the raw data (all updates) from the sources during 8 days. The raw data
is then re ned into long term storage like 1 minute average, 2 minute maximum, 1 hour
minimum, etc.
Visualisation
Visualisation of the logged and re ned data is done by means of various graphs and
tables. The graphs can be freely con gured in terms of graphical representation, axes
types and orientation, update rates, etc. The numerical tables are utilising Microsoft
Excel and provides flexible con guration and data manipulation possibilities.

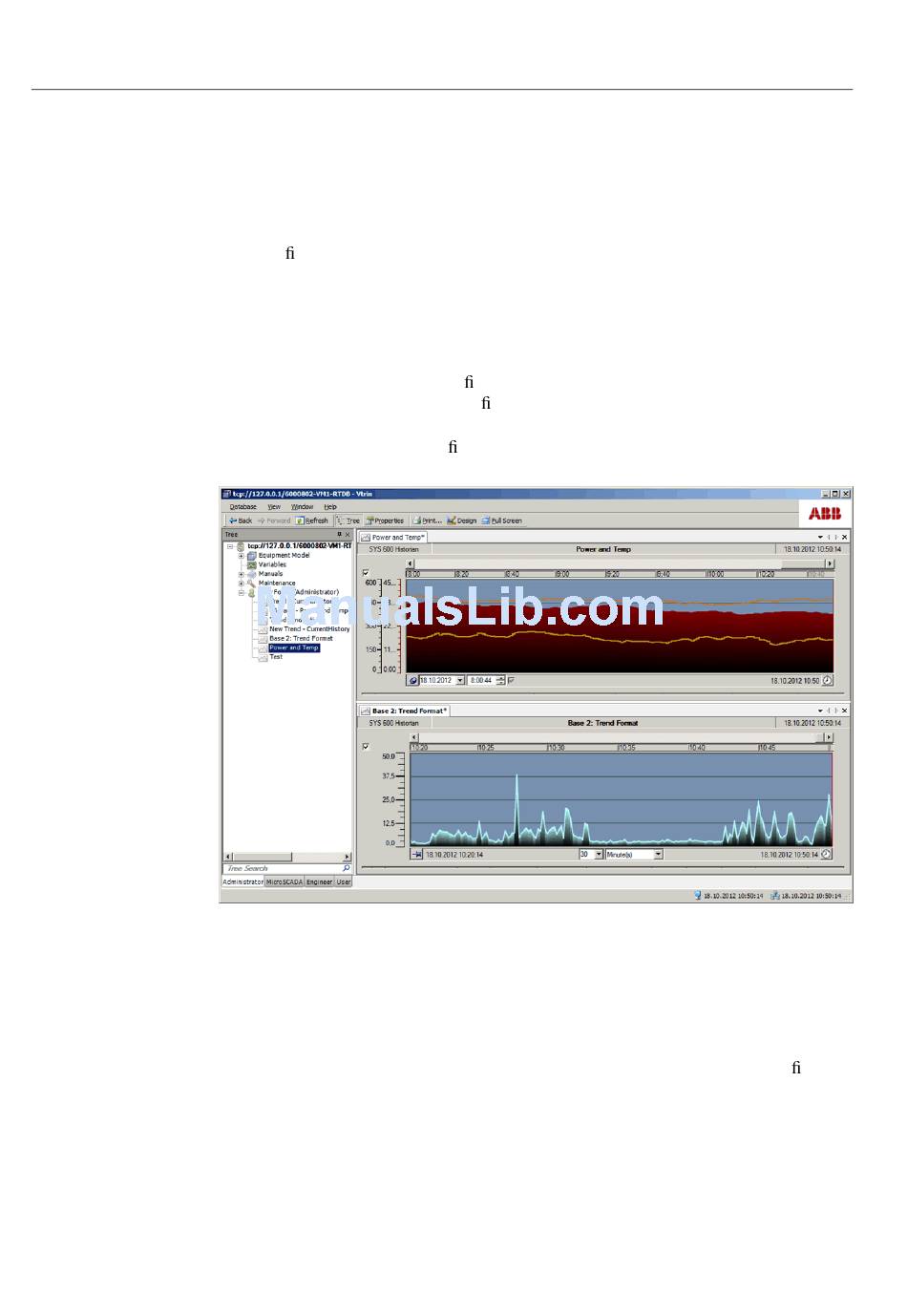

Figure 3.10: An example of Historian graphs
User management
Users of the system are given access rights according to the needs. The user sessions
can be limited in time. The users can be given the right to view, control, or con gure
the different parts of the system or process.
1MRS757729
