MicroSCADA Pro
Product Guide
Trends Display
The Trends Display is used for trend analyses and for showing measured values in the
form of a curve or a table.
A trend is a time-related follow-up of process data. All types of process objects, for
example in and out data, binary, analog and digital data can be illustrated as trends.

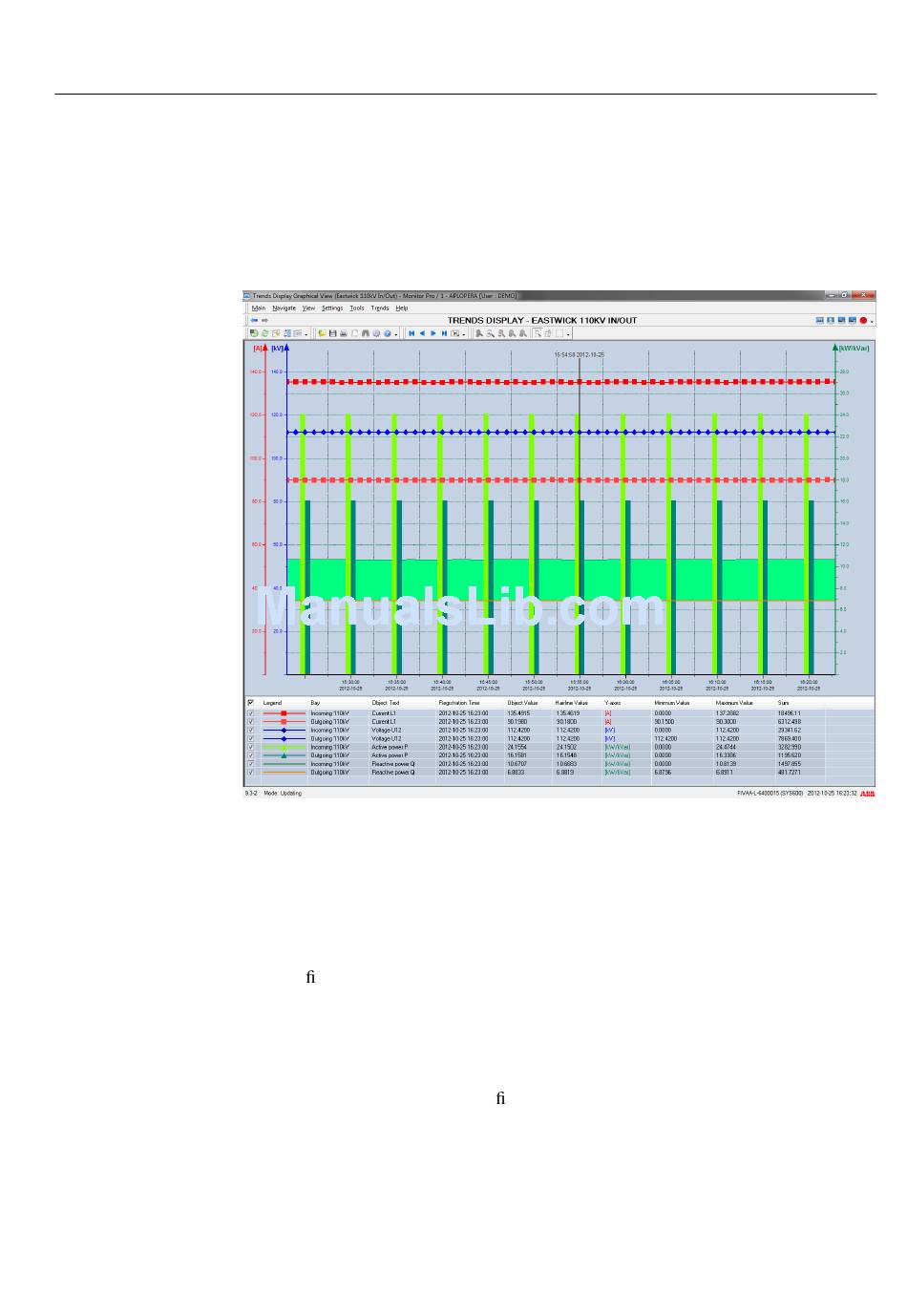

Figure 3.7: The Trends Display
The Trends Display contains the following features:
•
Graphical or tabular view
•
Zooming mode
•
Scrolling with scroll bars and panning
•
Con gurable axes and line properties
•
Using legend
•
Using hairline
•
Update interval options from 10 seconds to 10 minutes
•
Calculation formulas; direct, mean, sum, integral and difference
•
Clearing trend data by the user
•
Save, Open and Delete precon gurations
•
Printout option
•
Update/Frozen modes
