Summary of Contents for MONARCH INSTRUMENT PLS

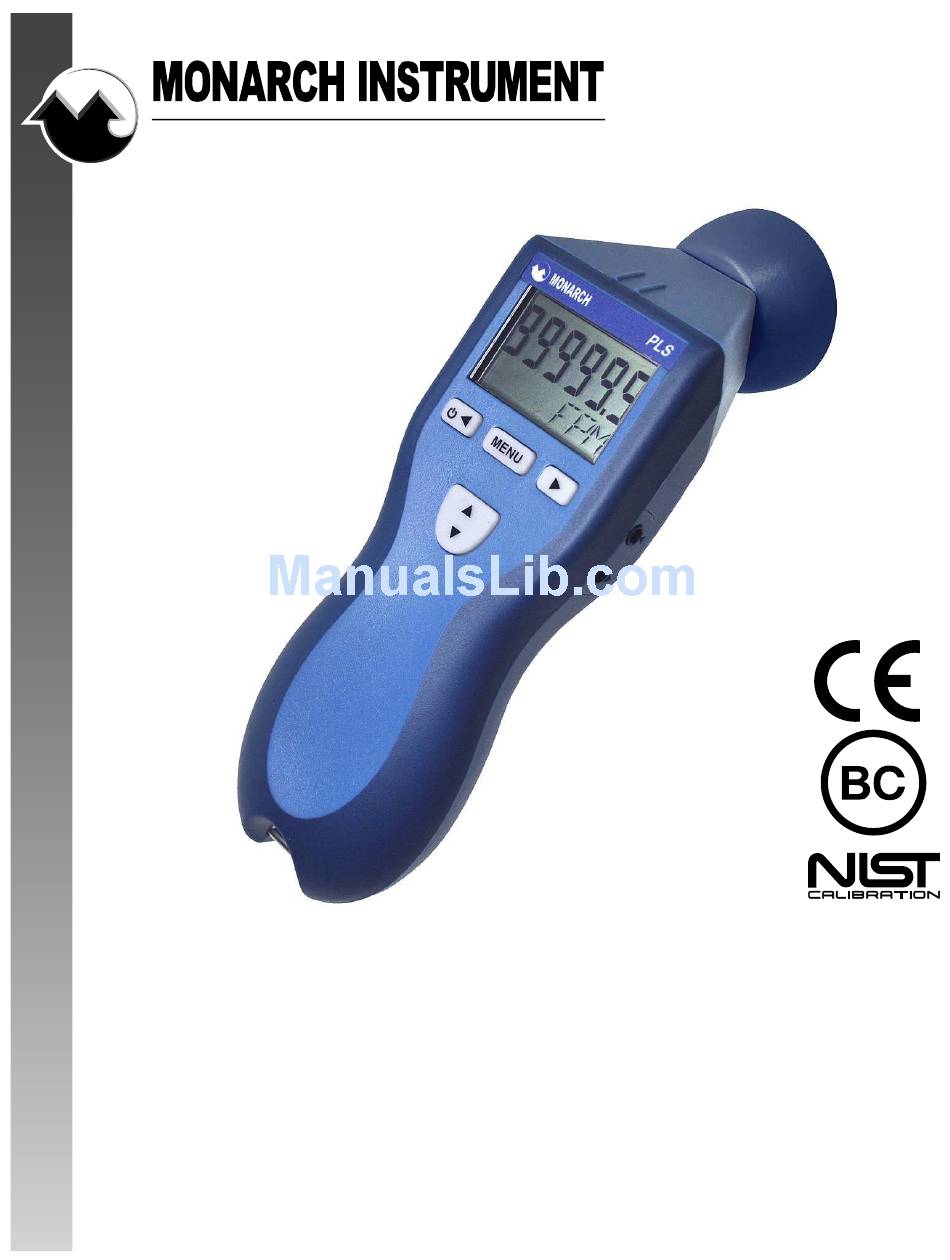

- Page 1 Instruction Manual Pocket LED Strobe Portable LED Stroboscope 15 Columbia Drive • Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
- Page 2 Safeguards and Precautions Read and follow all instruc ons in this manual carefully, and retain this manual for future reference. Do not use this instrument in any manner inconsistent with these opera ng instructions or under any conditions that exceed the environmental specifi...
-
Page 3: Table Of Contents
This product may be returnable to your distributor for recycling - contact the distributor for details. Monarch Instrument’s Limited Warranty applies. See www.monarchinstrument.com for details. Warranty Registration and Extended Warranty coverage available online at www.monarchinstrument.com. - Page 4 8.2 Charging the Ba eries ..........15 8.3 Ba ery Disposal ............16 9.0 SPECIFICATIONS ............17 10.0 SENSORS / ACCESSORIES and PARTS......19 Monarch Instrument holds the following US trademarks and registrations, all ® rights reserved: Track-It™, Nova-Pro , Nova-Strobe™, Data-Chart™ ©2018...
-
Page 5: Introduction

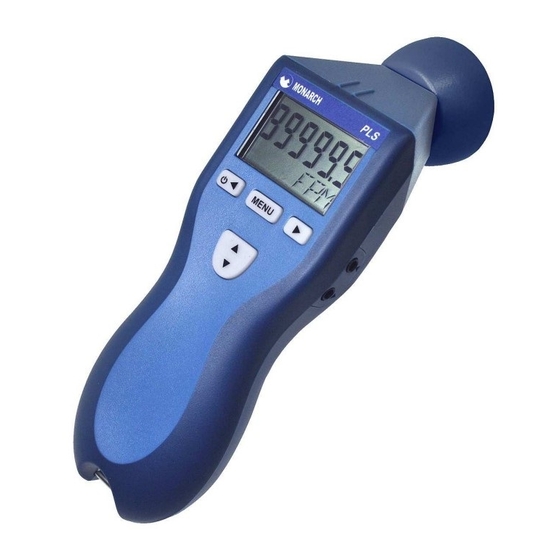

INTRODUCTION The Pocket LED Strobe (PLS) is a rugged, portable battery powered LED (Light Emitting Diode) stroboscope used for inspection and to stop motion to determine the speed of rotating objects. The unit is ergonomically designed for comfortable hand held operation or it may be mounted on a tripod using the integral ¼... -
Page 6: User Interface
USER INTERFACE The Pocket LED Strobe has a two-line backlit alpha-numeric liquid crystal display (LCD) and a four-key keypad that enables the user to control the operation of the unit. The user interface is described in Figure 2 and Table 2. MENU Figure 2 Pocket LED Strobe User Interface Table 2 Pocket LED Strobe User Interface... -
Page 7: Getting Started
GETTING STARTED The Stroboscope may be hand held or mounted on a tripod or other user supplied bracket using the ¼-20 UNC bushing on the underside of the unit. 3.1 Power The LED Strobe is battery powered and has internal rechargeable batteries. -
Page 8: Modes Of Operation
Common (GND) Signal Input +3.2V Out to +3.2V Out to Sensor Sensor Signal Input Common (GND) Figure 3 Input Connector Detail (Stereo plug) Common (GND) Signal Output Common (GND) Signal Output Figure 4 Output Connector Detail (Mono plug) With no external input, the output jack provides a TTL compatible pulse from the strobe’s internal oscillator. -
Page 9: Internal Strobe Mode
4.1 Internal Mode The strobe is in the Internal Mode when nothing is plugged into the input jack. In the internal mode the strobe generates its own timing signals and the user can adjust the fl ash rate as described below. 4.1.1 Adjusting the Flash Rate - RPM The fl... -
Page 10: External Mode
4.2 External Mode In the External Input Mode the user can’t make any flash rate adjustments. The fl ash rate is a function of the input signal. This mode is used to synchronize the fl ash to an external event (for example, from an optical sensor) to stop or freeze motion. -
Page 11: Mode
second press will enter the Setup Mode. The top line of the display will show SEtUP and the bottom line will show the setup options. Use the UP/DOWN button ▲▼ to scroll through the setup options. Press the MENU button at any time to select that setup option. -
Page 12: Brite (Brightness)
5.2 BRITE (Brightness) Adjust the fl ash pulse width and consequently the brightness. See Section 6.0. When the display shows: SEtUP BRITE Press the MENU button to enter. Width can be set in degrees or microseconds. DEG - Set the fl ash width in degrees from 0.1° to 10.0°. Use the UP/ DOWN button ▲▼... -
Page 13: Load
memory location, press MENU to select the location. The fl ash rate is shown on the top row, memory location on the bottom row (see below). 3600 SM 3 (SM = Save Memory) Press MENU to save and EXIT OUT OF MENU. The unit will indicate DONE when the value has been changed. -
Page 14: Decpt (Decimal Point)
Press MENU to select, use the UP/DOWN button ▲▼ to select on or off. As the status changes, the backlight will activate accordingly. BKLIT Press MENU to save and exit back to the main menu. 5.7 DECPT (Decimal Point) Set the number of decimal places to display. When the display shows: SEtUP DECPT Press MENU to select, use the UP/DOWN button ▲▼... -
Page 15: Strobe Brightness
STROBE BRIGHTNESS The strobe’s brightness depends on how wide the strobe’s fl ash pulse is; the wider the pulse, the brighter the fl ash from the LEDs appears to be. There is however, a downside to the wider pulses. All strobes work by giving short bursts of light (the pulse width) at a rapid repetition rate (the fl... -
Page 16: Brightness In Degrees Of Rota On
When setting the pulse duration in degrees, what you set is what you get. Refer to the image on the right for the difference between a 1° and 5° (of rotation) fl ash duration. There are two methods of adjusting the fl... -
Page 17: Using The Stroboscope To Measure Rpm
remains constant*. The degree of rotation visible changes to keep the pulse width of the fl ash constant*. *Note: There are two limits maintained by the strobe – the pulse can never be greater than 1300 µs nor can it exceed 10° of rotation. The strobe automatically adjusts these values as the fl... - Page 18 of the actual speed. You will see 2 images of the key way at 2 times the actual speed, 3 key way at 3 times, etc. The FPM equals the shafts Revolutions Per Minute (RPM) at the highest fl ash rate that gives only one stationary image of the key way.
-
Page 19: Batteries
BATTERIES The Pocket LED Strobe is fi tted with a rechargeable Lithium Ion battery pack. These batteries are prone to self-discharge over time. For maximum performance, charge the batteries prior to use and do not store in hot loca- tions. The strobe uses an external charger. Allow 3-5 cycles of charging and discharging for batteries to reach full capacity. -
Page 20: Ba Ery Disposal
CAUTION: Use of rechargers other than the one supplied (Model LBC-U) will damage the stroboscope and void the warranty. DO NOT LEAVE A CHARGER THAT IS NOT PLUGGED INTO THE AC POWER CONNECTED TO THE STROBE. When charging, the strobe will indicate CHRGE in the bottom right of the display when turned on and then it will shut off. -
Page 21: Specifications
Specifi cations Internal Mode: Flash Range 30 to 300,000 FPM (Flashes Per Minute), 0.5 to 5000Hz Flash Rate Accuracy 0.005% of setting or ± last digit Flash Rate Resolution 0.01 to 1 FPM (menu selectable), 0.1 FPM resolution above 9,999.99 FPM, 1 FPM resolution above 99,999.9 Display Update Rate Instantaneous... - Page 22 Flash Duration Adjustable 0.5 to 1300 microseconds or 0.1 to 10 degrees of rotation (auto adjusts with fl ash rate) Input Power Battery powered: Internal Li-Ion Rechargeable Batteries 3.6Vdc Light Output Average: 3300 LUX @6000 FPM 12” from target @ 2° Run Time 5 - 6 hours typical at 6000 FPM, and 2.8°...
-
Page 23: Sensors / Accessories And Parts
10.0 SENSORS / ACCESSORIES and PARTS Sensors / Accessories: Model Description 6180-029 ROLS-P Remote Optical Laser Sensor with 8 foot [2.5 m] cable for triggering strobe 6180-057 ROS-P Remote Optical Sensor with 8 foot [2.5 m] cable for triggering strobe 6180-057-25 ROS-P-25 Remote Optical Sensor with 25 foot... - Page 24 Check out some of our other product lines… Handheld Panel Portable Machine Vision Tachometers Tachometers Stroboscopes Stroboscopes Speed Sensors Temperature/ Vibration Meters Humidity Sensors Paperless Recorders Track-It™ Data Loggers Printed in the U.S.A. Copyright 2018 Monarch Instrument, all rights reserved 1071-4235-114 - 0218...
