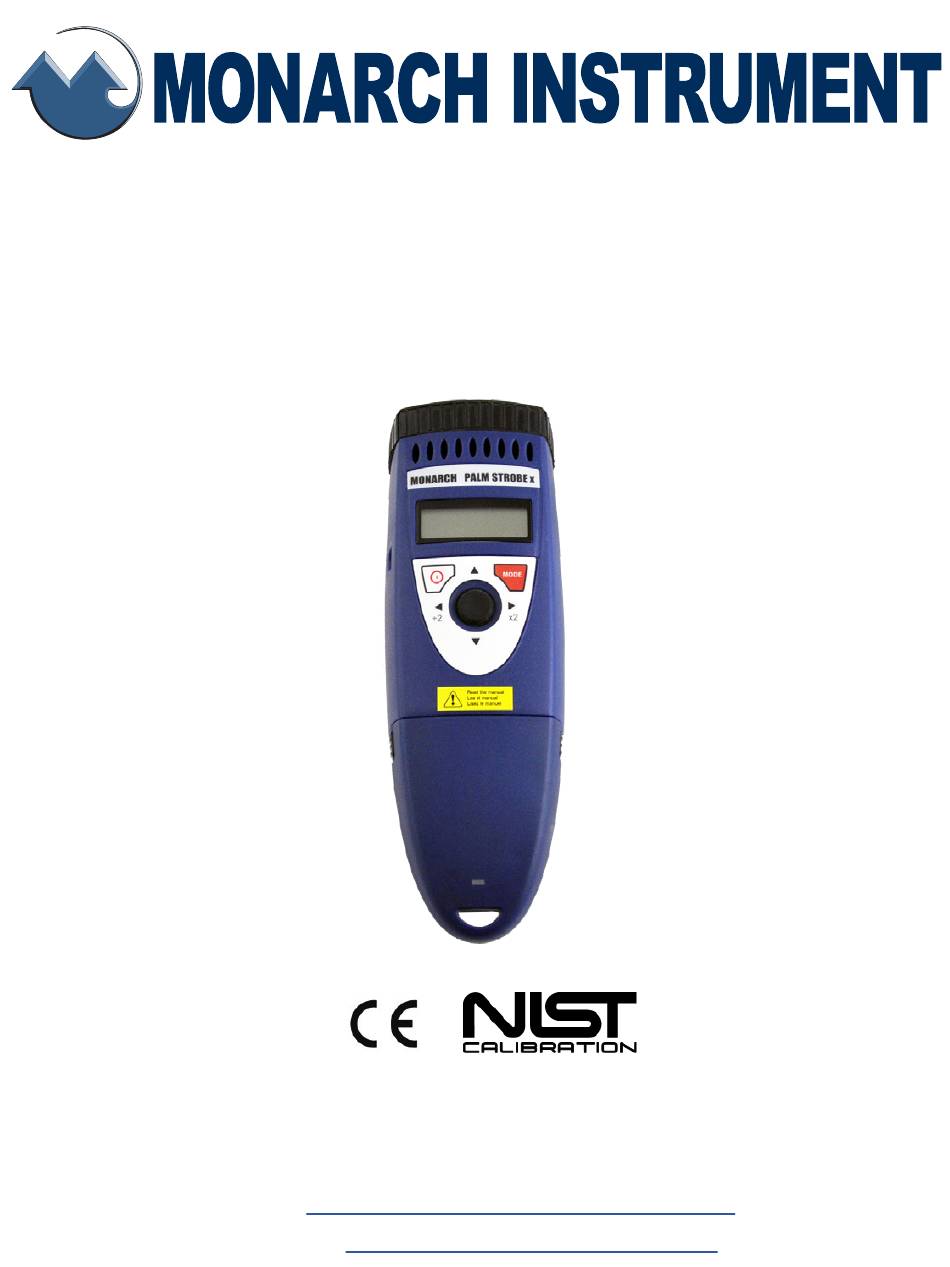

- Page 1 Instruction Manual PALM STROBE x Pocket-Sized Portable Stroboscope 15 Columbia Drive Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
- Page 2 SAFEGUARDS AND PRECAUTIONS 1. Read and follow all instructions in this manual carefully, and retain this manual for future reference. 2. Do not use this instrument in any manner inconsistent with these operating instructions or under any conditions that exceed the environmental specifications stated.
-
Page 3: Table Of Contents
RECYCLED in accordance with local regulations; contact your local authorities for more information. This product may be returnable to your distributor for recycling; contact the distributor for details. Monarch Instrument’s Limited Warranty applies. www.monarchinstrument.com for details. Warranty Registration and Extended Warranty Coverage information is available... -
Page 4: Description

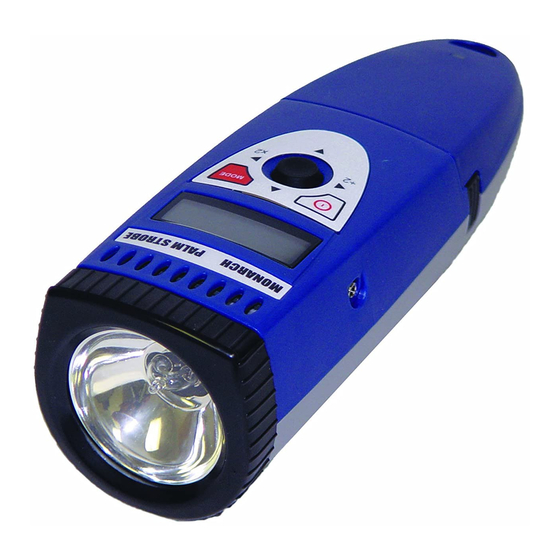

1.0 DESCRIPTION The PALM STROBE x is a sophisticated stroboscope with many features, yet remains simple to operate. It is a pocket-size, lightweight, industrial strength, single-handed operation instrument that fits in the palm of your hand. A four-quadrant Tuner Button adjusts the flash rate, and provides multiply/divide by 2 functions. -
Page 5: Display Panel
2.0 PREPARATION FOR USE PALM STROBE x may be hand held or mounted on a tripod or other user supplied bracket using the ¼-20 UNC bushing in the base of the unit. -
Page 6: Power
2.2 Input/Output Connections PALM STROBE x has a TTL Input/Output phone jack on the side of the stroboscope. This jack accepts a 1/8 inch [3.5 mm] stereo phone plug and can be used for external triggering or synchronization of the stroboscope or for providing a TTL pulse output, synchronous with the flash. -
Page 7: Operation
The flash rate is displayed on the LCD in flashes per minute, which typically is the same as RPM. The PALM STROBE x has three primary operating modes (Internal, External Input and Tach) and three functions (÷2 ×2, Recall and Store) that are adjusted by the MODE button. -
Page 8: Internal Mode - Standard Strobe Operation
3.1 Internal Mode - Standard Strobe Operation In the Internal Mode the stroboscope generates it’s own frequency variable speed signals and functions like a typical stroboscope. This is the default start up mode. The rubber tuning button functions as a joystick. - Page 9 To select a flash rate from a Preset (memory) location: 1. Press the MODE button once. The ÷2 ×2 icon will be displayed. 2. Press the MODE button again (without pressing the rubber tuning button in between). “RECALL” will be displayed. 3.
-
Page 10: External Input Mode
3.2 External Input Mode Press the MODE button (without pressing the tuning button in between) until the EXT icon is displayed. An external input is required (TTL compatible source from a self-powered sensor). In the External Input Mode there are no flash rate adjustments the user can make. - Page 11 If the speed of rotation is within the range of the stroboscope, start at the highest flash rate and adjust the flash rate down. At some point you will stop the motion with only a single reference point of the object in view.
-
Page 12: Lamp Replacement
In instances when you can shut down the device and install a piece of reflective tape, then an optical tachometer is easier to use for RPM measurement. You can use the PALM STROBE x with an external sensor as an optical tachometer. Stroboscopes need only be used as a tachometer when you can’t shut down the device. - Page 13 2. Hold the lamp with a cloth between your forefinger and thumb and rock it back and forth gently while pulling out. Do not attempt to rotate the lamp. The lamp is socketed and will come out easily when pulled straight out.
-
Page 14: Battery Pack
Never remove the batteries from the enclosure and attempt to charge externally. Always use the charger supplied (PSC-2U). The PALM STROBE x Battery Pack can be removed by pressing the two latches on either side of the unit while gently pulling the Battery Pack outwards (see Figure 7). -
Page 15: Low Battery Indication
Note: Match top and bottom case colors when sliding Battery Pack into the strobe. Top is blue Press both sides to release Bottom is gray Figure 7 Battery Pack Removal/Installation 6.1 Low Battery Indication When the batteries are low, the Low Battery icon ( ) is displayed. -
Page 16: Charging The Battery Pack
6.2 Charging the Battery Pack The Battery Pack may be recharged at any time. You do not need to wait until the low battery condition is indicated. The Battery Pack does not need to be in the strobe for charging. To charge the Battery Pack: 1. -
Page 17: Battery Disposal
6.3 Battery Disposal Prior to disposing of the Battery Pack, the user must remove the nickel- metal hydride batteries. To do this, remove the four screws on the under side of the Battery Pack and separate the case halves, exposing the battery. -
Page 18: Specifications
7.0 SPECIFICATIONS Specifications* PALM STROBE x Internal Mode: Flash Range 100 - 12,500 FPM (Flashes per Minute) Flash Rate Accuracy The greater of ±0.5 FPM or ±0.01% of reading Flash Rate Resolution 0.1 FPM (Setting) Display Update Rate Continuous External/Tachometer Mode: Flash Range and 5.0 to 12,500 FPM - External flash rates to 0 are... - Page 19 Specifications* PALM STROBE x Saves eight programmable flash rates and last flash Memory rate at power down Output Pulse 350 µsec positive pulse, 5 V dc typical Removable 6 V dc Rechargeable Battery Pack with Power Integral Electronics Charge Control for rechargers (PSC-2U Recharger: 9 V dc @ 500mA) 150 mJ/Flash up to 3000 FPM, 7.9 Watts...
-
Page 20: Compliance
Specifications* PALM STROBE x This product is designed to be safe for indoor use Safety under the following conditions (per IEC61010-1): Operating Temperature 32-104 °F (0-40 °C) Maximum relative humidity 80% for temperature Humidity up to 88 °F (31 °C) decreasing linearly to 50% relative humidity at 104 °F (40 °C) -
Page 21: Sensors/Accessories And Parts
T-5 Tape Reflective tape - 5 ft. [1.5 m] roll, 0.5 inch [12.7 mm] wide Compatible Remote Sensors: PALM STROBE x is compatible with all Monarch sensors with 1/8" phone plug termination (“-P” models). Visit https://monarchinstrument.com/collections/ remote-sensors for a full listing. - Page 22 SPSR Self-Power Sensor Pulse Input Cable PN: 6150-020 PN: 6280-032 Input/Output Cable PALM STROBE x Holster PN: 6280-037 PN: 6280-043 CC-9 Mini Tripod T-5 Reflective Tape PN: 6280-042 PN: 6280-040 PN: 6180-070...
- Page 23 Replacement Parts: Model Description 6280-026 Rechargeable Rechargeable NiMH battery pack; Battery Pack US Patent 6,945,666 6280-022 PSC-2U Universal recharger, 115/230 V ac with USA, UK, AUS, and Euro adapter plugs 6280-028 L-1905 Replacement xenon lamp (2-pack) Rechargeable Battery Pack PN: 6280-026 PSC-2U Universal Recharger PN: 6280-022 L-1905 Replacement Xenon Lamp...
- Page 24 The Professional’s Choice Monarch Instrument is committed to excellence and quality in manufacturing, sales, and service. ™ Track-It Data Loggers Panel Tachometers Portable Tachometers Frequency Portable Strobes Fixed Mounted Converters Strobes DataChart ™ Paperless Speed Sensors Recorders 15 Columbia Drive, Amherst NH 03031 USA Tel.: (603) 883-3390 // Fax: (603) 886-3390...
