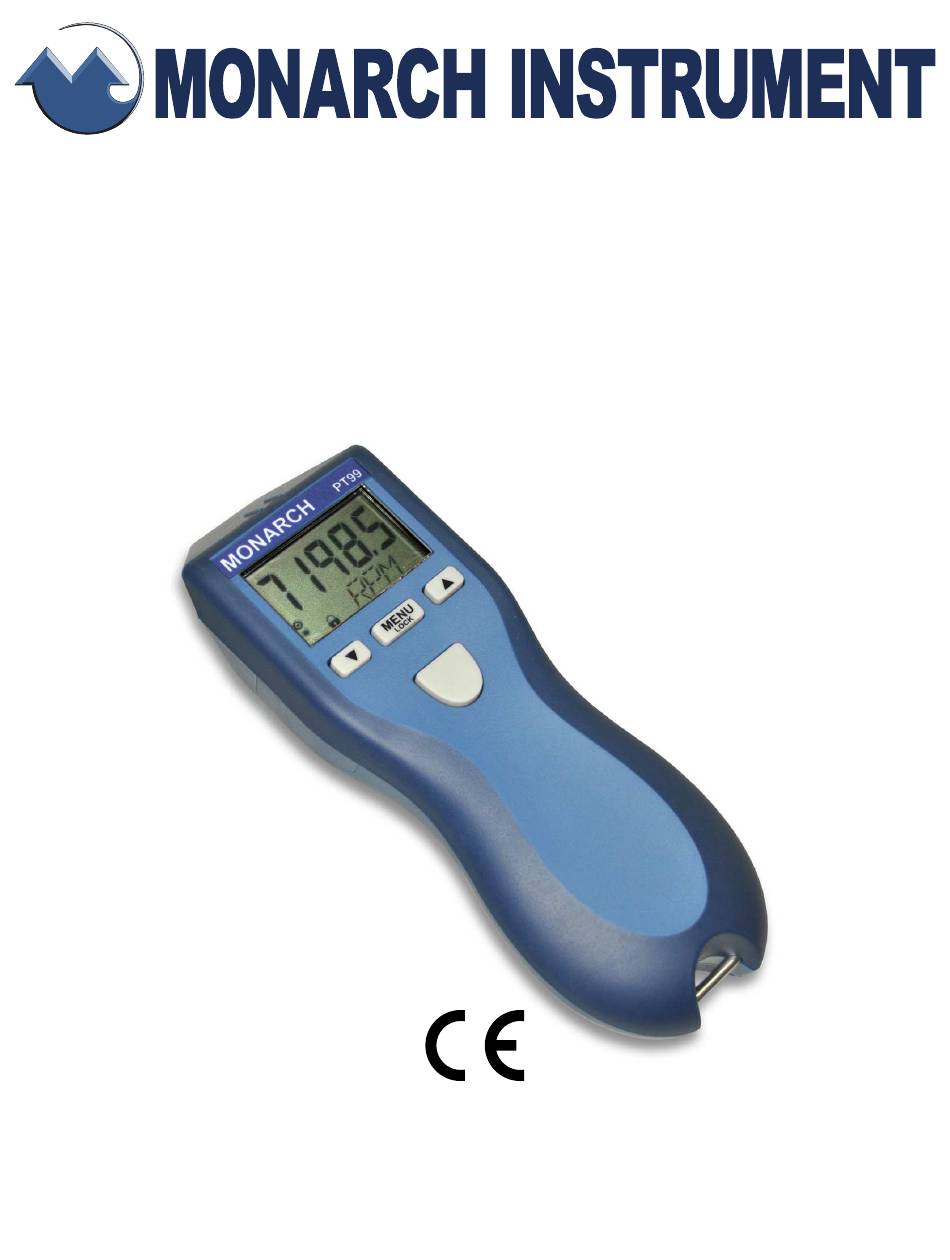

- Page 1 Instruction Manual Pocket Tach 99 (PT99) Non-Contact Tachometer 15 Columbia Drive • Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
- Page 2 This product may be returnable to your distributor for recycling - contact the distributor for details. Monarch Instrument’s Limited Warranty applies. www.monarchinstrument.com for details. Warranty Registration and Extended Warranty coverage available...
-
Page 3: Table Of Contents
4.2 Setup ................4 4.3 Operation ...............5 5.0 BATTERIES ................6 6.0 CLEANING ................6 7.0 PT99 SPECIFICATIONS ............7 8.0 OPTIONS / ACCESSORIES ............8 Monarch Instrument holds the following US trademarks and registrations, all rights reserved: illumiNova ® , Nova-Pro ® , Nova-Strobe™, DataChart™, Track-It™. -
Page 4: Overview

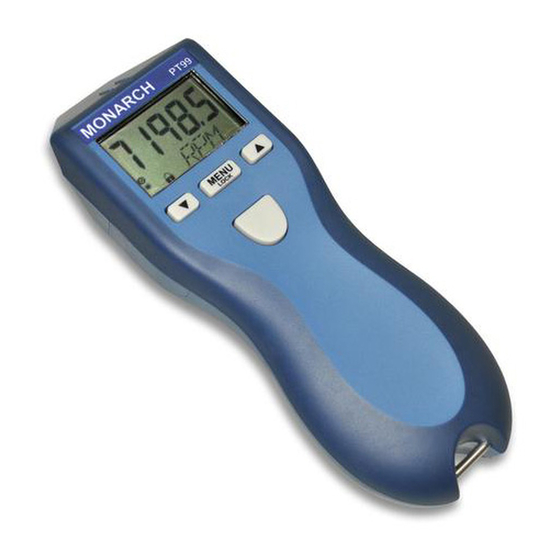

1.0 OVERVIEW The Pocket Tach 99 is a hand-held precision optical tachometer designed to make non-contact measurements of rotational speeds from 5 to 99,999 RPM at a distance of up to 36 inches (91.44 cm) from a refl ective target and at an angle of up to 30°... -
Page 5: Lcd Display Symbols
3.0 LCD DISPLAY SYMBOLS On Target indicator. Blinks on whenever there is an input signal. Will appear to be solid on at higher frequencies. Low Battery icon. Indicates that the batteries are low and need to be replaced. Times Ten icon. Indicates that the value shown is ten times that which is displayed. -
Page 6: Non-Contact Measurements
4.0 NON-CONTACT MEASUREMENTS 4.1 Preparation for Measurement 1. Clean 2. Apply 1/2 inch Shaft (12.7 mm) square T-5 Refl ective tape For Small Shafts: As small as 1/8 inch (3.2 mm) wide on side or radius edge... -
Page 7: Setup
4.2 Setup Turn Power 1a. To toggle Lock On/Off Press and Hold Locked On Enter Setup NONE, 1, 2 or 3 (decimal place selection) Select decimal Repeat until places desired decimal places displayed Save and exit – RPM displayed with Ready to selected number of measure... -
Page 8: Operation
4.3 Operation Measure Press and hold Lock on Recall Max Max Speed Recall Min Min Speed If unit Locked Resets Max/Min Power OFF Automatic after 90 seconds if unit not Locked on... -
Page 9: Batteries
5.0 BATTERIES When displayed, replace batteries. Remove battery cover Install two 1.5V “AA” alkaline batteries NOTE: Both batteries face the same direction. 6.0 CLEANING To clean the instrument, wipe with a damp cloth using mild soapy solution. -
Page 10: Pt99 Specifications
7.0 PT99 SPECIFICATIONS Speed Range: 5 to 99,999 RPM ±0.01% of reading or ±1 digit Accuracy: 0.001 RPM to 1 RPM Resolution: Operating Range: 36” (91.44 cm) up to 30 degrees off perpendicular 5 Digits, 5 Alpha-numeric LCD Display: Red LED Light Source: 2 “AA”... -
Page 11: Options / Accessories
8.0 OPTIONS / ACCESSORIES Refl ective Tape, 5 foot [1.5 m] roll, ½ inch [13 mm] 6180-070 wide. Additional lengths available CC-10 Padded Carrying Case for Pocket Tach with belt loop 6180-047 CC-11 Latching Carrying Case for Pocket Tach and accessories 6180-048 Mini Tripod Miniature tripod for use with Monarch tachometers... - Page 12 Check out some of our other product lines… Panel Frequency Portable Machine Vision Tachometers Converters Stroboscopes Stroboscopes Speed Sensors Temperature/ Vibration Meters Humidity Sensors Paperless Recorders Track-It™ Data Loggers Printed in the U.S.A. Copyright 2004-2020 Monarch Instrument, all rights reserved 1071-4837-116 -1020...
