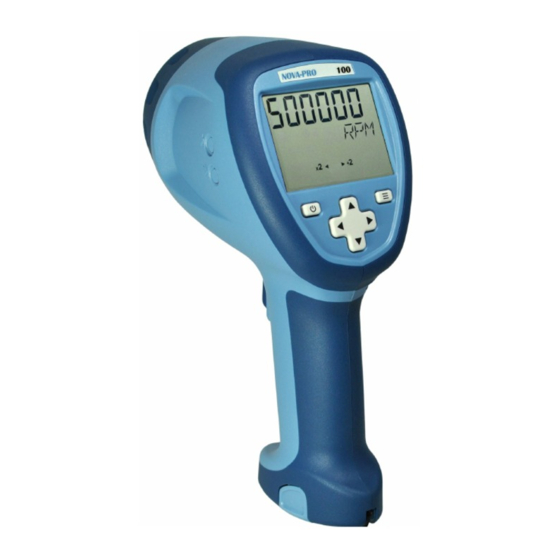

MONARCH INSTRUMENT Nova-Pro 100 Instruction Manual
Led stroboscopes / laser tachometers
Hide thumbs
Also See for Nova-Pro 100:
- Instruction manual (8 pages) ,
- User manual and installation manual (5 pages) ,
- Instruction manual (28 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MONARCH INSTRUMENT Nova-Pro 100
Summary of Contents for MONARCH INSTRUMENT Nova-Pro 100

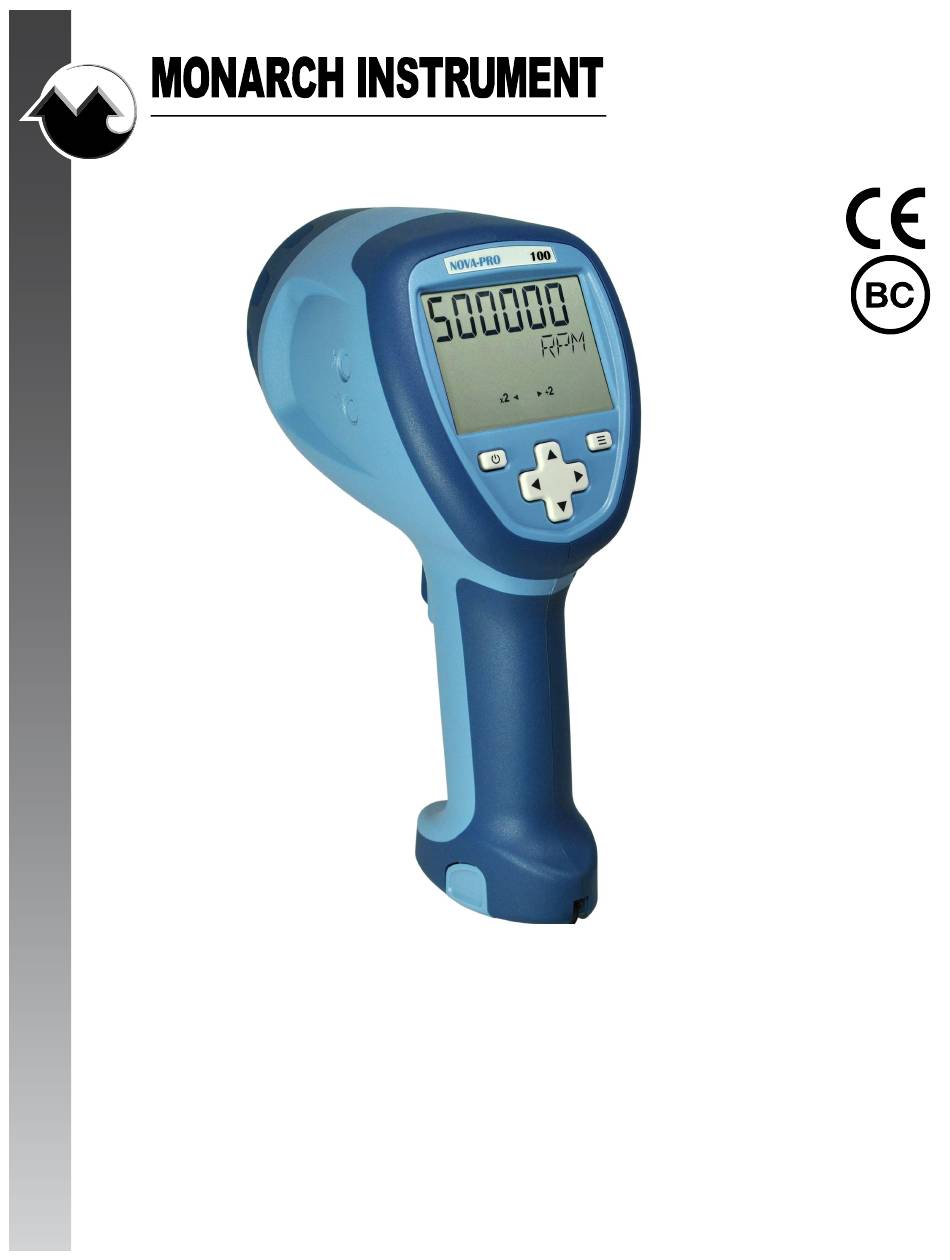

- Page 1 Instruction Manual ® Nova-Pro LED Stroboscopes / Laser Tachometers 15 Columbia Drive • Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
- Page 2 Safeguards and Precautions Read and follow all instruc ons in this manual carefully, and retain this manual for future reference. Do not use this instrument in any manner inconsistent with these opera ng instruc ons or under any condi ons that exceed the environmental specifica ons stated.
- Page 3 Do not aim at aircraft. Amherst, NH 03031 USA This is not a toy. Always supervise children. Country of Origin: USA Contact info: www.monarchinstrument.com Monarch Instrument’s Limited W arranty applies. See www.monarchinstrument.com for details. Warranty Registration and Extended Warranty coverage available online at www.monarchinstrument.com.
-
Page 4: Table Of Contents
TABLE OF CONTENTS: INTRODUCTION ............4 USER INTERFACE ............6 GETTING STARTED ............ 8 3.1 Power ................. 8 MODES OF OPERATION ..........9 4.1 STROBE Mode ............9 4.1.1 Joys ck ..............9 4.1.2 Doubling or Halving the Flash Rate ......10 4.2 LASER Mode ............. - Page 5 BATTERY PACK ............19 7.1 Low Ba ery Func onality ......... 19 4.2 Charging the Ba ery Pack ......... 20 AC POWER OPTION ..........20 WALL POWER SUPPLIES .......... 21 10. SPECIFICATIONS ............. 22 10.1 Opera ng Environment..........22 10.2 Compliance ............... 23 10.2.1 Ba ery Compliance ..........
-
Page 6: Introduction
1. INTRODUCTION The Nova-Pro 100 is a portable hand-held LED Stroboscope used for inspec on and to stop mo on of rota ng objects. The Nova-Pro 100 is available as ba ery powered or AC mains powered. An op onal Laser Module is available which can be used to synchronize the strobe flash to... - Page 7 Table 1 Nova-Pro 100 Features Bezel and Lens Bezel is removable to add or remove the op onal Laser Module Laser Module Internal laser used to synch the flash to (Op onal an external marker on the object under Accessory) inspec on.
-
Page 8: User Interface
2. USER INTERFACE The Nova-Pro 100 user interface consists of a large display, dedicated keys on the user interface panel and a trigger to ac vate the unit when the power is on. The user interface is described in Figure 2 and Table 2. - Page 9 Table 2 Nova-Pro 100 User Interface 6-digit display used to display flash rate and other numeric values Lock icon—Ac ve when the device is locked on. On Target indicator—Ac ve when the input/laser is locked on to a target. Also used to indicate current selec on in the menus.
-
Page 10: Getting Started
3. GETTING STARTED Power The ba ery powered Nova-Pro has a removable Ba ery Pack that should be charged before use (see sec on 7). The Ba ery Pack is keyed to ensure correct inser on into the Nova-Pro and Ba ery Charger. Make sure to remove the tape protec ng the ba ery terminals and charge the ba ery before use. -
Page 11: Modes Of Operation
4. MODES OF OPERATION The Nova-Pro 100 has a single mode of opera on: STROBE, UNLESS the op onal Laser Module is installed in the unit. This adds two addi onal modes: LASER—uses the laser beam to trigger the stroboscope so that the flashes may be synchronized to an external target such as a keyway in a... -
Page 12: Doubling Or Halving The Flash Rate
Press Press increase or decrease change the digit that the value of the blinks blinking digit. Hold for auto increment or decrement 4.1.2 Doubling or Halving the Flash Rate Press the MENU bu on and the display will show the x2 and ÷2 icons. -
Page 13: Laser Mode
Figure 3 Object rota ng at 3000 RPM ( 2) (X2) (X2) (X2) One target One target Two targets Four targets @ 1,500 FMP @ 3,000 FMP @ 6,000 FMP @ 12,000 FMP EVERY OTHER ROTATION ONCE EVERY ROTATION TWICE PER ROTATION FOUR TIMES PER ROTATION NOTE: If doubling or halving the flash rate causes the strobe to exceed its range, the display flash rate will remain at the... -
Page 14: Tach (Tachometer) Mode
Figure 4 Using the Laser Module 3600 3600 TACH CAUTION: • AVOID EXPOSURE—LASER RADIATION IS EMITTED FROM THIS APERTURE • NEVER VIEW THROUGH OPTICAL INSTRUMENTS • DO NOT AIM AT AIRCRAFT TACH (Tachometer) Mode The TACH (Tachometer) Mode is only available if the op onal Laser Module is installed. -
Page 15: Menus
5. MENUS Menu Overview The menu that shows is dependent on the current opera ng mode of the unit and whether the Laser Module is installed. SEtUP MODE STROBE LASER TACHometer MODE MODE MODE X2 / ≑2 SEtUP MODE SEtUP MODE SEtUP MODE DECPT BRITE... -
Page 16: Mode Menu
Press the MENU bu on to enter menu op ons and make selec ons. Press the POWER bu on to escape or back out of the menus. On-Target icon will show which menu op on is selected. The following sec ons describe the individual menu op ons. MODE Menu Only available if op onal Laser Module is installed. -
Page 17: Degrees
rate. If the adjustment was in me, the strobe will have a fixed dura on irrespec ve of the flash rate. This is a live adjustment—if the trigger is depressed, the effect of changing the brightness can be seen immediately. 5.3.1 Degrees Press the MENU bu on to enter the BRITE menu. -
Page 18: Units Menu
A value of 600 will be displayed as 600, 600.0, 600.00, 600.000 depending on the setting. Press the MENU button to enter the DECPT menu. The current value is shown on the top line with DECPT on the lower line. The On-Target indicator will be on for the currently selected value. -
Page 19: Calcula Ng Blur
wider the pulse, the brighter the flash from the LEDs appears to be. There is however, a downside to the wider pulses. All strobes work by giving short bursts of light (the pulse width) at a rapid repetition rate (the flash rate). Strobes rely on the persistence of the human eye (the ability to remember and image) and its response to bright light to give an apparent stop motion image. -
Page 20: Brightness In Degrees Of Rota On
When setting the pulse duration in degrees, what you set is what you get. Refer to the image on the right for the difference between a 1° and 5° (of rotation) flash duration. There are two methods of adjus ng the flash pulse width and hence the brightness and consequently the blur. -
Page 21: Battery Pack
7. BATTERY PACK When ordered as such, the Nova-Pro 100 comes with one rechargeable Lithium Ion ba ery pack, external charger and power supply. The Ba ery Pack is shipped in a mostly discharged state and has tape over the terminals. -
Page 22: Charging The Ba Ery Pack
LED turns green. 8. AC POWER OPTION The Nova-Pro 100 can be ordered specifically with the AC Power Op on for con nuous opera on from AC power. -
Page 23: Wall Power Supplies
(115Vac to 230Vac) using the appropriate interchangeable plug. 9. WALL POWER SUPPLIES The wall power supplies provided with the Nova-Pro 100 have interchangeable plugs allowing them to be used with AC outlets in different countries. -
Page 24: Specifications
10. SPECIFICATIONS Product specifica ons are subject to change without no ce. 10.1 Opera ng Environment This equipment is NOT intended for permanent installa on. This equipment is for use in a controlled environment - Environmental situa on A, Pollu on Degree 2. Al tude: up to 2000 m Temperature: 5 °C to 40 °C... -
Page 25: Compliance
Humidity: Maximum rela ve humidity 80% for temperatures up to 31 °C decreasing linearly to 50% rela ve humidity at 40 °C. Ra ng: Splash proof—IP 54 Category: 10.2 Compliance 10.2.1 Ba ery Compliance The Lithium-Ion ba ery packs used in this product meet the requirements of UN DOT 38.3. -
Page 26: Options And Accessories
11. OPTIONS and ACCESSORIES Laser Module Op onal Laser Module enables the Nova-Pro 100 to be used as a laser tachometer or to synchronize the strobe flash to a remote target. Laser Module Optional docking station for Laser Module which can... - Page 27 Laser Module Dock Laser Module Part number 6281-021 Part number 6281-020 AC Power Adapter 115/230 Ba ery Charging Sta on Part number 6281-015 Part number 6281-012 Standard Li-ion Ba ery Pack Hi-Capacity Li-ion Ba ery Pack Part number 6281-010 Part number 6281-011...
- Page 28 Check out our other product lines… Handheld Panel Portable Machine Vision Tachometers Tachometers Stroboscopes Stroboscopes Speed Sensors Temperature/ Vibra on Meters Humidity Sensors Paperless Recorders Track-It® Data Loggers Printed in the U.S.A. © Copyright 2016-2019 Monarch Instrument, all rights reserved 1071-4241-113 -0819...
