Summary of Contents for SureCall EZ Call
- Page 1 EZ Call ™ Home Signal Booster Kit User Guide...
- Page 2 Thank you for your purchase of the EZ Call. With this easy set-up guide, this booster can be installed in as little as 10 minutes, so you can enjoy a reliable consistent cellular connection. SureCall’s EZ Call was specifically designed to eliminate frustrations over dropped calls and limited range by amplifying incoming and outgoing cellular signals in homes and offices.
-
Page 3: Table Of Contents
FCC, IC and Safety Information ....................11 EZ Call Specifications ....................... 12 Kitting Information ........................13 Warranty ............................. 14 Three-Year Product Warranty ....................14 Limitations of Warranty, Damages and Liability ..............15 SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 4: How It Works

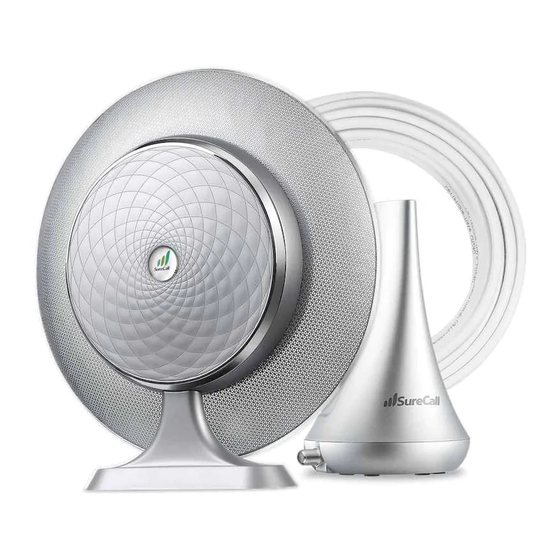

How It Works SureCall’s EZ Call is a high-quality bidirectional signal booster that enhances cellular signals to areas that are prone to weak cellular coverage. How it works An antenna built into the back of the booster communicates with the cell tower while it sits in your window. -
Page 5: Package Contents
Turn over the signal booster and record the model and serial number for reference: Serial #: ________________________________________________________________ Purchase Date: __________________________________________________________ Keep the carton and packing material to store the product in case you need to return. Your EZ Call signal booster package includes the following items: •... -
Page 6: Before Installation
50 ft. Installation Overview Step 1. Find the window that has the strongest signal. Note that the EZ Call and the tabletop antenna should have a separating wall. a) If installing in a two story home or office place the EZ Call upstairs and install the inside tabletop antenna downstairs. -
Page 7: Step 2. Install The Signal Booster
(either the supplied window sill stand or mounting tape if no window sill is present) and connect one end of the provided cable to cable connector on the booster. Note that the EZ Call booster performs best when Option 1: Apply the booster directly placed at a window corner. - Page 8 Install Illustration Ensure adequate separation between the planned locations of the booster and inside tabletop antenna (at least 30 ft.). A separating wall or separating floor is preferable. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
-
Page 9: Step 4: Connect Power
EZ Call. IF YOU WANT TO IMPROVE COVERAGE • Test different booster locations to identify which receives the strongest signal and place the EZ Call booster in that location. • Try relocating one component (booster or antenna) to a separate floor (upstairs or downstairs). -
Page 10: Led Indicators
Flashing The booster is receiving too strong of a signal which could cause the booster to automatically turn off. When this happens: Relocate the EZ Call to a window location where the signal is weaker. Right Flashing Self-oscillation has been prevented. -
Page 11: Troubleshooting
Be sure the power source is not controlled by a switch that can remove power from the outlet. Check the green POWER LED on the signal booster. If it is OFF, return the power supply to SureCall. Contact tech support at to receive an RMA at: 1-888-365-6283 or support@surecall.com, or go to www.surecall.com 7:00 am –... -
Page 12: Ez Call Specifications
Donor port: Integral, Server port: F Female Power Consumption: <10W Weight: 3 lb. 2 oz. Dimensions: 13 in. Diameter FCC ID / IC: RSNEZCALL 7784A-EZCALL Coverage: 1–2 Rooms, up to 2,000 sq. ft. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 13: Kitting Information
50 Feet or longer SC-249W 7 dBi 10 dBi Inside Antenna* SC312W 3 dBi 5 dBi * All equivalent antennas and cables are suitable for use with the EZ Call booster SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 14: Warranty
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workmanship, and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s option, to repair or replace any product or part thereof which was purchased up to THREE YEARS after May 1, 2014 or TWO YEARS for products purchased before May 1, 2014, as determined by examination by SureCall, prove defective in material and/or workmanship. -
Page 15: Limitations Of Warranty, Damages And Liability
SureCall shall not be held liable to anyone for any indirect, special or consequential damages due to omissions or errors. The information and specifications in this document are subject to change without notice. - Page 16 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
