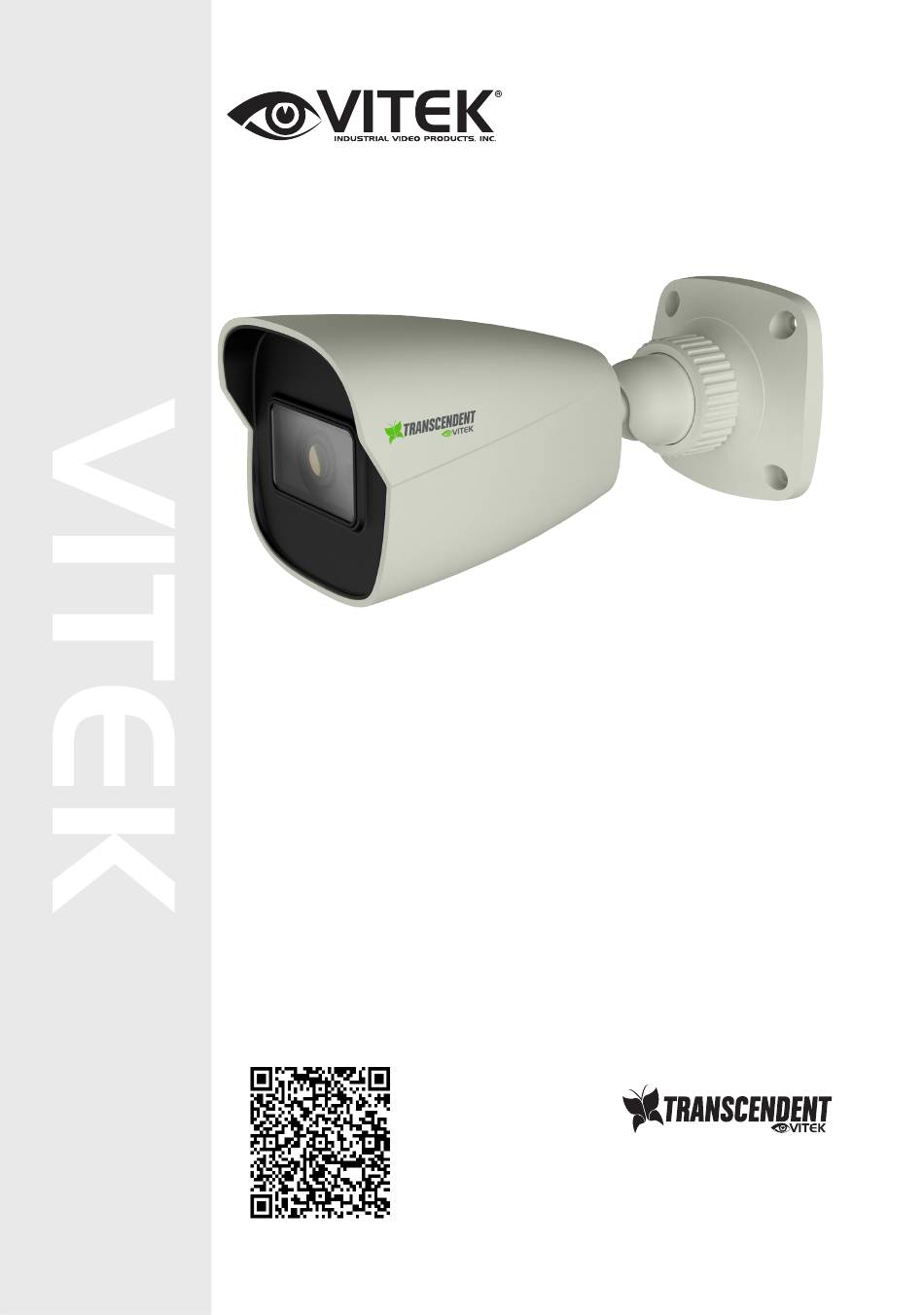

QUICK START GUIDE
FEATURES
• 1/2.7" 5.0 MegaPixel CMOS Image Sensor
• Up to 20fps live view @ 5 MegaPixel (2592x1944)
• 2.8mm Fixed Iris Lens
• 1 Matrix IR with up to 100' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D-DN & 2D-DNR) Noise Reduction
• Features: On Board Motion Detection, Privacy Masking, Region of
Interest, Exception, Line Crossing, Intrusion, Object Detection /
Removal (Museum Search)
• H.265, H.264 Compression
• MicroSD Card Slot for Local Recording (Up to 128GB)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Junction Box Mounts Available (VT-TJB07, VT-TJB08)
• 12VDC & PoE (Power over Ethernet) Operation

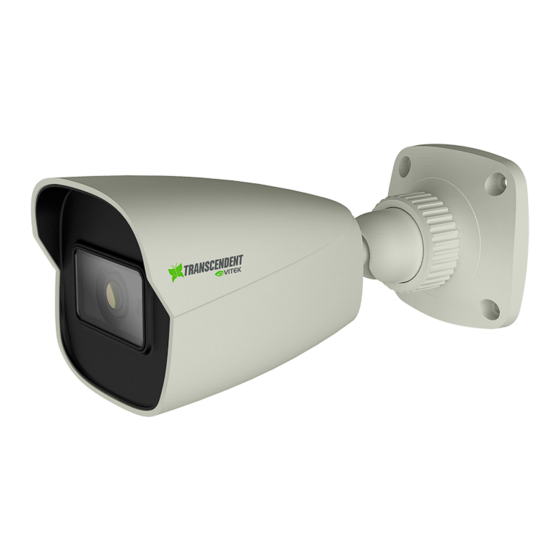

VTC-TNB5RFE-2
Transcendent Series 5MP
Indoor/Outdoor WDR IP
Camera w/ Matrix IR Illumination
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
