FEATURES
• 1/2.8" 2.0 Megapixel Progressive Scan CMOS
Sensor
• Advanced Starlight Technology Offers Dramatically
Higher Sensitivity to Light Producing Color Images in
Very Dark & Night Scenes
• 2.0 MegaPixel High Definition Analog (HDA):
HD-TVI , AHD, CVI / 960H: CVBS: Output
• 3.6 or 2.8mm Fixed Lens Options
• Matrix IR w/ up to 165' IR Range (VTC-THBRFS)
Matrix IR w/ up to 100' IR Range (VTC-THT2RFS)
• True Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• IP67

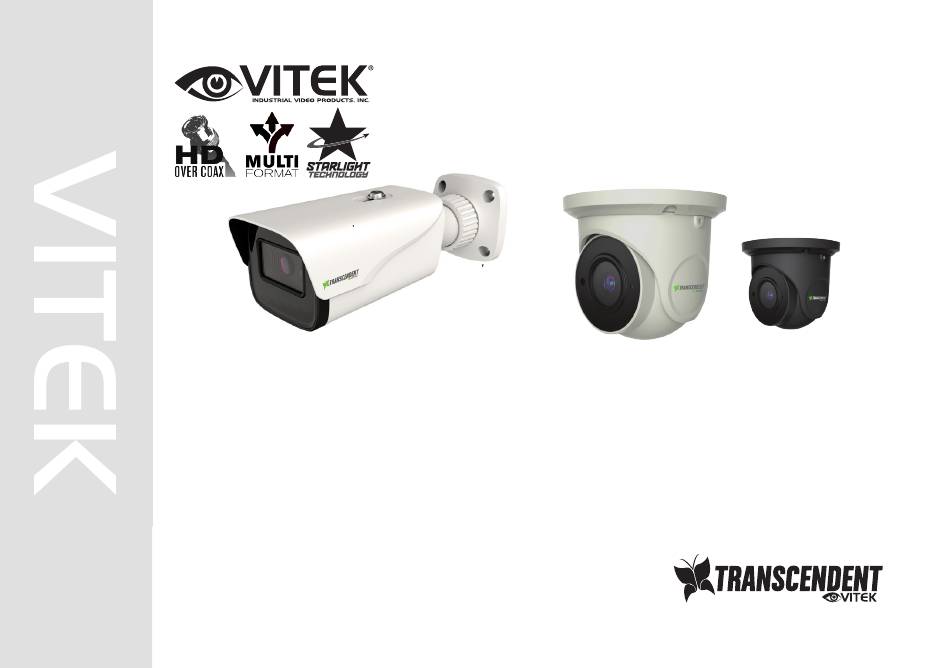

Transcendent Series 2.0 Megapixel Indoor/Outdoor
4-in-1 Starlight Fixed Lens Bullet and Turret Cameras
• VTC-THT2RFS available in Ivory or Charcoal
(VTC-THT2RFSB / VTC-THT2RFSB-2)
• Supports Up The COAX Control
• Over 1500' HD Video Transmission (Depending on
cable characteristics and integrity)
• VTC-THB2RFS: Optional J Box VT-TJB08,
• VTC-THT2RFS: Optional J Boxes VT-TJB01, VT-TJB08,
Wall Mounts VT-TWMT-3, VT-TWMT-A1
(reqs. VT-TJB08), Pendant Mounts VT-TPDMT-A1
(reqs. VT-TJB08), VT-TPDM-2 (with VT-TJB01)
* Both models work with VT-TPLMT (Pole Adapter, reqs.
VT-TJB08), VT-TCNMT (Corner Adapter, reqs. VT-TJB08)
• 12VDC Operation
• 3 Year Warranty
VTC-THB2RFS
VTC-THT2RFS
Advertisement
Table of Contents
Related Manuals for Vitek Transcendent VTC-THB2RFS
Summary of Contents for Vitek Transcendent VTC-THB2RFS
- Page 1 VTC-THB2RFS VTC-THT2RFS Transcendent Series 2.0 Megapixel Indoor/Outdoor 4-in-1 Starlight Fixed Lens Bullet and Turret Cameras FEATURES • 1/2.8” 2.0 Megapixel Progressive Scan CMOS • VTC-THT2RFS available in Ivory or Charcoal Sensor (VTC-THT2RFSB / VTC-THT2RFSB-2) • Advanced Starlight Technology Offers Dramatically •...
-
Page 2: Safety Precautions
Safety Precautions To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Video Connection
Video Connection VTC-THB2RFS - Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Allen Key Drill Template Video Video Output Mode Switch: Overview Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output. Before switching video outputs, please remove the cover of the video switch cable. -
Page 4: Installation
2. Route the cables and connect the power & video cables, use the Installation rubber plug to fill the gap of the mounting base, then secure the Before beginning installation, make mounting base to the ceiling or wall with screws. sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 5 VTC-THT2RFS Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Allen Key Manual Mounting Plate Screws Rubber Plug Overview Video Video Output Mode Switch: Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output. Before switching video outputs, please remove the cover of the video switch cable.
- Page 6 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Tighten the lock screws to secure the viewing angle adjustments. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
-
Page 7: Camera Osd Menu
Camera OSD Menu The Transcendent 4-in1 camera series must be connected to a DVR which supports HD-TVI/AHD video signal input and COC protocol to access the OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The Following image will pop-up when you left click once on the image when using Transcendent HDA DVR's. - Page 8 Transcendent 2.1 VTC-THB2RFS, VTC-THB2RFS-2 Detailed Specifications Image Sensor 1/2.8” 2.0 Megapixel Progressive Scan CMOS Sensor with Advanced Starlight Technology Signal System PAL / NTSC Effective Pixels 1920 x 1080 Resolution 2.0 MegaPixel Video Output HD-TVI / AHD / CVI / CVBS (Selectable) Frame Rate 30fps Lens...
- Page 9 VTC-THT24R2F Transcendent 2.1 Megapixel Indoor/Outdoor 4-IN-1 gapixel Indoor/Outdoor 4-IN-1 HDA Turret Camera w/24 IR LED Illumination VTC-THT2RFS, VTC-THT2RFS-2, VTC-THT2RFSB, VTC-THT2RFSB-2 Detailed Specifications Image Sensor 1/2.8” 2.0 Megapixel Progressive Scan CMOS Sensor with Advanced Starlight Technology Signal System PAL / NTSC Effective Pixels 1920 x 1080 Resolution...
- Page 10 Transcendent 2.1 Megapixel Indoor/Outdoor 4-IN-1 OPTIONAL MOUNTS FOR FIXED TRANSCENDENT CAMERAS, VTC-THB2RFS, VTC-THT2RFS VT-TJB08/B VT-TWMT-A1 VT-TWMT3/B VT-TJB01/B Optional Junction Box Optional Wall Optional Wall Mount for Optional Junction Box for Use with Select Mount for use for Use with Select use with select Transcendent Bullet with Transcendent...
- Page 11 165’ IR Range), 100’ IR Range), Available in Ivory Available in Ivory / Charcoal / Charcoal Pair with VITEK Transcendent Series 5-in-1 Digital Video Recorders Transcendent 2.1 Megapixel Indoor/Outdoor 4-IN-1 Supporting HD-TVI / AHD / CVI / IP / 960H Cameras!
-
Page 12: Limited Product Warranty
Preliminary Specifications: Preliminary Specifications: VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended,...
