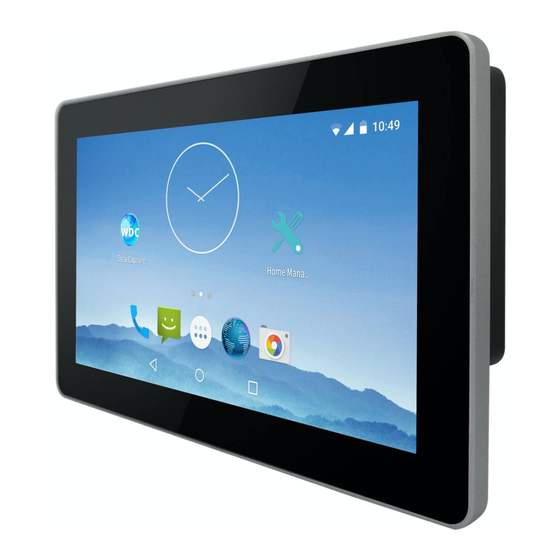

G-WIN Slim IP65
Panel PC
Freescale® Cortex® A9 i.MX6 Dual Core 1 GHz (Optional Quad Core)
P-CAP Touch
W07FA3S-GSO1
W10FA3S-GSH2
W10FA3S-GSH1
R12FA3S-GSM2(HB)
R15FA3S-GSC3(HB)
User Manual
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W07FA3S-GSO1 and is the answer not in the manual?

Questions and answers

Related Manuals for Winmate W07FA3S-GSO1

Summary of Contents for Winmate W07FA3S-GSO1

  • Page 1 G-WIN Slim IP65 Panel PC Freescale® Cortex® A9 i.MX6 Dual Core 1 GHz (Optional Quad Core) P-CAP Touch W07FA3S-GSO1 W10FA3S-GSH2 W10FA3S-GSH1 R12FA3S-GSM2(HB) R15FA3S-GSC3(HB) User Manual Version 1.1...

  • Page 2: Table Of Contents

    3.4 Ethernet ......................- 37 - 3.4.1 Configuring Ethernet Settings ..............- 38 - 3.4.2 Checking Ethernet Settings ..............- 39 - 3.5 Winmate® Home Manager (WHM) ..............- 40 - 3.5.1 How to Lock Applications ................- 40 - 3.5.2 How to Unlock Applications ..............- 44 - 3.5.3 How to Change Password ................- 45 -...
  • Page 3 USER MANUAL CONTENTS 4.3 OTA Update Guide .....................- 58 - 4.4 OS Image Update Guide ..................- 62 - CHAPTER 5: MOUNTING ..................... - 64 - 5.1 Cable Mounting Considerations ................- 64 - 5.2 Safety Precautions .....................- 65 - 5.3 Mounting Guide ....................- 65 - 5.3.1 VESA Mounting ..................- 66 - 5.3.2 Panel Mounting ..................- 67 - CHAPTER 6: TECHNICAL SUPPORT ................

  • Page 4: Preface

    USER MANUAL PREFACE PREFACE Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners.
  • Page 5 USER MANUAL PREFACE Customer Service We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
  • Page 6 USER MANUAL PREFACE Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. NOTE: A note is used to emphasize helpful information IMPORTANT:...

  • Page 7: Safety Information

    USER MANUAL PREFACE Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
  • Page 8 USER MANUAL PREFACE  Before connecting the equipment to the power outlet make sure the voltage of the power source is correct.  Position the power cord so that people cannot step on it. Do not place anything over the power cord. ...
  • Page 9 USER MANUAL PREFACE  Cover workstations with approved anti-static material. Use a wrist strap connected to a work surface and properly grounded tools and equipment.  Use anti-static mats, heel straps, or air ionizer for added protection.  Handle electrostatic-sensitive components, PCB’s and assemblies by the case or the edge of the board.

  • Page 10: Important Information

    USER MANUAL PREFACE Important Information Countries/ Area Symbol This equipment complies with essential requirements Electromagnetic Compatibility Directive(2014/30/EU) Low Voltage Directive (2014/35/EU) Restrictions of the use of certain hazardous substances (RoHS) Directive (2011/65/EU) European Union FCC Part 15 Subpart B Regulations Class B Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules.
  • Page 11 USER MANUAL PREFACE European Union This equipment is in conformity with the requirement of the following EU legislations and harmonized standards. Product also complies with the Council directions. Electromagnetic Compatibility Directive (2014/30/EU)  EN55024: 2010/ A1: 2015 o IEC61000-4-2: 2009 o IEC61000-4-3: 2006+A1: 2007+A2: 2010 o IEC61000-4-4: 2012 o IEC61000-4-5: 2014...

  • Page 12: About This User Manual

    This User Manual provides information about using the Winmate® G-WIN Slim IP65 Panel PC (P-CAP) with Freescale® Cortex® A9 i.MX6 Dual Core 1 GHz (Optional Quad Core) processor. This User Manual applies to the G-WIN Slim IP65 Panel PC (P-CAP) – W07FA3S-GSO1, W10FA3S-GSH2, W10FA3S-GSH1, R12FA3S-GSM2(HB), R15FA3S-GSC3(HB).

  • Page 13: Chapter 1: Introduction

    USER MANUAL CHAPTER 1 INTRODUCTION INTRODUCTION This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the HMI device in the packing list. Mechanical dimensions and drawings included in this chapter. - 13 -...

  • Page 14: Product Features

    CHAPTER 1 INTRODUCTION CHAPTER 1: INTRODUCTION Congratulations on purchasing Winmate® G-WIN Slim IP65 with P-CAP Panel PC. The elegantly designed, yet rugged, industrial grade G-WIN S65 series is designed for usability with brilliant true-flat screens, which offer superior readability and Projected Capacitive Multi-Touch (P-CAP) technology, available in 7”, 10.1”, 12.1”...

  • Page 15: Package Contents

    USER MANUAL CHAPTER 1 INTRODUCTION 1.2 Package Contents Carefully remove the box and unpack your HMI device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately.

  • Page 16: Schematics And Dimensions

    USER MANUAL CHAPTER 1 INTRODUCTION 1.3 Schematics and Dimensions W07FA3S-GSO1 Unit: mm Dimensions: 189.4 x 145.4 x 39.8 № Description № Description ① 12V DC (M12 Type) ④ USB OTG, Console Port, MicroSD ② LAN, USB (M12 Type) ⑤ 1 Watt Speaker ③...
  • Page 17 USER MANUAL CHAPTER 1 INTRODUCTION W10FA3S-GSH1 Unit: mm Dimensions: 263.28 x 173.6 x 40.2 № Description № Description ① 12V DC (M12 Type) ④ USB OTG, Console Port, MicroSD ② LAN, USB (M12 Type) ⑤ 1 Watt Speaker ③ RS232 (M12 Type) - 17 -...
  • Page 18 USER MANUAL CHAPTER 1 INTRODUCTION W10FA3S-GSH1(HB) Unit: mm Dimensions: 263.28 x 173.6 x 40.2 № Description № Description ① 12V DC (M12 Type) ④ USB OTG, Console Port, MicroSD ② RS232 (M12 Type) ⑤ 1 Watt Speaker ③ LAN, USB (M12 Type) - 18 -...
  • Page 19 USER MANUAL CHAPTER 1 INTRODUCTION R12FA3S-GSM2(HB) Unit: mm Dimensions: 296.2 x 226.7 x 45.5 № Description № Description ① 12V DC (M12 Type) ④ USB OTG, Console Port, MicroSD ② LAN, USB (M12 Type) ⑤ 1 Watt Speaker ③ RS232 (M12 Type) - 19 -...
  • Page 20 USER MANUAL CHAPTER 1 INTRODUCTION R15FA3S-GSC3(HB) Unit: mm Dimensions: 363.4 x 277.86 x 45.2 № Description № Description ① 12V DC (M12 Type) ④ USB OTG, Console Port, MicroSD ② LAN, USB (M12 Type) ⑤ 1 Watt Speaker ③ RS232 (M12 Type) - 20 -...

  • Page 21: Chapter 2: Getting Started

    USER MANUAL CHAPTER 2 GETTING STARTED GETTING STARTED This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. - 21 -...

  • Page 22: Turning On And Off Your Device

    USER MANUAL CHAPTER 2 GETTING STARTED CHAPTER 2: GETTING STARTED This chapter provides information on how to connect the HMI device to the source of power, connector pinouts and the guideline to turn on/off the HMI device. 2.1 Turning on and off Your Device To turn on the device: 1.

  • Page 23: Connecting To Other Devices

    USER MANUAL CHAPTER 2 GETTING STARTED 2.2 Connecting to Other Devices 2.2.1 Diagram The Panel PC features M12 type connectors with protective cap and has full IP65 rating. This Panel PC comes with various interfaces located on the bottom panel. All of these connectors have been shipped with protective caps.

  • Page 24: Connector Description

    USER MANUAL CHAPTER 2 GETTING STARTED 2.2.2 Connector Description 2.2.2.1 Power Input Connector Panel PC has M12 type 4 pin male power input connector which accepts 12V DC power input. Use IP65 power cable to connect the Panel PC to the source of power. IMPORTANT: If ignition pin (IGN_IN) is not connected, the device will NOT power on.
  • Page 25 USER MANUAL CHAPTER 2 GETTING STARTED 2.2.2.2 Serial Interface Connector Panel PC has M12 type 10 pin male RS-232 connector. Use IP65 serial cable to connect the Panel PC to external devices. - 25 -...
  • Page 26 USER MANUAL CHAPTER 2 GETTING STARTED 2.2.2.3 Giga LAN + USB 2.0 Connector Panel PC has M12 type 12 pin male Giga LAN and USB connector that supports two LAN and one USB 2.0. - 26 -...
  • Page 27 USER MANUAL CHAPTER 2 GETTING STARTED 2.2.2.4 USB OTG Connector Panel PC has USB OTG connector located either on the rear side or on the bottom. Use USB OTG connector to connect the HMI device to other USB On-The-Go compliant devices such as flash drives, digital cameras, mice or keyboards.

  • Page 28: Configuring Serial Com Port Settings

    USER MANUAL CHAPTER 2 GETTING STARTED 2.3 Configuring Serial COM Port Settings port settings application for Android OS. To configure serial port settings: 1. Settings > Accessibility. 2. Accessibility > System: Comport-Setting. - 28 -...
  • Page 29 USER MANUAL CHAPTER 2 GETTING STARTED 3. Comport-Setting > Comport 1/ Comport 2/ Comport 3 * Select Comport 1/ Comport 2/ Comport 3 that you want to configure. 4. Comport 1 > RS232/RS422/RS485 * Configure Comport 1 settings - 29 -...

  • Page 30: Chapter 3: Operating The Device

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE OPERATING THE DEVICE This chapter provides detailed information on how to operate the device. If you have been using Android touch-screen Panel PCs before, the interface may look familiar. Sections include system settings parameters. - 30 -...

  • Page 31: Operating System

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE CHAPTER 3: OPERATING THE DEVICE In this chapter you will find an instruction on how to operate the HMI device. 3.1 Operating System G-WIN Slim IP65 Panel PC (P-CAP) supports:  Android 6.0 (Default) ...

  • Page 32: Multi-Touch

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE 3.2 Multi-Touch The touchpad supports the core gestures for Android. Gesture Action Description Touch To select or activate something Touch & Hold Touch and hold an item on the screen by touching it and not lifting your finger until it respond Touch, Hold &...

  • Page 33: Setting Up The Device

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE 3.3.1 Setting up the Device When you first turn on your HMI device, you’ll see a Welcome screen. Choose the language you want and touch Start or the Start icon. When prompted, you can sign in with your Google Account or create one at that time.
  • Page 34 USER MANUAL CHAPTER 3 OPERATING THE DEVICE Back Opens the previous screen you were working in, even if it was in a different app. Once you back up to the Home screen, you can’t go back any further. Home Returns to the Home screen. To get suggestions based on the screen you’re currently viewing, touch &...

  • Page 35: Quick Settings

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE 3.3.3 Quick Settings You can open your device’s Settings app from the All Apps screen or from Quick Settings. For example, to change notification sounds, and volume go to Settings > Device > Sound to change the volume.
  • Page 36 USER MANUAL CHAPTER 3 OPERATING THE DEVICE Open the main Settings menu by touching Settings at the top right. - 36 -...

  • Page 37: Ethernet

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE 3.4 Ethernet 1. Connect Ethernet Cable to the HMI. 2. Touch All APPS icon, and the open Ethernet application. 3. Ethernet APP main menu appears - 37 -...

  • Page 38: Configuring Ethernet Settings

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE 3.4.1 Configuring Ethernet Settings Go to All Apps > Ethernet > Configure Ethernet *Ethernet OFF is set by default. Swipe Ethernet ON to activate Ethernet connection. Connection Type Setting Description DHCP The device automatically capture IP-address from the router Static IP Allows to manually set up IP-address, DNS, Network and Gateway - 38 -...

  • Page 39: Checking Ethernet Settings

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE 3.4.2 Checking Ethernet Settings To check Ethernet settings: Go to All Apps > Ethernet > Check Ethernet Ethernet settings menu appears on the top right side of the desktop. - 39 -...

  • Page 40: Winmate® Home Manager (Whm)

    OPERATING THE DEVICE 3.5 Winmate® Home Manager (WHM) Winmate® G-WIN Slim IP65 Panel PC (P-CAP) running on Android OS comes with preinstalled APP named Winmate Home Manager (WHM) which let the device manager to lock the launcher then the user can only use one application assigned by the device manager.
  • Page 41 USER MANUAL CHAPTER 3 OPERATING THE DEVICE - 41 -...
  • Page 42 USER MANUAL CHAPTER 3 OPERATING THE DEVICE Menu Description Home Manager Set which app you want to run up automatically after booting Password Manager Set the WHM password (Default password is “0000”). About Displays information about Home Manager 2. Go to “Application Selector”, and choose the app which you want to run up automatically after booting.
  • Page 43 USER MANUAL CHAPTER 3 OPERATING THE DEVICE 3. Go back to “Home Selector” and press “Clear and Reset Default Home”. 4. Select “Restrict Home” and “Always”, and then restart the computer to enable these settings. The system will automatically start the application which you selected and lock it. Any time user presses home key or back key;...

  • Page 44: How To Unlock Applications

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE 3.5.2 How to Unlock Applications Follow the instruction below to reset Home Manager. 1. If you want to reset the home manager, pull down the left side to open the status bar and open HomeManager. 2.

  • Page 45: How To Change Password

    USER MANUAL CHAPTER 3 OPERATING THE DEVICE Default password is “0000”. 3. Restart the system and you will go back to the normal Launcher. 3.5.3 How to Change Password To change the password: 1. Go to Password Manager and set your own password for this APP. 2.

  • Page 46: Chapter 4: Software Installation

    USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION SOFTWARE INSTALLATION This chapter contains software installation and update guides. - 46 -...

  • Page 47: Android Debug Bridge (Adb) Driver Installation

    USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION CHAPTER 4: SOFTWARE INSTALLATION This chapter contains software installation and updates guide. All the programming guides can be found in the driver CD included in the package. 4.1 Android Debug Bridge (ADB) Driver Installation IMPORTANT: ...

  • Page 48: Disabling Driver Signature On Windows 8

    USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION 4.1.1 Disabling Driver Signature on Windows 8 Step 1 Hold down the Windows key on your keyboard and press the letter C to open the Charm menu, and then click the gear icon (Settings). Step 2 Click Change PC Settings.
  • Page 49 USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION Step 3 Click General. Step 4 Under Advanced Startup, click Restart Now. NOTE: In Windows 8.1, the ‘Restart Now’ button has moved to ‘PC Setting -> Update & Recovery -> Recovery.’ Step 5 After restarting, click Troubleshoot. - 49 -...
  • Page 50 USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION Step 6 Click Advanced Options. Step 7 Click Windows Startup Settings. - 50 -...
  • Page 51 USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION Step 8 Click Restart. Step 9 After restarting your computer a second time, choose Disable driver signature enforcement from the list by typing the number 7 on your keyboard. Your computer will restart automatically. - 51 -...
  • Page 52 USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION Step 10 After restarting, you will be able to install the ADB drivers normally; however, Windows will display a warning message. When the warning appears, click Install this driver software anyway. If you are unfamiliar with installing drivers, check out our Installing ADB driver tutorial for a step by step guide.

  • Page 53: Adb Driver Installation

    USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION 4.1.2 ADB Driver Installation Step 1 Confirm whether the USB device was found by the system. Device Manager > 120A > Other devices > FA33_Taurus > Update Driver Software Step 2 In the Update Driver Software window choose Browse my computer for driver software.
  • Page 54 USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION Step 4 Select from your computer Step 5 In the Update driver software window, click show All Devices and then click Next. - 54 -...
  • Page 55 USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION Step 6 The system is looking for the driver folder. Click Browse. Step 7 Select the driver for your OS system. Click Open. - 55 -...
  • Page 56 USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION Step 8 Windows Security window will pop up. This message is used to confirm whether the user wants to install the driver. Select Install this driver software anyway to continue. Step 9 When the installation is successfully completed you will see Android ADB Interface driver in the Update Driver Software window.

  • Page 57: Installing Android Debug Bridge (Adb)

    USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION 4.2 Installing Android Debug Bridge (ADB) For detailed Android Debug Bridge (ADB) information refer to Android Developers Platform: http://developer.android.com/tools/help/adb.html Step 1 Decompress adb.zip. Open ADB terminal and move into the adb archive. ADB Terminal window Step 2 Connect the HMI to the computer via USB.

  • Page 58: Ota Update Guide

    USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION 4.3 OTA Update Guide OTA is a tool which can help you to update OS image. To receive Android OS image file contact our sales representatives. Once you get the image file follow the guideline below.
  • Page 59 USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION System shows OTA firmware related information. 3. Click Auto-check Update. The system is checking OTA File. It may take some time. - 59 -...
  • Page 60 USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION 4. Tap Update Image 5. Make sure the file founded by the system is image update file. Tap OK. - 60 -...
  • Page 61 USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION 6. Make sure the battery level is at least 50%. Tap OK. 7. Tap OK. IMPORTANT: Do not disconnect the power source! Do not remove the battery! - 61 -...

  • Page 62: Os Image Update Guide

    USER MANUAL CHAPTER 4 SOFTWARE INSTALLATION 8. After update the system will automatically restart. 4.4 OS Image Update Guide Download OS Image update guide from Winmate Download Center or Winmate File Share. Winmate Download Center: http://dc.winmate.com.tw/_downloadCenter/2016/Multitouch%20PPC/Download%20Image%2 0Tool%20User%20Guide.pdf Winmate File Share: https://winmate.box.com/v/FA33-OS-Image-Update-Guide...

  • Page 63: Chapter 5: Mounting

    USER MANUAL CHAPTER 5 MOUNTING MOUNTING This chapter provides step-by-step mounting guide for all available mounting options. - 63 -...

  • Page 64: Cable Mounting Considerations

    USER MANUAL CHAPTER 5 MOUNTING CHAPTER 5: MOUNTING This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. WARNING! / AVERTISSEMENT! Follow mounting instructions and use recommended mounting hardware to avoid the risk of injury. Suivez les instructions de montage et d'utilisation recommandé...

  • Page 65: Safety Precautions

    USER MANUAL CHAPTER 5 MOUNTING 5.2 Safety Precautions Observe the following common safety precautions before installing any electronic device: • Use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must be crossed make sure the wires are perpendicular at the intersection point.

  • Page 66: Vesa Mounting

    100x100 mm Mounting Instruction: Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate. - 66 -...

  • Page 67: Panel Mounting

    USER MANUAL CHAPTER 5 MOUNTING 5.3.2 Panel Mounting Panel Mount mounting solutions is suitable for many applications where Panel PC should be embedded. With this mounting solution flat surface leave no bezel in the front. Size Wall Cutout, mm Screw Hole Diameter, 7”...

  • Page 68: Chapter 6: Technical Support

    USER MANUAL CHAPTER 6 TECHNICAL SUPPORT TECHNICAL SUPPORT This chapter includes pathway to technical support. - 68 -...

  • Page 69: Software Developer Support

    This chapter includes pathway to technical support and Software Developing Kit (SDK). If any problem occurs fill in Problem Report Form enclosed and immediately contact us. 6.1 Software Developer Support Download software development documents from Winmate Download Center or Winmate File Portal. Item...

  • Page 70: Problem Report Form

    USER MANUAL CHAPTER 6 TECHNICAL SUPPORT 6.2 Problem Report Form G-WIN Slim IP65 (P-CAP) Customer name: Company: Tel.: Fax: E-mail: Date: Product Serial Number: ____________________________________________________ Problem Description: Please describe the problem as clearly as possible. Detailed description of the occurred problem will allow us to find the best solution to solve the problem as soon as possible.

  • Page 71: Appendix A: Product Specifications

    USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS Product Specifications This section includes product specifications. Appendix - 71 -...
  • Page 72 USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS APPENDIX A: PRODUCT SPECIFICATIONS Hardware Specifications Model Name W07FA3S- W10FA3S- R10FA3S- R12FA3S- R15FA3S- GSO1 GSH1 GST2 GSM2(HB) GSC3(HB) Display 7" TFT 10.1” TFT 10.4” Size/Type 12.1” TFT 15” TFT (Wide) (Wide) 1024 x 768 Resolution 1024 x 600 1024 x 600...
  • Page 73 USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS Input/ Output COM Port 1 x RS232/422/485 (M12 Type) USB Port 1 x USB 2.0 (M12 Type), 1 x USB OTG (On side) Ethernet 1 x 10/100/100 LAN (M12 Type) Speaker 1 x 1 Watt Speaker SD Slot MicroSD Card Slot Power Specifications...
  • Page 74 USER MANUAL APPENDIX A PRODUCT SPECIFICATIONS Software Support Item File Type Description Programming Guide For Android Programming Guide For Linux - 74 -...
  • Page 75 NOTES ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ _______________________________________________________________________...
  • Page 76 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, Taipei 241, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
