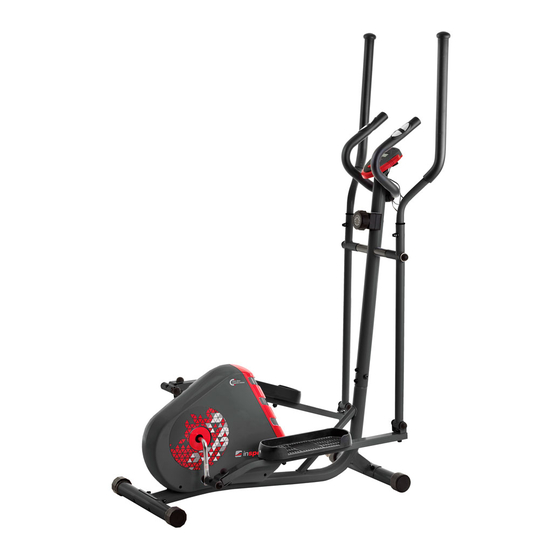

- Page 1 USER MANUAL - EN IN 7560 Elliptical inSPORTline Misouri (YK-BA433E) IMPORTANT! PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE ELLIPTICAL...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION......................3 EXPLODED VIEW ..............................4 PARTS LIST ................................5 ASSEMBLY ................................7 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ............11... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To guarantee your safety and health, please use this equipment correctly. Please read the information as below carefully before using this equipment. 1. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 4: Exploded View
EXPLODED VIEW 30 36... -
Page 5: Parts List
PARTS LIST Description Qty. Computer Middle handlebar Foam grip Φ23*5*445 End cap Φ25*16 Washer d6*φ12*1 Screw ST4*19 Handle pulse for tube Φ25 Screw M8*30*S6 Handle pulse wire Trunk wire 1 Computer wire Foam grip Φ26*5*510 13L/R Handlebar (L/R) End cap Φ28*32*Φ50 Screw M5*10 Bushing Φ32*Φ25*L83 Bolt M8*40*20*S14... - Page 6 Arc washer d6*Φ20*1.5*R30 Washer d8*Φ16*1.5 Nut M8*H7.5*S13 Wave washer d19*Φ25*0.3 Clamp cover End cap J40*25*15 Bolt M10*45*20*S14 Pedal Bolt M10*50*13*S17 45L/R Bolt Φ16*89*23*1/2*S8 Alloy wrapΦ28*4*Φ24*12*Φ16.1 Rear connector 48L/R Nut 1/2*20*H8*S19 Spring washer 1/2" Grommet End cap Φ50*45.5*64.5 Tension control Screw M8*16*S6 Alloy wrap Φ18*3*Φ14*7*Φ10.1 Connecting rod Washer d10*Φ20*2...
-
Page 7: Assembly
ASSEMBLY STEP 1: #19 M8*H16*S13 4pcs #28 M8*60*20*H5 4pcs #29 d8* 20*2*R30 4pcs Secure front stabilizer (27) and rear stabilizer (65) to main frame (59) with bolt (28), arc washer (29) and nut (19). - Page 8 STEP 2: Connect tension control (52) with tension wire (57); and connect trunk wire 1 (10) with trunk wire 2 (58). Secure handlebar post (64) to main frame (59) with screw (53) and arc washer (29).
- Page 9 STEP 3: Φ Φ Φ #60 S13 6PCS #61 S18 2PCS #62 S16 2PCS Secure swing rod (25L/R) to handlebar post (64) with bolt (24), spring washer (23) and washer (22); then attach end cap (60). Secure rear connector (47) to the crank of main frame (59) with bolt (45L/R) and wave washer (39); then secure it with spring washer (49) and nut (48L/R), attach end cap (61) (62);...
- Page 10 STEP 4: ¦ µ 19 18 19 18 Secure handlebar (13L/R) to swing rod (25L/R) with bolt (17), arc washer (18) and nut (19).
-
Page 11: Terms And Conditions Of Warranty, Warranty Claims
STEP 5: Secure middle handlebar (2) to handlebar post (64) with screw (8) and spring washer (23), then attach clamp cover (40). Connect trunk wire 1 (10) with computer wire (11); secure computer (1) to the computer holder of handlebar post (64) with screw (15);... - Page 12 The seller is SEVEN SPORT s.r.o. with its registered office in Borivojova Street 35/878, Prague 13000, Company Registration Number: 26847264, registered in the Trade Register at Regional Court in Prague, Section C, Insert No. 116888. According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer”...
- Page 13 +420 556 770 190, Mobile: +420 604 853 019, servis@insportline.cz Fax: +420 556 770 192, (Service +420 556 770 191) Web: www.insportline.cz, www.worker.cz, www.worker-moto.cz INSPORTLINE, s.r.o. Bratislavska 36, 911 05 Trencin, Slovakia CRN: 36311723, VAT ID: SK2020177082 Orders: +421(0)326 526 701, +421(0)917 649 192, objednavky@insportline.sk...
