5. Loosen the two screws securing the suction tube on the print block.
6. Lift the suction tube to secure it in a raised position.
7. Remove the two screws securing the covering of the roller waste collector
Be very careful to save the covering screws. These are special screws; if they
are lost, you need to order replacements.
8. Remove the covering by pulling it out, and then lower it.
DOC-06810 Rev. B

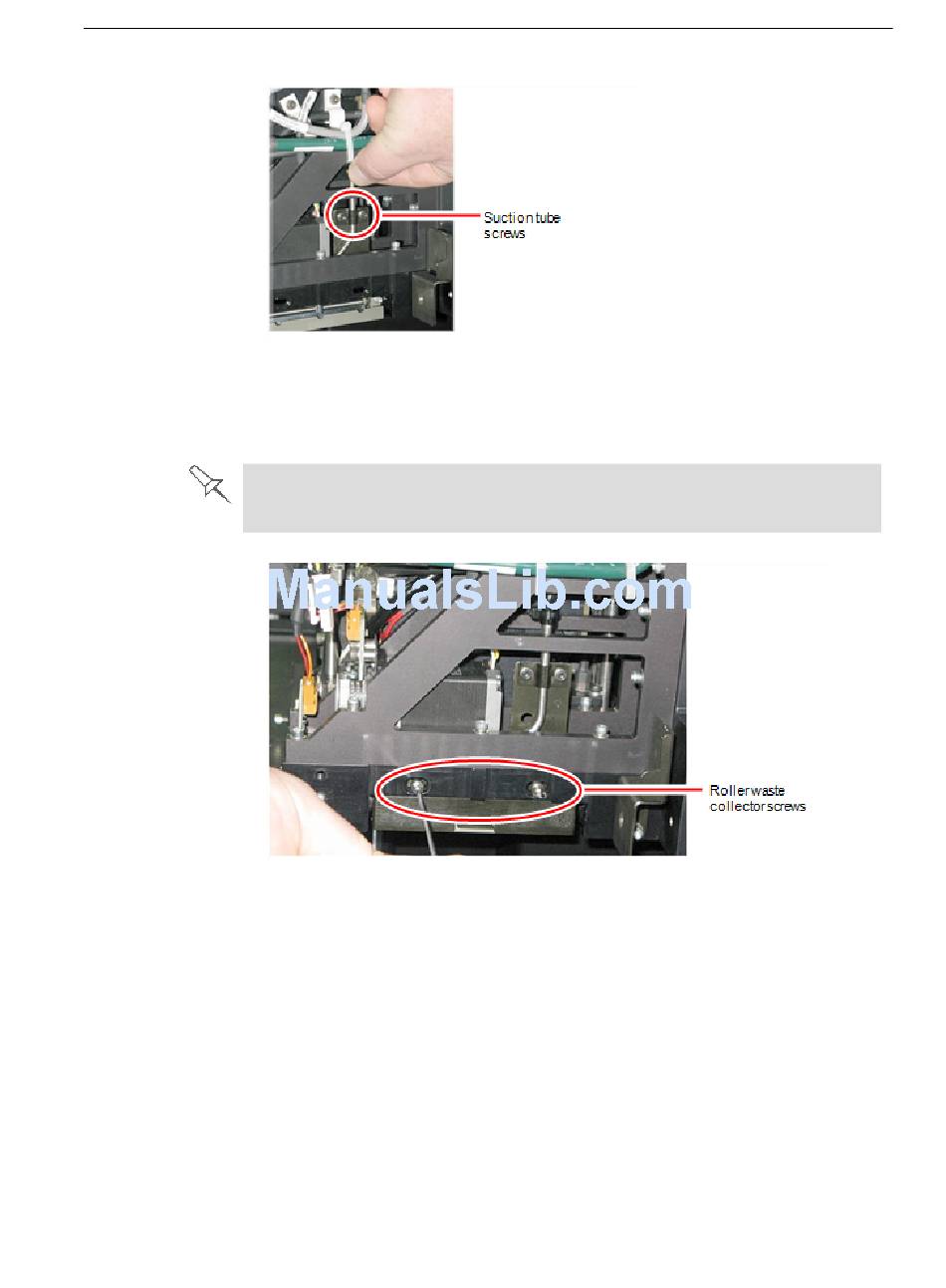

Figure 6-33 Lifting the suction tube
and remove it.
Figure 6-34 Removing the roller waste collector covering
